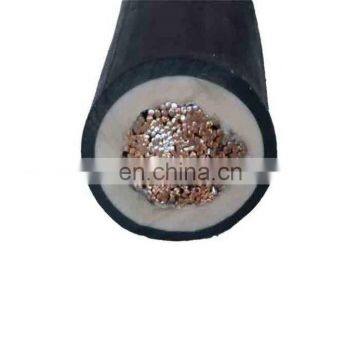

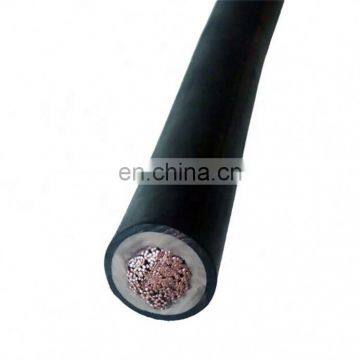

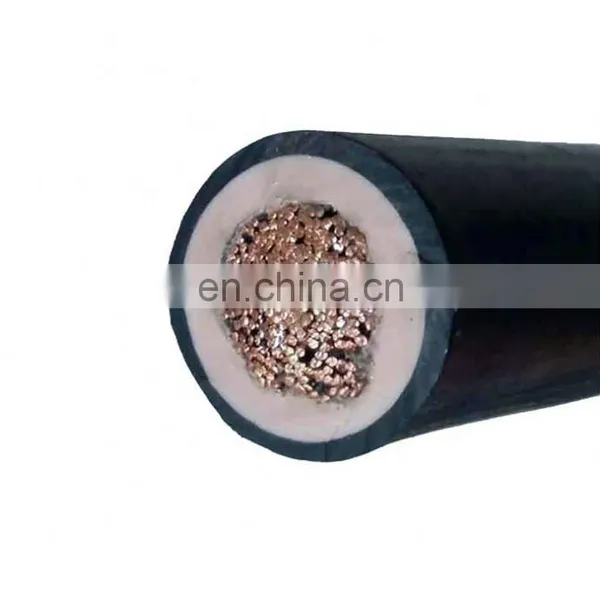

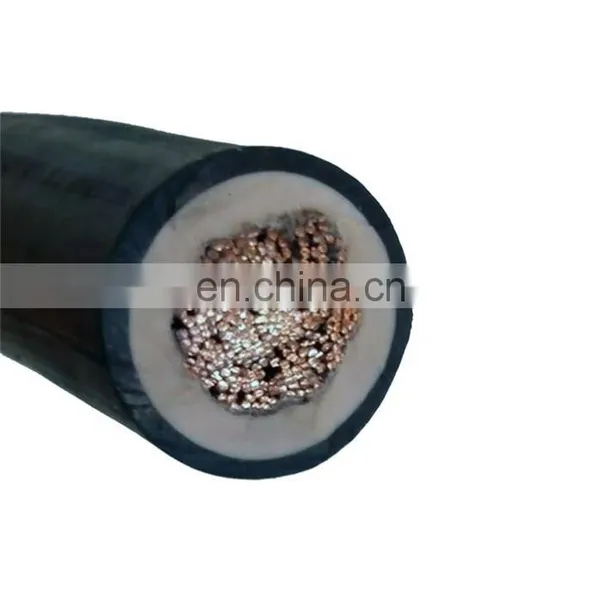

1000V 2000V tinned flexible copper conductor EPR insulation CPE sheath power cable
Diesel Locomotive Cable which is commonly known as DLO Cable is a flexible (tinned copper Class I, 24 AWG strands) rubber insulated (EPR—Ethylene propylene rubber) and rubber jacketed (CPE-chlorinated polyethylene) 2000 volt UL rated cable originally developed for use in the wiring of Diesel Locomotives. Diesel Locomotives use diesel engines to drive generators to power electric motors that turn the wheels, DLO cable is used to transmit the power from the generator to the electric drive motor. It is available from 14 AWG to 1111 KCMIL. It is also used in many other applications where a flexible, tough cable is needed due to tight bending radiuses.
DLO Cable in sizes 1/0 and larger is generally tray cable rated allowing for use in industrial facilities.
DLO Cable may be an allowable substitute for welding cable that is often miss-used when a flexible cable is needed (welding cable is generally only allowed on the secondary circuits of an electric welder—ie. welding leads).
DLO can be thought of as a very heavy duty welding cable due to the double jacket (or insulation and jacket) construction and will at times be used as welding cable especially for the high amperage systems.
Standard:
UL Listed
Accepted for listing by MSHA
RoHS Compliant
Constructre:
• Conductor:
10 AWG through 777.7 MCM stranded tinned annealed copper
• Insulation:
Premium-grade 90°C EP
• Jacket:
CPE, black
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB,IEC,DIN,ASTM, JIS, NF, AS/NZS,CSA,GOST and so on. We also have obtained ISO9001,ISO14001,OHSAS18001,UL,CE,KEMA, TUV,SABS,PBS,Bureau Veritas,Lloyd,GL,NK,KR certifications.
We have obtained UL certifications for TC cable, DLO cable,RHH/RHW/RHW-2,XHHW/XHHW-2/SIS, THHN,SER/SEU/USE, MV-90/MV-105,MC cable,AC cable,TECK 90,SOOW,Welding cable,Mining cable,type DG,PV cable,Shipboard cable and so on.
CNAS accredited national level laboratory.
1.25 years production experience and 16 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback. Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
