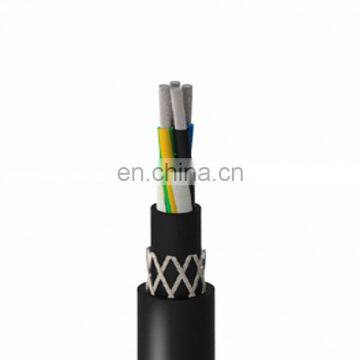

Medium voltage type (N)3GHSSHCH 6/10kv class 5 tinned copper conductor rubber insulation LSZH sheath mining cable
Application
The (N)3GHSSHCH cable offers a flexible power supply to Medium Voltage (MV) equipment with a black Low Smoke Zero Halogen (LSZH) inner (x2) and outer sheathing. Specifically designed for use in the Mining industry for tunnelling and underground applications, the LSZH sheathing reduces toxic fumes in the event of fire.
Generally to VDE 0250 Part 605, VDE 0295,BS EN/IEC 60332-1-2
Specifications
Voltage Rating (Uo/U) 3.6/6kV 6/10kV 8.7/15kV, 12/20kV
Test Voltage 3.6/6kV: 11kV 6/10kV: 17kV 8.7/15kV:24kv, 12/20kV:29kv
Maximum Short Circuit Temperature +250°C
Maximum Working Temperature on the Conductor +90°C
Ambient Temperature Fixed: -40°C to +80°C Flexed: +5°C to +80°C
Construction
| Conductor | Copper (Class 5) |
| Insulation | Rubber compound Type 3GI3 |
| Semi-conductive layers | Semi-conductive tape over the conductor, and inner and outer semi-conductive rubber layer on the insulation |
| Protective earth conductor | Individual copper screen |
| Control conductor | Tinned copper (Class 5) |
| Central filler | Rubber compound on a textile polyester support |
| First inner sheath | Low Smoke Zero Halogen (LSZH) compound |
| Monitoring conductor | Copper wire |
| Second inner sheath | LSZH compound |
| Armour | Steel wire braid over the second inner sheath |
| Outersheath | LSZH |
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB,IEC,DIN,ASTM, JIS, NF, AS/NZS,CSA,GOST and so on. We also have obtained ISO9001,ISO14001,OHSAS18001,UL,CE,KEMA, TUV,SABS,PBS,Bureau Veritas,Lloyd,GL,NK,KR certifications.
We have obtained UL certifications for TC cable, DLO cable,RHH/RHW/RHW-2,XHHW/XHHW-2/SIS, THHN,SER/SEU/USE, MV-90/MV-105,MC cable,AC cable,TECK 90,SOOW,Welding cable,Mining cable,type DG,PV cable,Shipboard cable and so on.
CNAS accredited national level laboratory.
1.25 years production experience and 16 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback. Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7.Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
1.When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in your e-mail so that we will regard your inquiry priority.
2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
