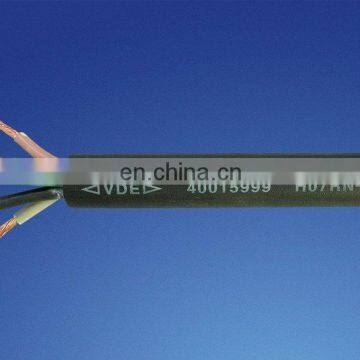

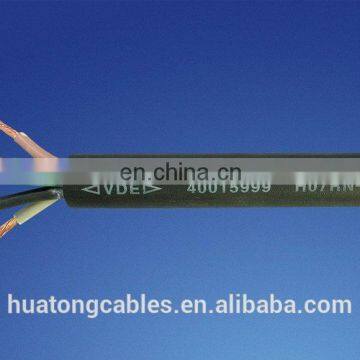

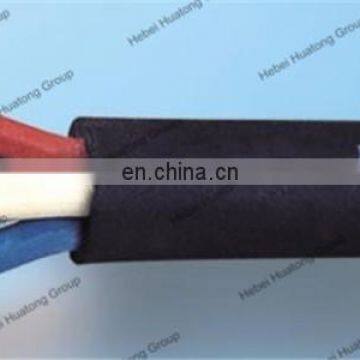

CE 3 core flexible rubber cable HO7RN-F

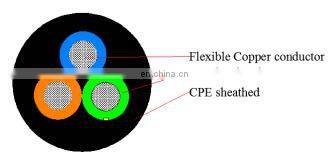

Construction:
| Conductor | Copper,stranded (tinned copper optional) |
| Insulation | EPR (other rubber optional) |
| sheath | CPE |
| Rated voltage | 450/750v |

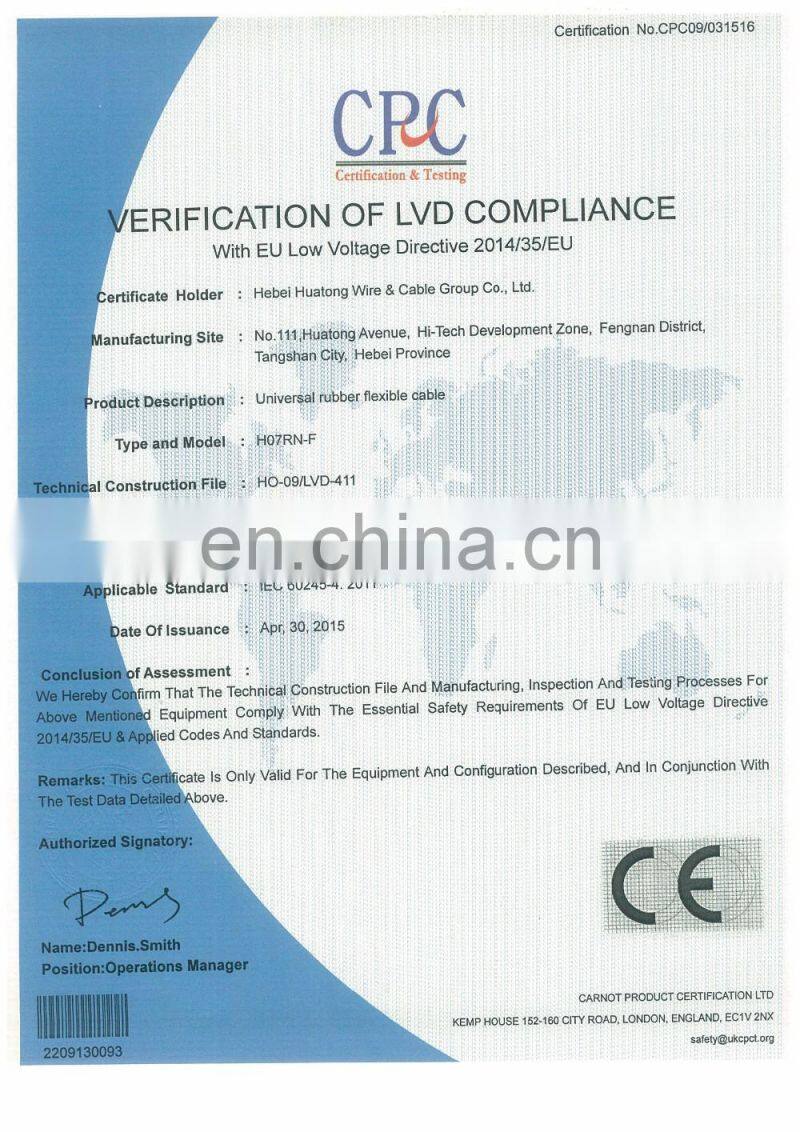

| certification | CE |
| Stanard | IEC60245 ( VDE, ROHS, REACH,PAHS is optional) |
| NO.OF CORE | 3 (1-5 optional) |
| Performance | waterproof,oil proof,anti UV,flame retardant |
| Rated temperature | -40°C~90°C |
HAR Code |
IEC |
Description |
Voltage Design |
Cores |
H05RR-F |
60245IEC 53(YZ)/YZ |
Ordinary rubber sheathed cord |
300/500V |
2~6 |
H05RN-F |
60245IEC 57(YZW)/YZW |
Ordinary polychloroprene or other equivalent synthetic elastomer sheathed cord |
300/500V |
2~6 |
H07RN-F |
60245IEC 66(YCW)/YC |
Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable |
450/750V |
1~5, 3+1/3+2/4+1 |
H01N2-D |
60245IEC 81(YH) |
Rubber sheathed arc-welding electrode cable |
100/100V |
10-120 |
|
60245IEC 82(YHF) |
Polychloroprene or other equivalent synthetic elastomer sheathed arc-welding electrode cable |
100/100V |
10-120 |

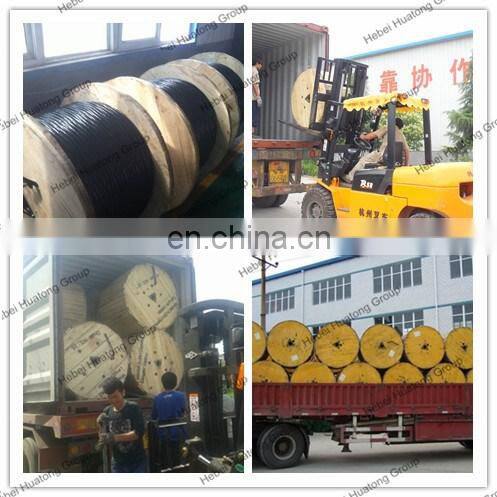

Maximize meet customer packaging requirements, and provide the best packaging solutions as far as possible.
For the first time arange production after customer's deposit .Rapidly delivery and feedback in the shortest time
Company Introduction
HeBei huatong wires&cables Group Co.,ltd.

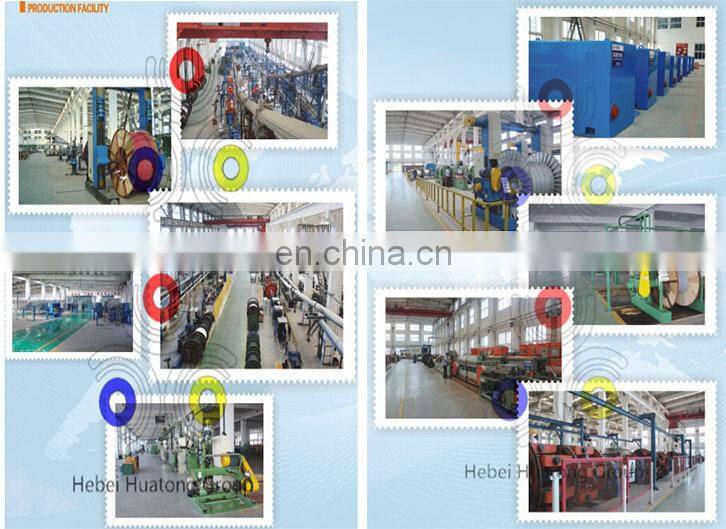

which founded in1993,covers 15,000 square meters.With 400 sets of manufacturing machines and 200 pieces of equipment available for testing and inspecting,the company's annual mannufacturi-ng capacity has reached 450 minllionUS dollars.
The enterprise has adapted international a-dvanced mannagement standards by fully implementing the accreditation of ISO9001Quality con-trol system, ISO1004 Envrionment management system,and OHSAS18001 Occupational health and safety management system.
Huatong's products which consist of 15 series of cables and tens of thousands of specifications are widely used in different key national projects and industries .Our products are well liked by domestic and international customers that they have been exported to various countries and areas including the US,Netherlands, Italy,Russia,UK,Australia,Ethiopia,Ghaha,congo,Middle East ,and Southeast Asia.
Huatong is one of the most comprehensive and large-scale wire and cable enterprises in China
Huatong's products have got recognized from authority Laboratories or committees over the word such as:BV,UL,CE,TUV,KEMA,PSB,SABS,LR,GL and so on.
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week.
Dedication makes profession
