35mm2 50mm2 70mm2 double rubber sheathed welding cable
- 500 Kilometer / Kilometers per Month
- Tianjin port Qing dao port Shang hai port
- T/T Credit Card
- Heavy duty flexible cable electrical cable wire 10mm made in China
- halogen free high thermal stress silicone rubber cable
- Heavy duty flexible cable CU/EPR/CPE cable for moving equipment
- 450/750V 4mm2 6mm2 10mm2 Heavy duty flexible cable CU/EPR/CPE rubber sheath cable for moving equipment
- Hot products heavy duty flexible cable green and yellow core wire 2 core 3 core H07RN-F
- VDE neoprene rubber flexible cable
Product Details
Brand Name: | RNE DA | Place of Origin: | Hebei, China | Model Number: | YH |
Type: | Low Voltage | Insulation Material: | Rubber | ||
Jacket: | Rubber | Conductor Material: | Copper |
Product Description

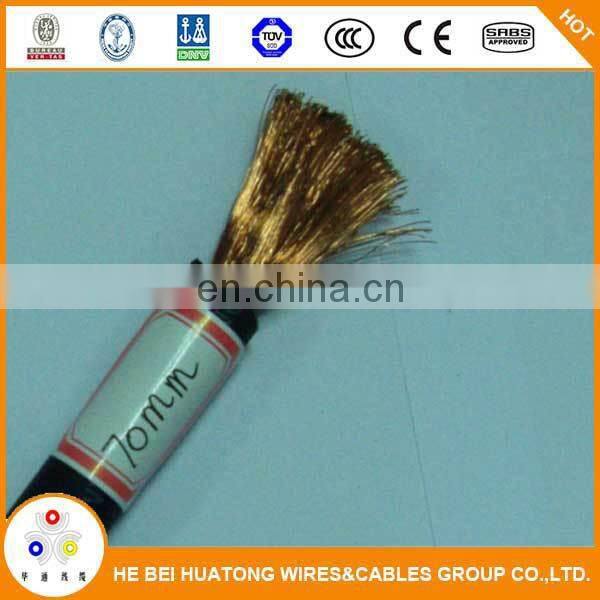

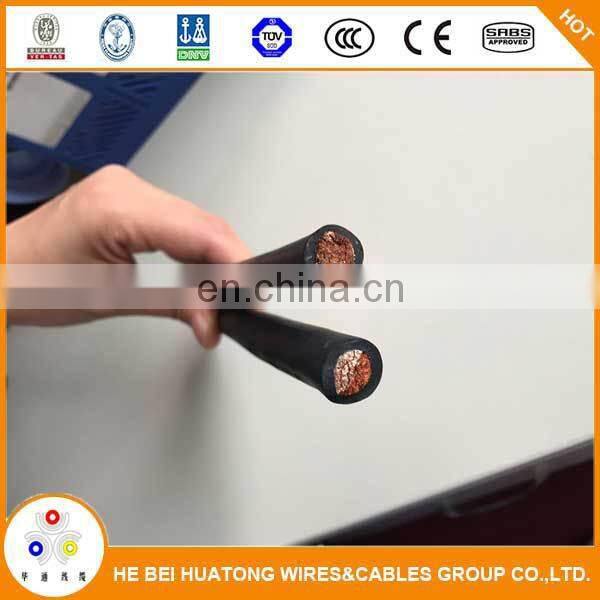

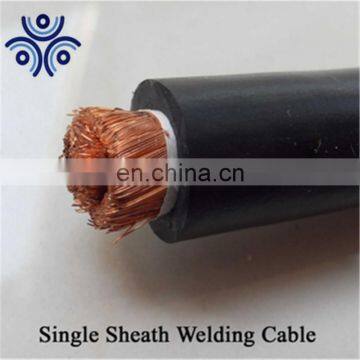

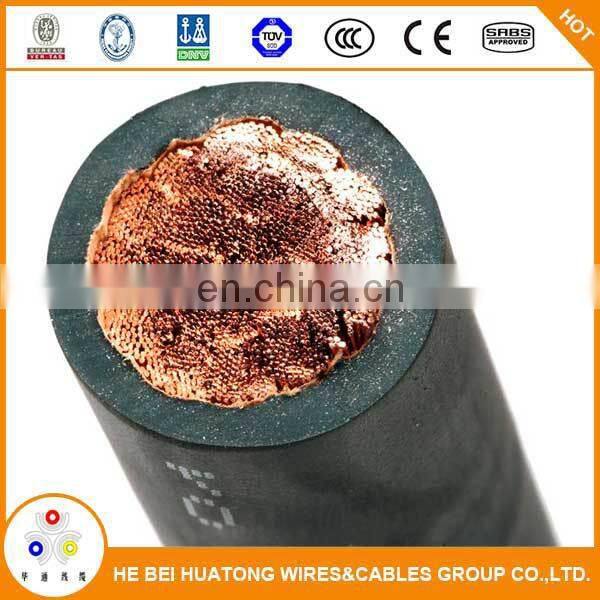

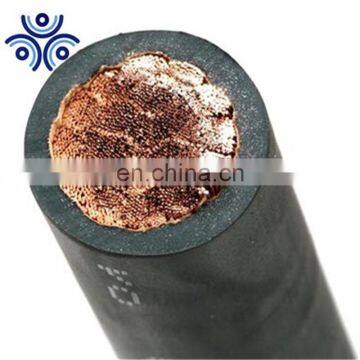

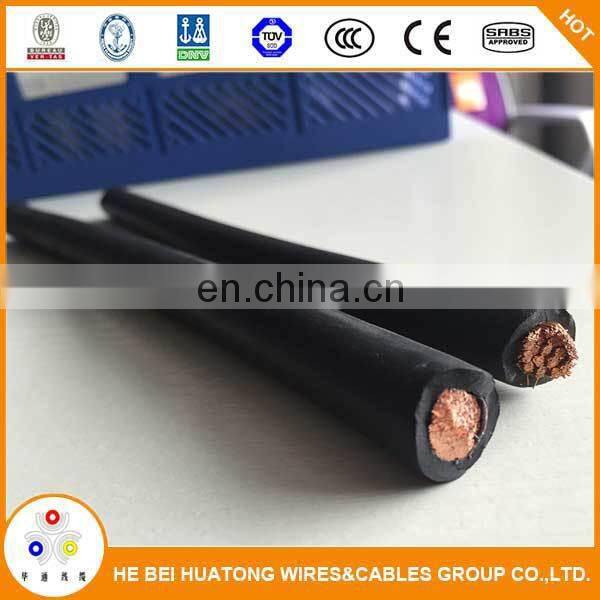

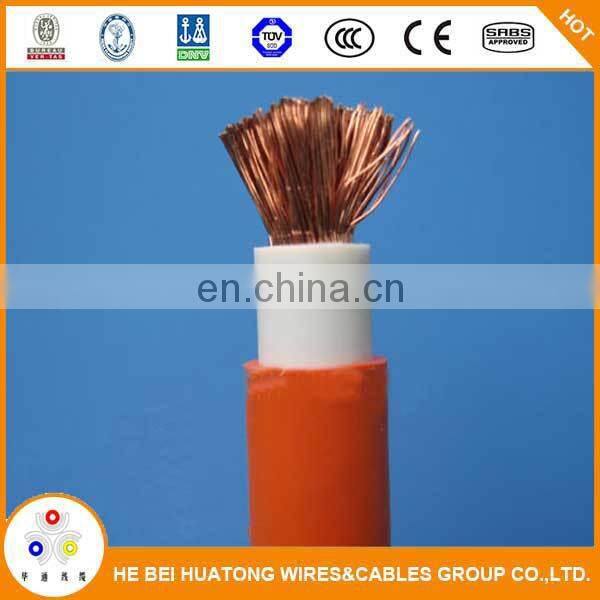

35mm2 50mm2 70mm2 double rubber sheathed welding cable
35mm2 50mm2 70mm2 double rubber sheathed welding cable
1.Standard of 70mm2 50mm2 35mm2 welding cable
the welding cable can be produced according to the standard 245 IEC 81,ICEA S-75-381
2.Specific Property for Using
(1).The cable can be used in the connectors of electric weld and pliers of the electrical welding whose toward earth voltage of the low voltage is not more than AC 200 V and the pulsant DC peak value is 400V.
(2).The long-time permissible working temperature of cable is not more than 65.
3.Name and IEC Standard

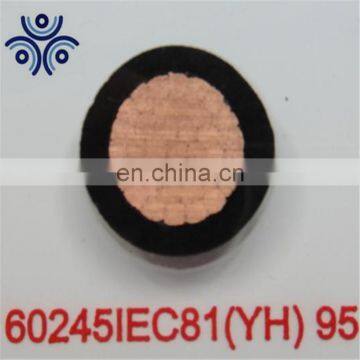

(1).Rubber Sheathed Welding Cable 245 IEC 81
(2).Rubber Sheathed Welding Cable 245 IEC 82,which is made of chloroperene or the composite stretchy materials.
4. Conductor Materials: Copper, Tinned Copper
5. Jacket: Rubber,Cpe, Neoprene,Epr
6. Applications: For Welding Machines and so on
7.The general data of the cable 245 IEC 81 and 245 IEC 82
Conductor Nominal Section (mm2) | Conductive Core | Thickness of Section Sheath (mm) | Average Outer Diameter (mm) | 20oC Conductor Resistance ≤(Ω/km) | Reference Weight (kg/km) | ||
Number/Diameter of Core(mm) | Min | Max | YH | YHF | |||
10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 146 | 153.51 |
16 | 513/0.20 | 2.0 | 9.2 | 11.5 | 1.16 | 218.9 | 230.44 |
25 | 798/0.20 | 2.0 | 10.5 | 13.0 | 0.758 | 316.6 | 331.15 |
35 | 1121/0.20 | 2.0 | 11.5 | 14.5 | 0.536 | 426 | 439.87 |
50 | 1596/0.20 | 2.2 | 13.5 | 17.0 | 0.379 | 592.47 | 610.55 |
70 | 2214/0.20 | 2.4 | 15.0 | 19.5 | 0.268 | 790 | 817.52 |
95 | 2997/0.20 | 2.6 | 17.0 | 22.0 | 0.198 | 1066.17 | 1102.97 |
120 | 1702/0.30 | 2.8 | 19.0 | 24.0 | 0.161 | 1348.25 | 1392.55 |
150 | 2135/0.30 | 3.0 | 21.0 | 27.0 | 0.129 | 1678.5 | 1698.72 |
185 | 1443/0.40 | 3.2 | 22.0 | 29.0 | 0.106 | 1983.8 | 2020.74 |
25mm2 rubber sheathed flexible copper welding cable:
CE certificate 25mm2 flexible copper rubber welding cable
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.
Packaging &shipping of 70mm2 electric copper rubber sheathed welding cable:
Soft packing,100meters/roll or as your requirment.
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight
charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7
days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is
delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months
before the date you would like to get the products at your country.
