China Rubber Insulated Elevator Parts-flat Cable/TVVBPG 24X0.75
- Tianjin Qingdao or other main port
- T/T Credit Card
You May Like
-
70mm2 Coal Cutting Machine Rubber Shielded Rubber Flexible Mining Cables
-
High Quality Rubber Insulated Fire Resistance Flexible Mining Cable
-
300/500v Light-type Rubber Sheathed Flexible Silicone Cable
-
Hebei China Factory Hard Drive Types Flexible Rubber Mines Cables
-
Rubber/TPE/Epr Sheathed Welding Cable 25mm2, 35mm2, 50mm2 (YH YHF)
-
450/750V 3x16mm2 Heavy-duty Rubber Insulated Flexible Cable H07rn-f
Product Details
| Brand Name | RNEDA | Place of Origin | Hebei, China | |
| Model Number | TVVB/YT/YTB/YTF | Type | Low Voltage | |
| Insulation Material | Rubber | |||
| Jacket | Rubber | Conductor Material | Copper |
Product Description




Product Description

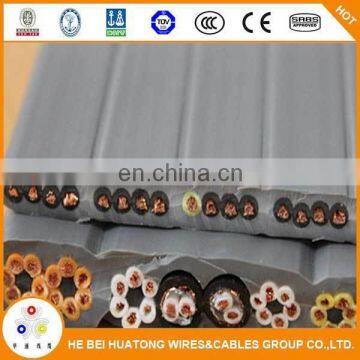

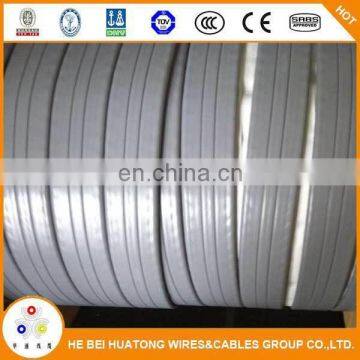

China rubber insulated elevator parts-flat cable/TVVBPG 24X0.75
1. lift cable Description
1) Rated voltage: 1000V and below
2) Insulation and sheath material: PVC, NBR, TPU, TPE
3) Max. conductor working temperature: PVC (70 °c), NBR (70 °c), TPE (90 °c), TPU (180°c)
4) Conductor: class 5, 6 copper, tinned or plain
5) Sectional area: 0.75-95mm2
6) No. of cores: 2~48
7) Sheath: rubber
8) Max. conductor DC resistance at 20°c:
| Sectional area (mm2) | 2.5 | 4 | 6 | 10 | 16 | 25 | 35 | 50 | 70 | 95 |
| Tinned copper (Ω/km) | 8.21 | 5.09 | 3.39 | 1.95 | 1.24 | 0.795 | 0.565 | 0.393 | 0.277 | 0.21 |
| Plain copper (Ω/km) | 7.98 | 4.95 | 3.30 | 1.91 | 1.21 | 0.78 | 0.554 | 0.386 | 0.272 | 0.206 |
Note: this product can have different working temperatures based on different insulation and sheath material.
2.lift cable Application
Flexible flat cable is used for crane, submersible pump, elevators of rated voltage 1kV and below. The product can be used in very harsh environment by adopting insulation and sheath of of different material.

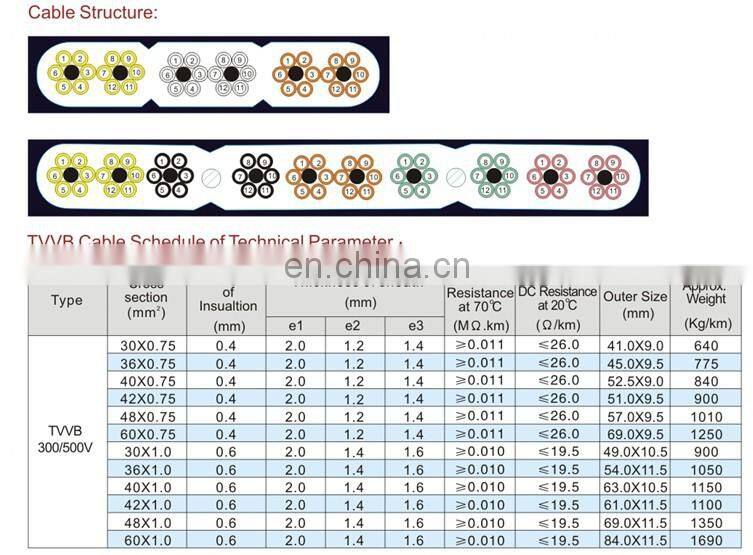

3.TVVB cable schedule of technical parameter
type | conductor | insulated | sheathed | Conductor DC resistance at 20 ℃ (Ω/km, 20℃) | Insulation resistance at 70 ℃(MΩ.km, 70℃) |
Cores crosssection(N×mm) | thickness | diameter | |||
(mm) | (mm) |
|
| ||
TVVB | 30×0.75 | 0.4 | 9.0×53.0 | 26 | 0.011 |
36×0.75 | 0.4 | 9.5×56.0 | 26 | 0.011 | |
40×0.75 | 0.4 | 9.0×64.0 | 26 | 0.011 | |
42×0.75 | 0.4 | 9.5×63.0 | 26 | 0.011 | |
48×0.75 | 0.4 | 9.5×69.0 | 26 | 0.011 | |
60×0.75 | 0.4 | 9.5×81.0 | 26 | 0.011 | |
30×1.0 | 0.6 | 10.5×60.5 | 19.5 | 0.01 | |
36×1.0 | 0.6 | 11.5×65.5 | 19.5 | 0.01 | |
40×1.0 | 0.6 | 10.5×74.0 | 19.5 | 0.01 | |
42×1.0 | 0.6 | 11.5×72.0 | 19.5 | 0.01 | |
48×1.0 | 0.6 | 11.5×80.0 | 19.5 | 0.01 | |
60×1.0 | 0.6 | 11.5×95.0 | 19.5 | 0.01 |

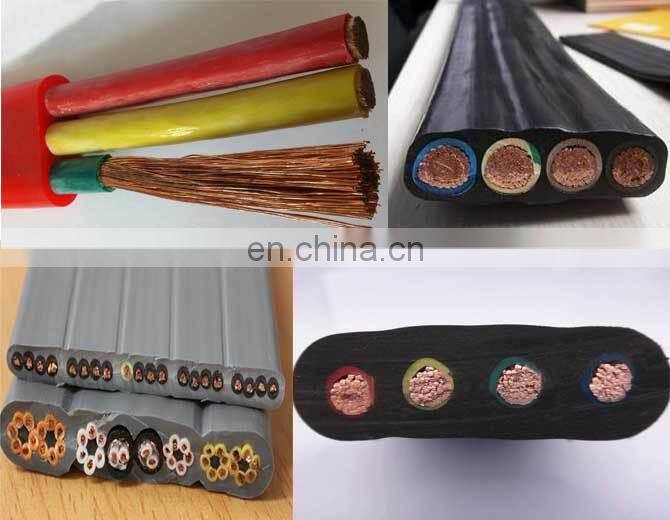

Details Show
Shipping & Packaging

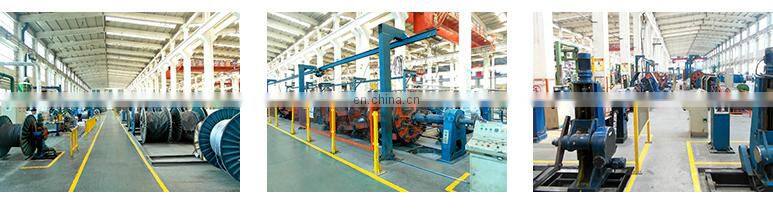

Company Introduction
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
Certification
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.
FAQ
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
