UL Certificated 600V Type TTU Cable

TOP TEN CABLE MANUFACTURER IN CHINA
LARGEST CABLE MANUFACTUER IN NORTH CHINA
ANNUAL EXPORT VOLUME EXCEED 200MILLION USD
WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS
WITH TUV TYPE TESTING REPORT
WIDE PRODUCTS RANGE
ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS
CNAS APPROVAL LABROTARY

Application

The type TTU are used for power and lighting circuits in industrial and commercial facilities, they are specially suitable for outdoor facilities or directly buried, just as it is specified in the National Electrical Code. This type of conductor can be used in dry and wet places, its maximum temperature of operation is 75 ºC and its voltage of service for all the applications it is 2000 V.

 Specification

The type TTU meets the following specifications and standards:

• ASTM B-3 :Copper Annealed or Soft Wires.
• ASTM B-8 :Copper Stranded Conductors in Concentric Layers, Hard, Semi-hard or Soft.
• NEMA WC-5 :Wires and Cables Insulated with Thermoplastic Material
  (ICEA S-61-402) for Transmission and Distribution of Electric Power.

Besides all the requirements of the National Electrical Code.

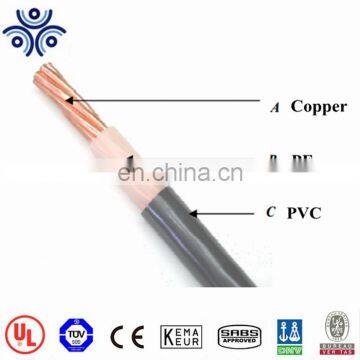

Construction

The conductors type TTU are stranded and they are built with soft temper copper, they are also insulated with an uniform layer of Polyethylene (PE) thermoplastic material resistant to the moisture and the heat, over which it is applied a protector coating of Chloride of Polyvinyl (PVC). They are always supplied in black color and with different packaging.

 Detail of the Cable

Conductor:Copper
Insulation :Thermoplastic Material, PE - 75 °C
Jacket :Thermoplastic Material, PVC

AVAILABLE COLORS:
Cables (Sizes from 8 AWG 8 to 1000 MCM): Black.
HIGHER SIZES (FROM 750 MCM UNTIL 1.000 MCM), UNDER REQUIREMENT.

1.24 years production experience and 14 years export experience .

2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc

3.OEM service available based on official & legal authorization.

4.Strict quality control system.

5.Rapid delivery and feedback  Faster lead time than our competitors.

6.Excellent quality with reasonable price.

7.Strong technical support (technical data, drawing, etc.)

8.Professional teamwork service for you actively.

9.Stock available, Free sample is available.

HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,

KEMA,CE and many other certifications.
