Home > Products > PVC POWER CABLES > OEM service 600/1000V 4 core PVC insulated steel tape armoured power cable with high popularity in market by Chinese manufacture

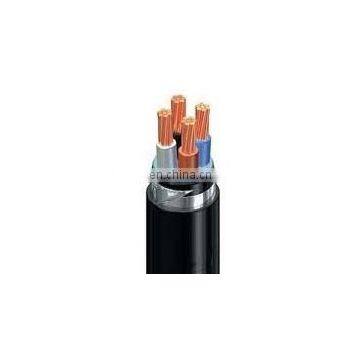

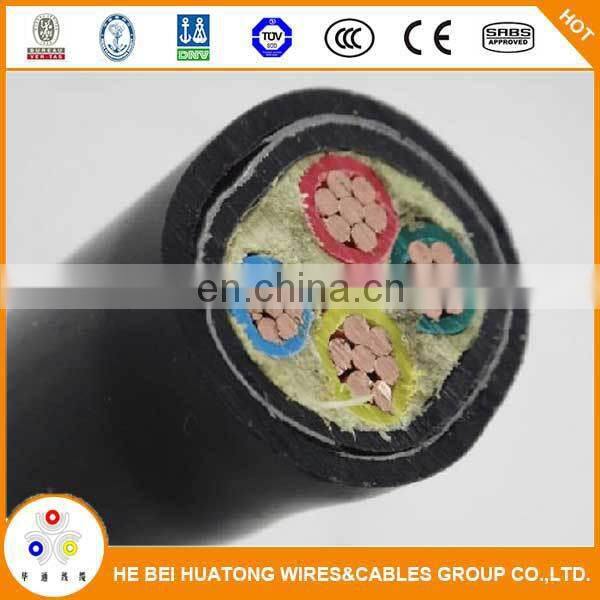

OEM service 600/1000V 4 core PVC insulated steel tape armoured power cable with high popularity in market by Chinese manufacture
- 1000000 Meter / Meters per Month
- Tianjin Qingdao or other main port
- T/T Credit Card
- 0.6/1kV 3 core 16mm 95mm 120mm CU/AL conductor PVC insulated power cable
- underground armoured 4 core 4mm 6mm 120mm copper conductor pvc electric power cable
- 4 core 25mm 35mm 95mm steel wire armoured pvc insulated and sheathed power cable
- 4 core AL/PVC/SWA /PVC 3600V power cable with high popularity in market by Chinese manufacturer
- CE listed 3 core Cu/PVC/SWA /PVC 1200V power cable with high popularity in market by Chinese manufacturer
- Multi Strand PVC Flexible Cable 240mm 4 Core Copper Core PVC Insulated PVC Power Cable
Product Details
Brand Name: | RNEDA | Place of Origin: | Hebei, China | Model Number: | VV22 |
Type: | Low Voltage | Application: | Underground | Insulation Material: | PVC |
Jacket: | PVC | Conductor Material: | Copper |
Product Description
OEM service 600/1000V 4 core PVC insulated steel tape armoured power cable with high popularity in market by Chinese manufacture

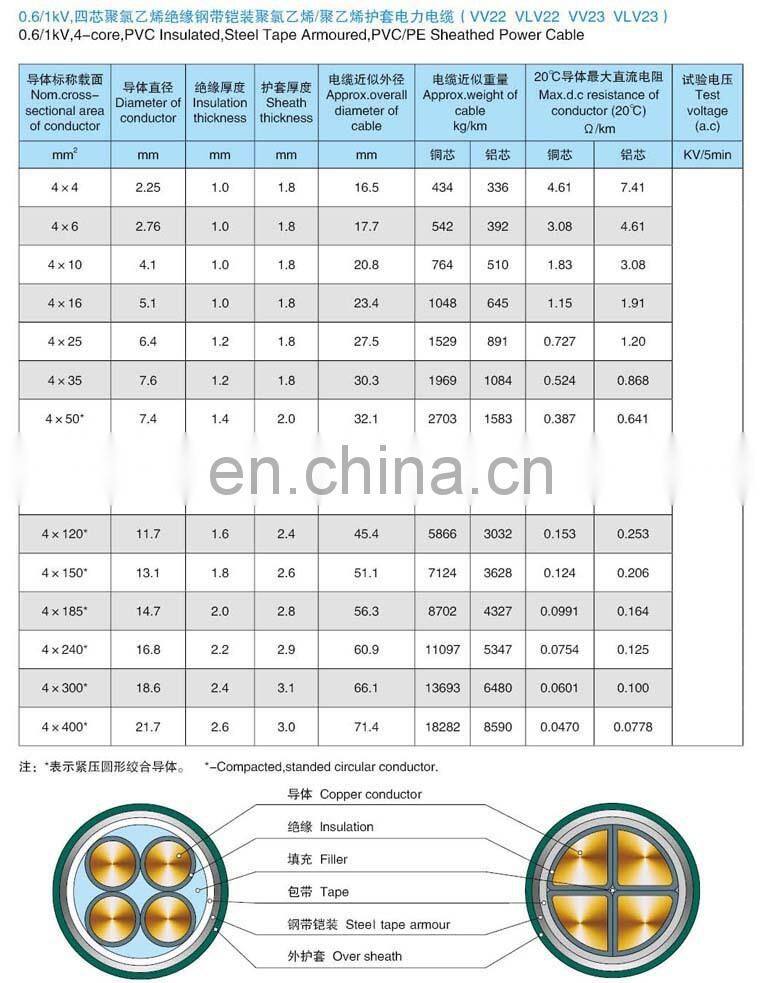

0.6/1KV PVC Insulated power cable:
1 Applicant:
The products can be produced and provided according to Chinese standard GB/T12706-2002(equivalent to IEC 60505).The factory can also manufacture the products that are based on British Standard(BS) and other standards.In addition,under the requirement of customers we can design and manufacture the products that have special performance.The products are used in fixed laying on transmission and distribution electrical lines of 50 HZ AC rated voltage up to 6 kV.
2 Specific Property for Using
1.The long-time permissible working temperature of cable conductive core is not more than 70℃.
2.During short circuit(max permanent time is not more than 5 seconds),the max temperature of cable conductor is not more than 165℃.
3.The difference level of laying cable is not restricted.When laying the cable,ambient temperature is not lower than 0℃.
4.They have good chemical stability,and properties of acid resistance,alkali resistance,salt resistance,oil resistance,solvent resistance and flame resistance.
5.Light weight,good bending property and easy installation and maintenance
3.1Type and Name:
Type | Name |
VV VLV | Copper(aluminum)Conductor,PVC insulated and Sheathed Power Cable |
VY VLY | Copper(aluminum)Conductor,PVC insulated,PE Sheathed Power Cable |
VV22VLV22 | Copper(aluminum)Conductor,PVC insulated,Steel-tape Armoured,PVC Sheathed Power Cable |
VV23VLV23 | Copper(aluminum)Conductor,PVC insulated,Steel-tape Armoured,PE Sheathed Power Cable |
VV32 VLV32 | Copper(aluminum)Conductor,PVC insulated,Fine Steel-wire Armoured,PVC Sheathed Power Cable |
VV33VLV33 | Copper(aluminum)Conductor,PVC insulated,PE Sheathed Power Cable |
VV42VLV42 | Copper(aluminum)Conductor,PVC insulated,Thick Steel-wire Armoured,PVC Sheathed Power Cable |
VV43VLV43 | Copper(aluminum)Conductor,PVC insulated,Thick Steel-wire Armoured,PE Sheathed Power Cable |
3.2 Nominal thickness of insulation
| 1 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800 1000 | |||
0.6/1 | 0.8 0.8 0.8 1 1 1 1 1.2 1.2 1.4 1.4 1.6 1.6 1.8 2.0 2.2 2.4 2.6 2.8 2.8 2.8 3.0 | |||
3.6/6 | 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4 |
3.3 DC resistance of conductor
Nominal | at 20℃,DC resistance is | Nominal | at 20℃,DC resistance is | Nominal | at 20℃,DC resistance is | |||
Copper Core | Aluminum Core | Copper Core | Aluminum Core | Copper Core | Aluminum Core | |||
1.5 | 12.1 | 18.1 | 35 | 0.524 | 0.868 | 240 | 0.0754 | 0.125 |
2.5 | 7.41 | 12.1 | 50 | 0.387 | 0.641 | 300 | 0.0601 | 0.100 |
4 | 4.61 | 7.41 | 70 | 0.268 | 0.443 | 400 | 0.0470 | 0.0778 |
6 | 3.08 | 4.61 | 95 | 0.193 | 0.320 | 500 | 0.0366 | 0.0605 |
10 | 1.83 | 3.08 | 120 | 0.153 | 0.253 | 630 | 0.0283 | 0.0469 |
16 | 1.15 | 1.91 | 150 | 0.124 | 0.206 | 800 | 0.0221 | 0.0369 |
25 | 0.727 | 1.20 | 185 | 0.0991 | 0.164 | 1000 | 0.0176 | 0.0291 |
3.4 Insulation Resistance
Test item | PVC insulated Cable | XLPE insulated Power Cable | |
0.6/1KV | 3.6/6KV | ||
volume resistivity (ρΩ.cm) | 1013 | 1014 | - |
Ki insulation resistivity constant(MΩ.km) | 36.7 | 367 | - |
3.5 insulation resistance
UO/U(KV) | Us(KV) | T(min |
0.6/1 | 3.5 | 5 |
3.6/6 | 12.5 | 5 |
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese
company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
Certification
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
