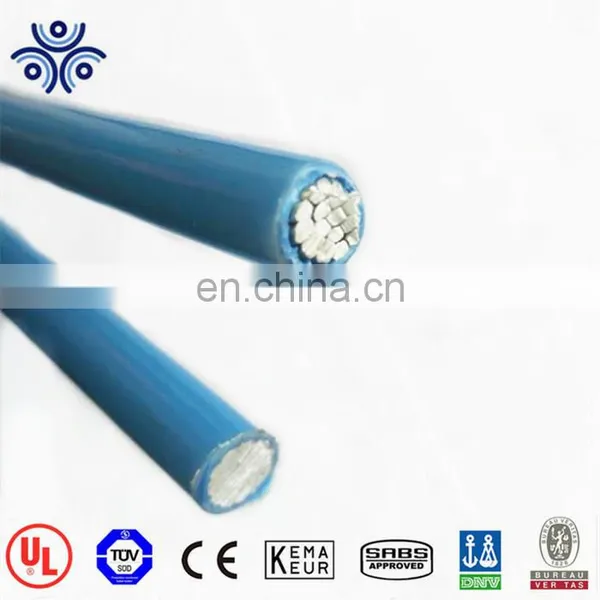

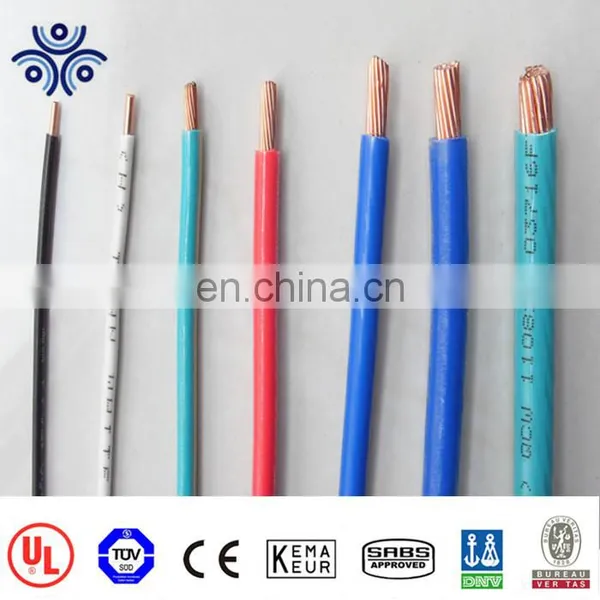

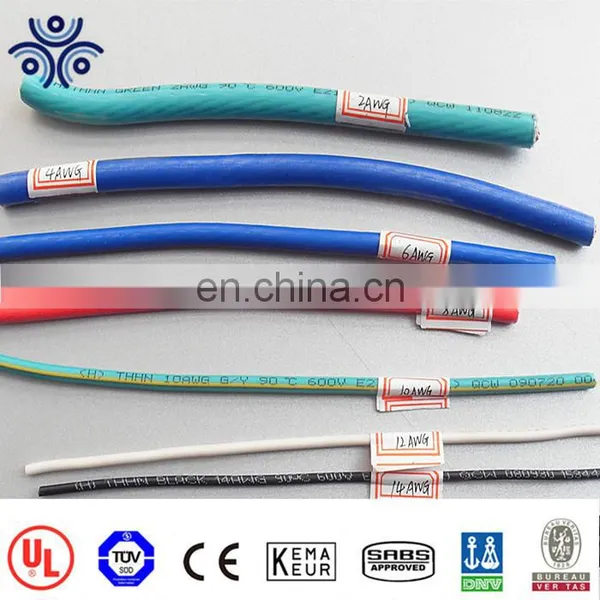

600V THHN 200mm2 copper wire stranded cable in philippines
THHN or THWN-2 conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.
When used as type THHN, conductor is suitable for use in dry locations at temperatures not to exceed 90°C.
When used as type THWN, conductor is suitable for use at temperatures not to exceed 90°C, dry locations or 75°C wet locations or not to exceed 75°C when exposed to oil or coolant. When used as type THWN-2, conductor is suitable for use in wet and dry locations at temperatures not to exceed 90°C or not to exceed 75°C when exposed to oil or coolant. Conductor temperatures not to exceed 105°C in dry locations when rated AWM and used as appliance wiring material. Voltage rating for all applications is 600 volts.
SPECIFICATIONS
THHN or THWN-2 comply with:
ASTM - B3, B8 (7,19, 37, 61 Strands), B 787 (19 Wire Combination Unilay Strand) Technical Compliances
- UL 83 - Thermoplastic-Insulated Wires and Cables
- CSA C22.2 No. 75-03
- UL 1063 (MTW) - Machine-Tool Wires and Cables (stranded cables only)
- UL 758 (AWM)
- ICEA S-95-658/NEMA WC 70
Cable Construction

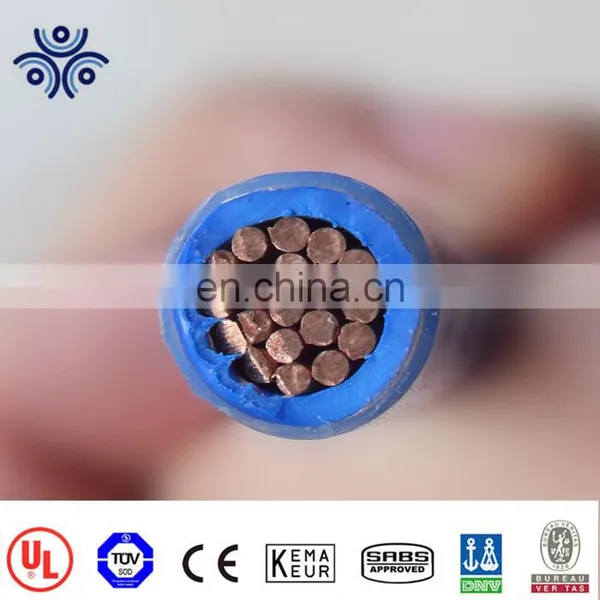

Conductor:
Soft annealed bare copper, Class B stranding per ASTM B8
Insulation:
Tough, heat and moisture resistant Polyvinyl chloride (PVC) insulation over which a nylon jacket is applied.
Color:option
|
G OR KCMIL |
STRAND |
NOMINAL INSULATION THICKNESS INCH/MM |
NOMINAL JACKET THICKNESS INCH/MM |
NOMINAL OVERALL DIAMETER INCH/MM |
CABLE WEIGHT LBS/KFT KG/KM |
||||
| 14 | 1 | 0.015 | 0.38 | 0.004 | 0.10 | 0.11 | 2.79 | 15 | 22 |
| 12 | 1 | 0.015 | 0.38 | 0.004 | 0.10 | 0.12 | 3.05 | 23 | 34 |
| 10 | 1 | 0.020 | 0.51 | 0.004 | 0.10 | 0.15 | 3.81 | 37 | 54 |
| 14 | 19 | 0.015 | 0.38 | 0.004 | 0.10 | 0.11 | 2.79 | 16 | 24 |
| 12 | 19 | 0.015 | 0.38 | 0.004 | 0.10 | 0.13 | 3.30 | 24 | 36 |
| 10 | 19 | 0.020 | 0.51 | 0.004 | 0.10 | 0.17 | 4.32 | 39 | 58 |
| 8 | 19 | 0.030 | 0.76 | 0.005 | 0.13 | 0.22 | 5.59 | 63 | 94 |
| 6 | 19 | 0.030 | 0.76 | 0.005 | 0.13 | 0.26 | 6.60 | 98 | 145 |
| 4 | 19 | 0.040 | 1.01 | 0.006 | 0.15 | 0.33 | 8.38 | 157 | 234 |
| 3 | 19 | 0.040 | 1.01 | 0.006 | 0.15 | 0.36 | 9.14 | 193 | 287 |
| 2 | 19 | 0.040 | 1.01 | 0.006 | 0.15 | 0.39 | 9.91 | 240 | 357 |
| 1 | 19 | 0.050 | 1.27 | 0.007 | 0.18 | 0.43 | 10.92 | 300 | 446 |
| 1/0 | 19 | 0.050 | 1.27 | 0.007 | 0.18 | 0.47 | 11.94 | 376 | 560 |
| 2/0 | 19 | 0.050 | 1.27 | 0.007 | 0.18 | 0.52 | 13.21 | 467 | 695 |
| 3/0 | 19 | 0.050 | 1.27 | 0.007 | 0.18 | 0.57 | 14.48 | 581 | 864 |
| 4/0 | 19 | 0.050 | 1.27 | 0.007 | 0.18 | 0.64 | 16.26 | 724 | 1077 |
| 250 | 37 | 0.060 | 1.52 | 0.008 | 0.20 | 0.69 | 17.53 | 855 | 1272 |
| 300 | 37 | 0.060 | 1.52 | 0.008 | 0.20 | 0.76 | 19.30 | 1022 | 1521 |
| 350 | 37 | 0.060 | 1.52 | 0.008 | 0.20 | 0.79 | 20.07 | 1191 | 1772 |
| 400 | 37 | 0.060 | 1.52 | 0.008 | 0.20 | 0.85 | 21.59 | 1345 | 2001 |
| 500 | 37 | 0.060 | 1.52 | 0.008 | 0.20 | 0.94 | 23.88 | 1668 | 2482 |
| 600 | 61 | 0.070 | 1.78 | 0.009 | 0.23 | 1.10 | 27.94 | 1994 | 2967 |
| 750 | 61 | 0.070 | 1.78 | 0.009 | 0.23 | 1.16 | 29.46 | 2465 | 36 |
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificate
USA is our main market. We have many distributors from USA companies. And we have obtained UL certifications for many products, such as TC cable, DLO cable,RHH/RHW/RHW-2/XHH/XHHW/XHHW-2/SIS, THHN/THHW/THW/THW-2/THWN/THWN-2/TW,SER/SEU/USE/USE-2/MHF, MV-90/MV-105,TC cable,MC cable,DLO,type DG,PV wire,AC Cable,Soow,Welding cable and so on.
1 Location:

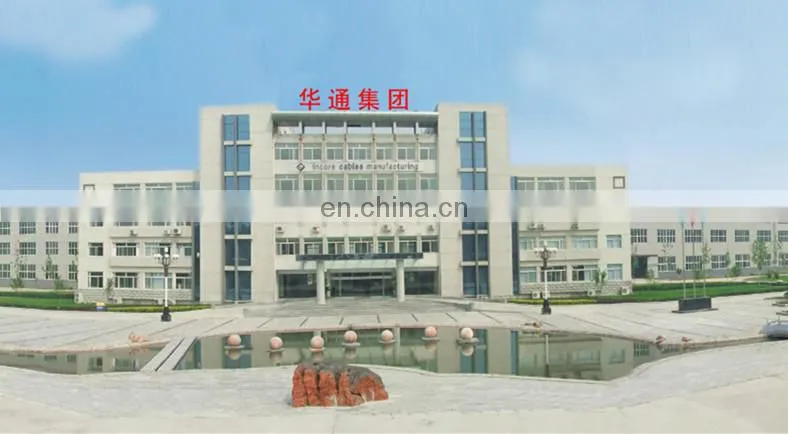

Hebei Huatong wires and cables group co., ltd. is Located inTangshan, 100 Km to TianjinXingang sea port, 150Km to the Capital city Beijing China.
2 About Huatong:
Founded in 1993 Registered capital: CNY294 Million Equal to: US$45 Million
Floor space: 220,000 square meter Employees: 950 Production capacity:US$500Million
3 Production and inspection facility:
Drawing machine : 50 sets
Conductor stranding machine: 30sets
CCV and CV extruding line: 30sets
Insulation and sheath extruding machine: 40sets
Cabling machine: 30sets
Braiding machine:40sets
Other auxiliary machine: 150stes
MV cable partial discharge
equipment: 4sets
Other test machine:100sets
4 Enterprise Principle:
Strengthening Huatong /Benefiting employees /Serving our country and society/Aiming to be a world-renowned enterprise
