UL Certificated 600V Aluminum Copper Conductor With XLPE Insulated XHHW-2 CABLE
- Tianjin Qingdao or other main port
- T/T Credit Card
You May Like
-
600V 2 Conductor 4 Conductor Ser/seu Cable Complied to Aluminum Xhhw Wire With UL Certification
-
Hot Sell Building Wire 600V 12-2 Romex NM-B Cable
-
Top Ten 600v 50mm2 Electric Cable Made in China
-
Top Ten 600v Price 25mm Electric Cable Made in China
-
Top Ten 600v Price of Electric Cable Three Phase Made in China
-
Top Ten 600v Cambodia Electric Wire and Cable Made in China
Product Details
| Brand Name | RNEDA | Place of Origin | Hebei, China | |
| Model Number | XHHW-2 | Type | Low Voltage | |
| Application | Construction | |||
| Conductor Material | Aluminum |
Product Description

LARGEST CABLE MANUFACTUER IN NORTH CHINA
ANNUAL EXPORT VOLUME EXCEED 200MILLION USD
WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS
WITH TUV TYPE TESTING REPORT
WIDE PRODUCTS RANGE
ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS
CNAS APPROVAL LABROTARY

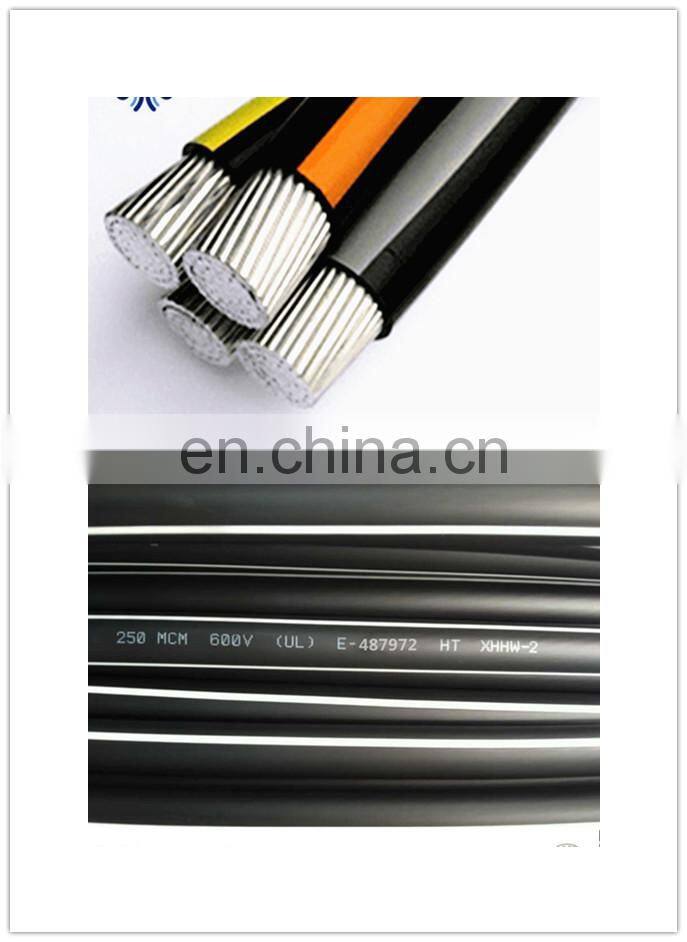

UL certificited 600V Aluminum Copper Conductor with XLPE Insulated XHHW-2 CABLE
APPLICATIONS
Type XHHW,XHHW-2, XHH conductors are primarily used in conduit or recognized raceways for services, feeders, and branch circuit wiring as specified in the National Electrical Code. XHHW-2 conductors may be used in wet or dry locations at temperatures not to exceed 90°C. Voltage rating for XHHW-2 conductors is 600 volts. Suitable for use in Health Care Facilities per section 517.160 of the NEC where a dielectric constant of 3.5 or less may be specified. This product in sizes 500kcmil and larger is designed to be installed without the application of pulling lubricant.
SPECIFICATIONS
Type XHHW-2 conductors comply with the following:
• ASTM- All Applicable Standards
• UL Standard 44
• NOM-ANCE 90° C
• Federal Specification A-A-59544
• National Electrical Code, NFPA 70, 2011 Edition
• NEMA WC 70 Construction Requirements
• 500kcmil and larger
• RoHS/Reach Compliant
CONSTRUCTION
Conductors: XHHW-2 conductor is a compact soft drawn bare 8000 series aluminum, with Class B stranding per ASTM
Insulation: XHHW-2 has abrasion, heat and moisture resistant cross-linked polyethylene insulation XLPE
Size | Stranding | Conductor Diameter | Insulation Thickness | Overall Diameter | Weight | Ampacity at 90C * |
AWG | (inches) | (inches) | (inches) | LBS/1000' | A | |
8 | 7 | 0.134 | 0.045 | 0.227 | 30 | 45 |
6 | 7 | 0.169 | 0.045 | 0.262 | 42 | 60 |
4 | 7 | 0.213 | 0.045 | 0.306 | 68 | 75 |
2 | 7 | 0.268 | 0.045 | 0.361 | 86 | 100 |
1 | 7 | 0.299 | 0.55 | 0.412 | 110 | 115 |
1/0 | 18 | 0.335 | 0.55 | 0.449 | 134 | 135 |
2/0 | 18 | 0.378 | 0.55 | 0.489 | 163 | 150 |
3/0 | 18 | 0.423 | 0.55 | 0.536 | 200 | 175 |
4/0 | 18 | 0.476 | 0.55 | 0.588 | 247 | 205 |
250 | 35 | 0.52 | 0.65 | 0.653 | 296 | 230 |
300 | 35 | 0.571 | 0.65 | 0.703 | 359 | 255 |
350 | 35 | 0.614 | 0.65 | 0.749 | 401 | 280 |
400 | 35 | 0.657 | 0.65 | 0.792 | 453 | 305 |
500 | 35 | 0.736 | 0.65 | 0.869 | 556 | 350 |
600 | 58 | 0.816 | 0.8 | 0.979 | 679 | 385 |
700 | 58 | 0.877 | 0.8 | 1.04 | 782 | 420 |
750 | 58 | 0.909 | 0.8 | 1.071 | 833 | 435 |
900 | 58 | 0.999 | 0.8 | 1.162 | 987 | 480 |
1000 | 58 | 1.059 | 0.8 | 1.223 | 1090 | 500 |

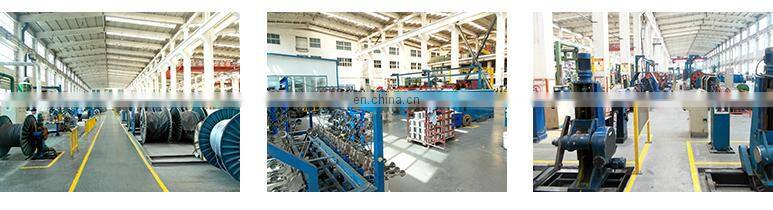

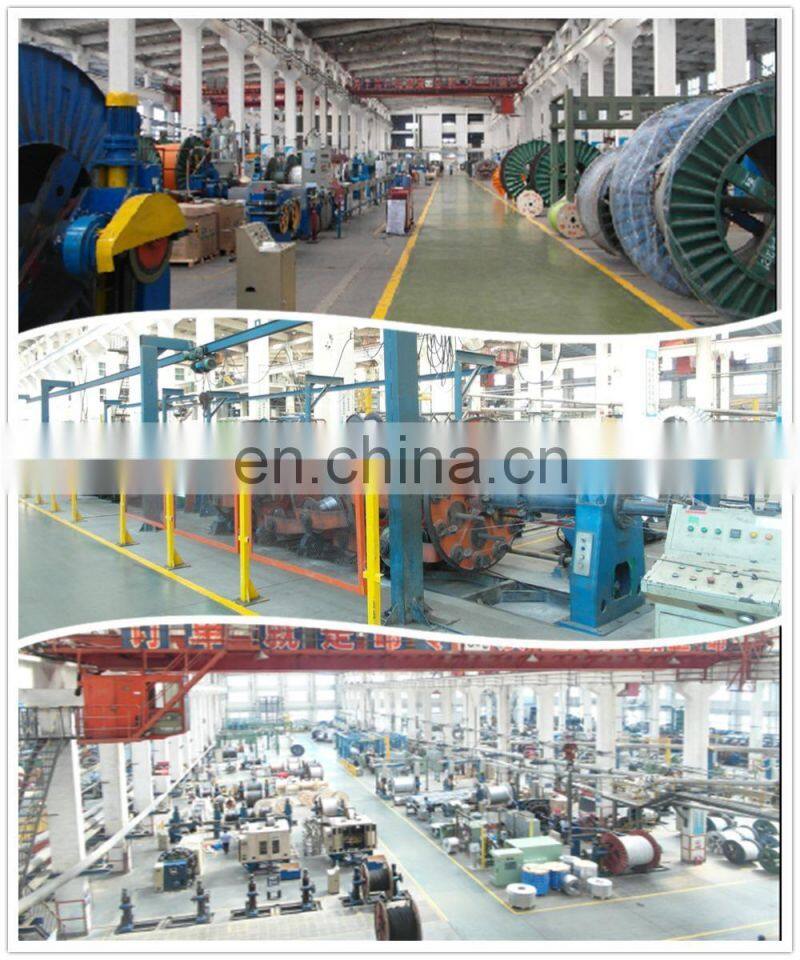

We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC,DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.

HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese
company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
(1)When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, pleasecall us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freightcharge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
(5)What cables does Hua Tong manufature?XLPE insulating power cables with voltage up to 35kV, PVC insulated power cables, mining cable, general rubber sheathed flexible cable, Submersible oil pump cable, locomotive vehicle cables, elevator cable,shipboard cable, nuclear station cables, prefabricated branch cables, ABC cables, control cables, special cables, the motor winding connecting conductors, aluminum stranded conductor (AAC) and aluminum stranded steel-core reinforced conductor (ACSR) so on.
(6). Which payment terms do you accept?
A: The payment term varies with different price level and total value of every contract.
The following are most common terms:
a.100% TT advance for small amount orders.
b.30% T/T down payment, balance payment negotiable accordingly.
1. 22 years production experience and 13 years export experience .
2.high-end Machinery and equipment for high quality cable .
3.manufacture various of cable :power cable,control cable,abc cable,submersible oil pump cable,rubber cable,elevator cable,electric cable...
4. products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL,DNV:
system ceryification:ISO9001,ISO14001,OHSAS18001
5.our product sells all over the world and has the good reputation.
fessional teamwork service for you actively.
7.quick solution and long time online time waiting for your inquiry.
8.rapid delivery and feedback.
9. Stock available, Free sample
10.We can do that you expect
