600V PVC/Nylon Insulation Power and Control Type TC Cable

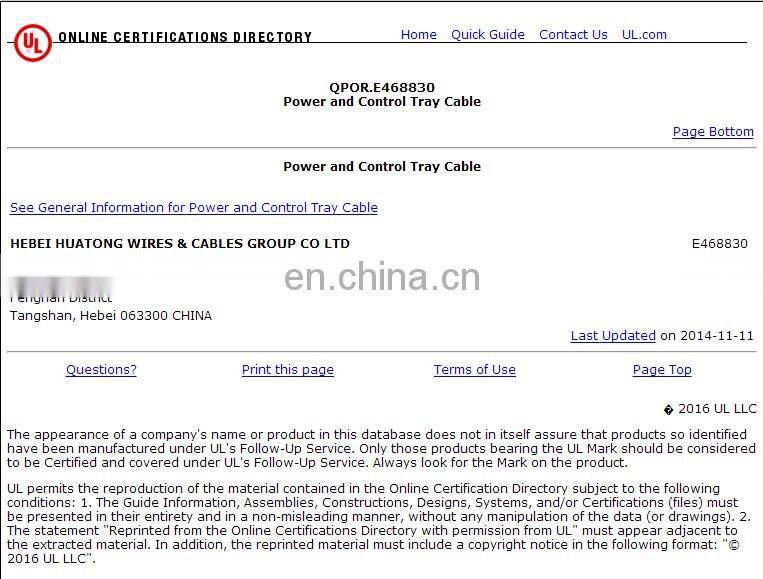

UL1277 certificate of power and control Tray Cable

Control Cable-THHN

 Type TC Control Cable. 600 Volt. Copper Conductors.

 PVC/Nylon Insulated Singles Sizes 14 AWG through 10 AWG.

 Overall PVC Jacket. Heat, Moisture and Sunlight Resistant

 1 APPLICATIONS

Type TC Control Cable is for use in industrial power or control circuits where small diameter, flame retardant cables are desired. Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire. Conductors may be used at temperatures not to exceed 75°C in wet locations or 90°C in dry locations

 2 SPECIFICATIONS

 Type TC Control Cable meets or exceeds the applicable requirements of the following standards and specifications:

      • ASTM - (All applicable standards)

      • UL 1277 Electrical Power and Control Tray Cables

      • NFPA 70 (NEC)

      • ICEA S-58-679 - Control Cable Conductor Identification Method 1, Table 2

3 CONSTRUCTION

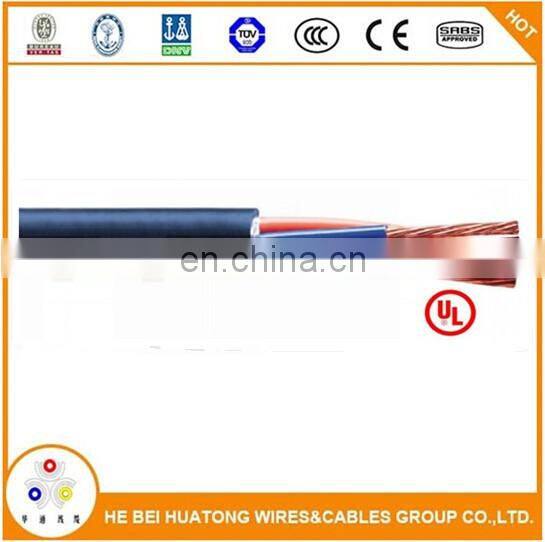

 Type TC Control Cable is available in sizes 14 AWG through 10 AWG, with multi conductor constructions of two through 37 conductors. The product uses Type THHN or THWN conductors in sizes 14 AWG through 10 AWG .Individual conductors are bare annealed copper covered with a polyvinyl chloride (PVC) insulation over which a nylon (polyamide) or UL listed equal jacket is applied. The overall jacket consists of a heat, moisture and sunlight resistant PVC. Non-halogen jacket available upon request.

4 Option

 Large size from 8AWG to 750MCM

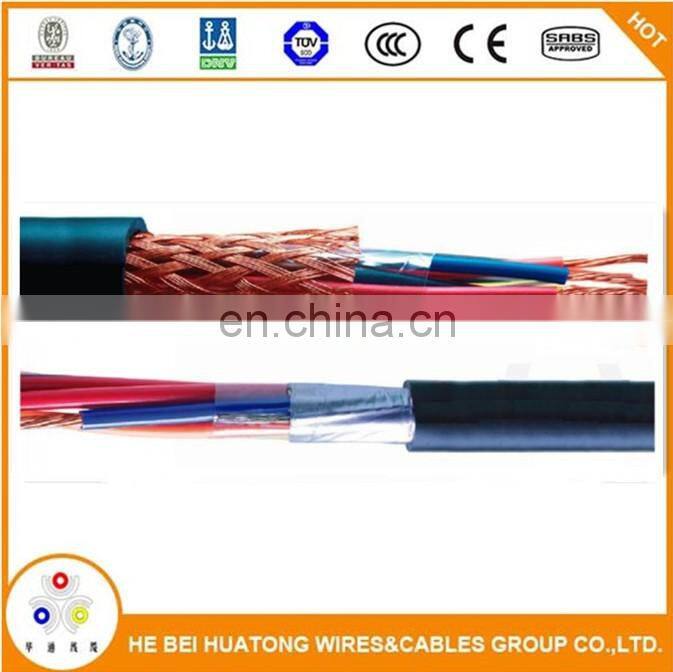

 Shield structure -Aluminum-plastic composite tape or copper/tinned-copper braid

5 Date sheet of Type TC cable:

 We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.

 Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.
