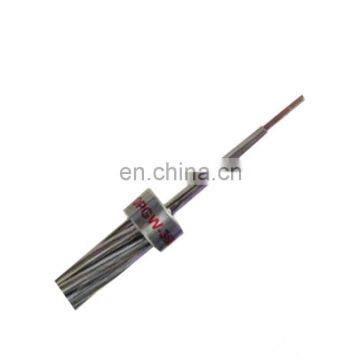

OPGW 12 16 24 32 36 48 72 Core Fibers G652D Single Mode Fiber Optical Cable For Aerial Overhead Ground Wire Cable

OPGW 12 16 24 32 36 48 72 Core Fibers G652D Single Mode Fiber Optical Cable For Aerial Overhead Ground Wire Cable

Optical Fiber Composite Overhead Ground Wire (OPGW) adds fiber into it and at the same time,maintains all the original performance and functions of the existing overhead ground wire,which opens up the high-performance optical transmission channel,giving it both lightening-resistant and communications functions,it is a kind of wire that combines the functions of overhead ground wire and communications capabilities.

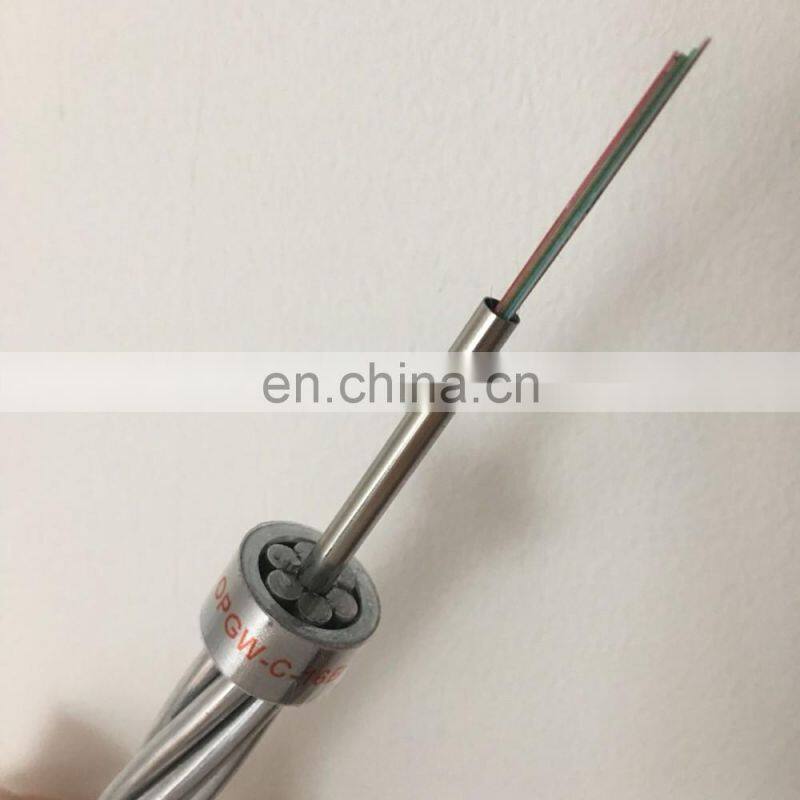

The OPGW consist of stainless steel tube optical unit, aluminum cladding steel wire, aluminum alloy wire. It has central stainless steel tube structure and layer stranding structure. We can design the structure according to different environment condition and customers requirements.

Features and benefits:
1.Lightness, small outer diameter, no torsion, high tensile resistance
2.High modular of elasticity, suitable for large stress-strain
3.Small thermal expansion coefficient
4.Good vibration resistance
5.Excellent flexibility capability
6.Free from lighting, and electric-magnetic interrupt
7.Adapt different span and sag installation requirements through changing sectional area of aramid fibers in the cable

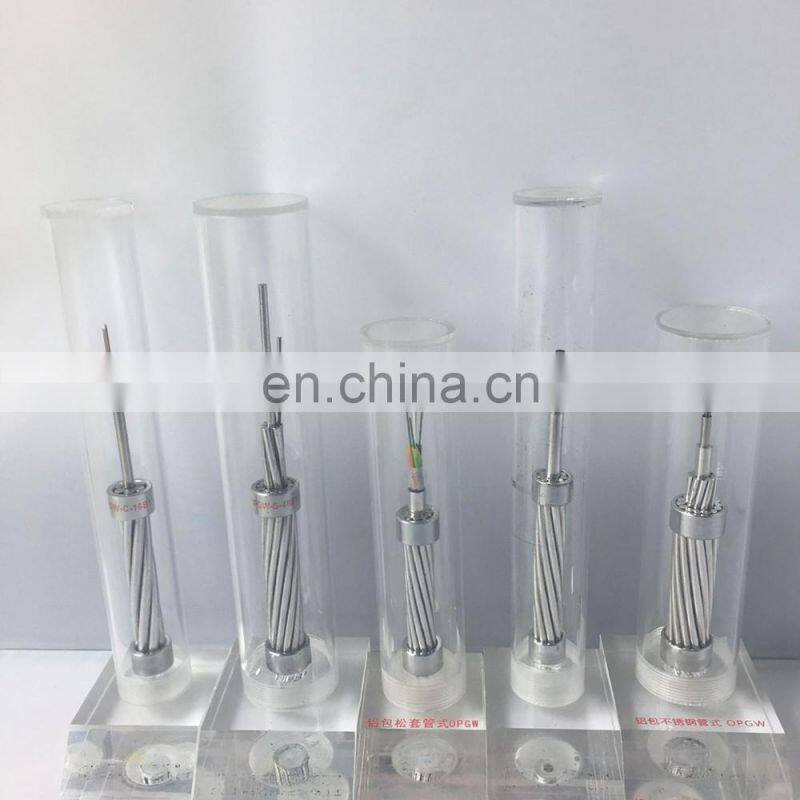

OPGW Structure:

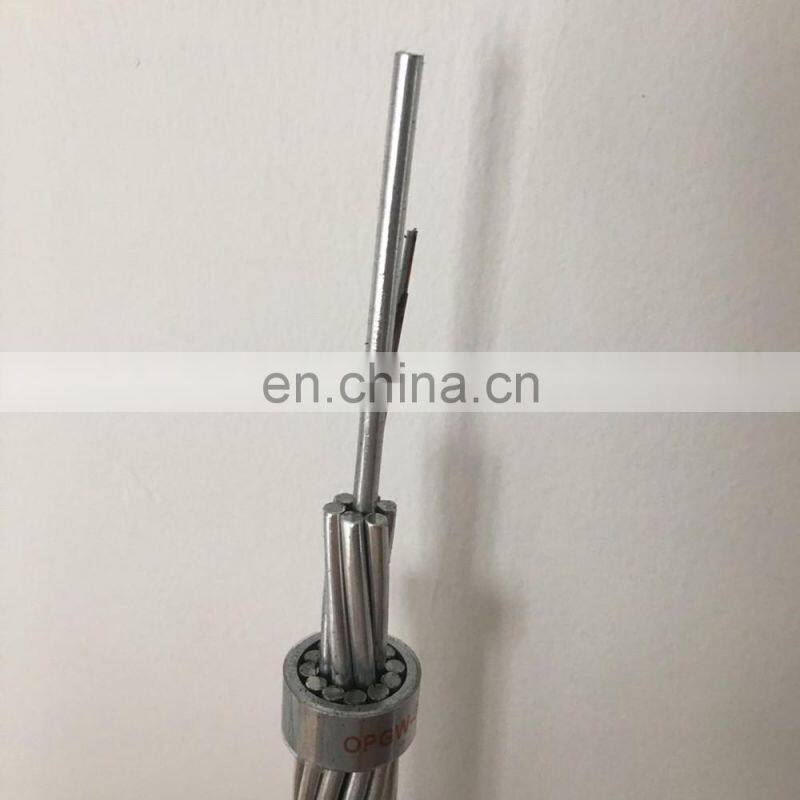

1. OPGW-CENTER-1 Layer is a kind of overhead grounding wire which take SST optical unit as the center,concentric stranding the ACS wires at outer layer according to certain lay ratio,It is widely used in modern information electric power system.

Structure characteristics and application:
1:Small diameter and light weight,small short-circuit capacity
2:Optical unit forms appropriate primary optical fiber extra length
3:Characteristics of tension resistance,torsion resistance and side pressure resistance are not good enough
4:Suitable for matching with GJ-35,GJ-50,GJ-70
Cable Structure:Both Aluminum Cladding Steel wire and Aluminum Alloy wire can be used.

2. Stranding Stainless Steel Tube OPGW Cable is cable product that produced by way of comprehensive stranding the ACS wires and SST optical unit which replace one or some of ACS wire of traditional ground wire cable,It realized the function of optical fiber communication and has bigger diameter and more optical fiber compared with center SST OPGW.

Structure Stainless Steel Tube OPGW Cable:
1.Big diameter and more optical fiber.
2.Big tensile strength and short-circuit capacity,arrive the best balance of machanical and electrical properties.
3.One or more optical unit.
4.Best design of stranding,obtain secondary optical fiber extra length.
5.Strands piles can be two or three,the wire can be ACS wire and/or the combination of aluminium alloy wire and aluminium wire.

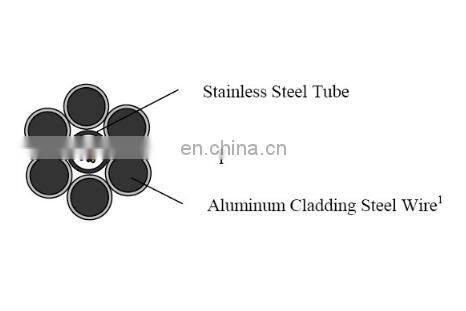

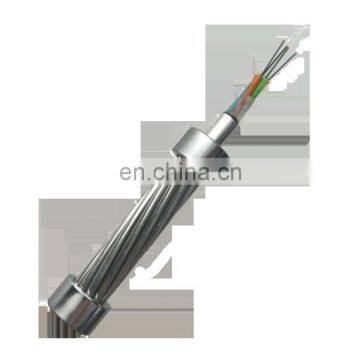

OPGW-CENTER-1 Layer Structure Drawing:

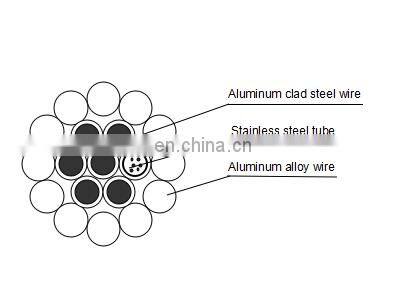

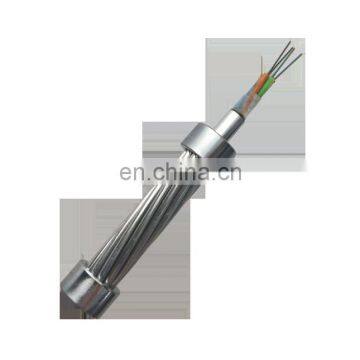

Stranding Stainless Steel Tube Structure Drawing:

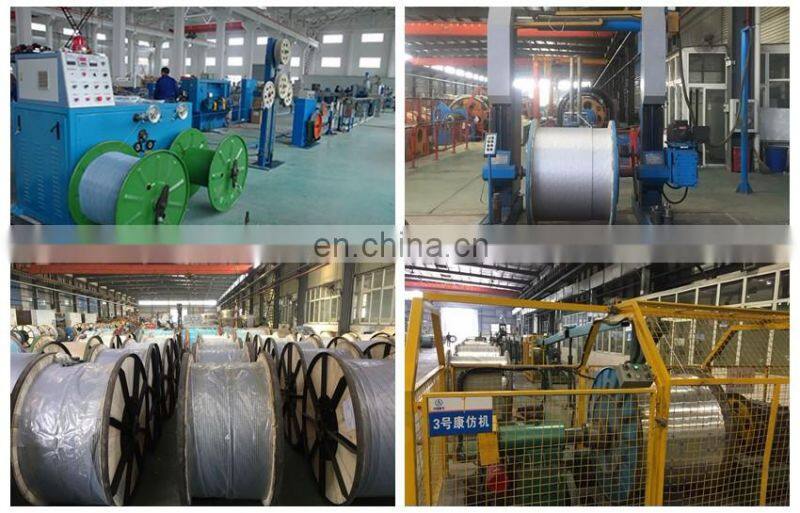

Hunan Shuanglin Communication Technology Co.,Ltd. is one of the biggest manufacturer of fiber optic cable in China.
