Rock Splitter Description:
Rock Splitter is a machine for the division of rock, which can be used in construction,
decoration, ore mining operations, the secondary disintegration of large pieces of ore,
the local parts of concrete and all the demolition work.
Advantage of rock splitter: no vibration, no impact, no noise, no dust, can split in a few
seconds, high work efficiency, controllable split, accurate split size, moderate weight,
simple operation, easy maintenance. Can work indoors and in narrow venues.
Working:
1. Demolition and partial reconstruction of reinforced concrete foundation/structure
2. Demolition of reinforced concrete floors/walls
3. Demolition of concrete structures in indoor or narrow spaces
4. Mining of quarry blocks
5. Excavation of tunnels, ditches and other rocks
6. Smelting and demolition
7. Various rescues (earthquakes, mine disasters, roads, etc.)
Splitter Parameter | |||
Model |
ZT-250 |
ZT-350 |
ZT-450 |
Wedge Length(mm) |
250mm |
350mm |
450mm |
Piston Stroke(mm) |
90/220mm |
90/220mm |
90/220mm |
Drilling Depth(mm) |
>500mm |
>700mm |
>900mm |
Punching Diameter(mm) |
42mm |
46mm |
46mm |
Crack Width(mm) |
10-20mm |
10-20mm |
10-20mm |
Cleavage Time(s) |
10-15/s |
10-15/s |
10-15/s |
Splitting Force(T) |
500t |
800t |
800t |
Weight(kg) |
240kg |
250kg |
260kg |
Pump pack Parameter | ||||
Engine |
Diesel |
Electric |
Pneumatic |
Gasoline |
Power |
6HP |
4kw,5.5kw |
8HP |
8HP |
Weight |
150kg |
130kg |
130kg |
150kg |

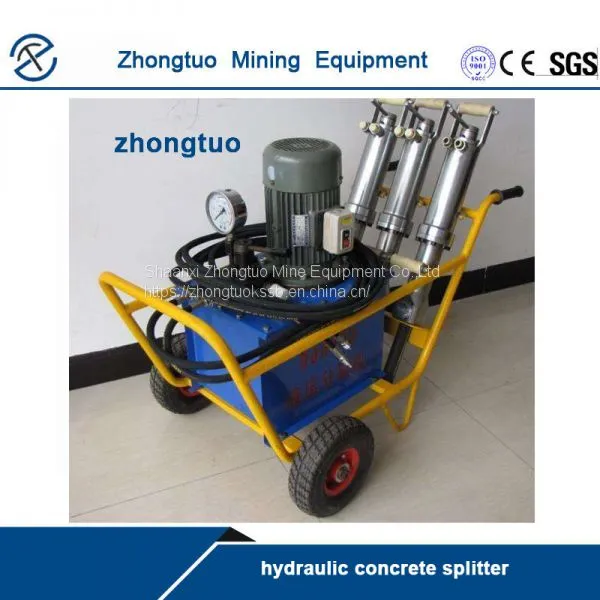

The whole set of machine includes:
1. Electric/diesel driven hydraulic pump;

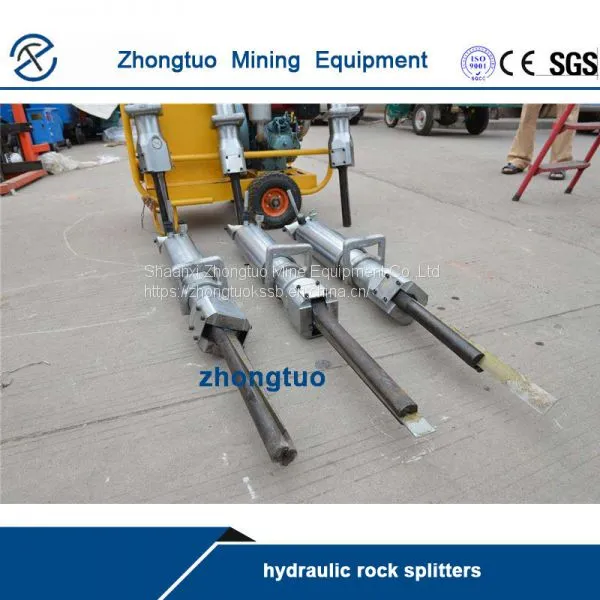

2. Rock splitter, 1-10 pieces of splitting gun can work with one pump;
3. Oil Hose, we use oil hoses to connect the splitters with pump;
4. Distributor, for splitters>1, we need a distributor to distribute the flow of hydraulic oil
