Piston rock splitter tool is new type hole piston type hydraulic rock splitter, hydraulic soundless blasting, hand hold rock splitter improved, and alternative of Expansive Demolition Agent , first need to drill hole 90mm 105mm by DTH hammer drill, insert splitting rods with multi piston cylinder button press rock by super high pressure of 1,500 kgf/cm2 (150 MPA) which is not possible from other rock demolition power packs at several seconds to splitting big block from rock body.
Features of piston rock splitter :
Light weight cylinders are operated by a man worker , while another worker is taking care of
the power pack. Good for small or narrow work sites. Short and light and good for demolition
work of small size or confined area work.
No leaking oil under high pressure of 1,600 kgf/cm2 nor breakage problem when used with
normal care. Manufactured for hand-held operator. Weight less 30 kgs easy use.
1, Compare traditional blasting, piston rock splitter working at non explosive and silent,
safe, no fly, higher efficiency, lower cost.
2, Compared with Hand held Hydra Splitter, piston rock splitter only requires 800-1000mm in depth for over-size breaking capacity. Soft rocks are fractured with
hole spacing of 50-100 cm .Very efficient in rock demolition comparing with any
existing soundless rock breaking methods.
3, Piston rock splitter can break rock at very fast time, its job needs DHT hammer
rig drilling hole at first, and then can insert Splitter Rod Into pro hole, cracking time
at within 1 minute .
4, Compared with imported rock splitter, pump station use the imported spare part ,
its working pressure reach 150 MPA, flowing capacity high, up pressure fast, breaking
time short, performance stable, and price less.
Piston rock splitter is operated by the super high pressure of 1,500 kgf/cm2 which is not possible from other rock demolition power packs. Durable heavy duty equipment is not compared with other rock splitters available today.
Product parameters of piston rock splitter equipment:
Product number |
Borehole diameter |
Minimum drilling depth（mm） |
Working pressure |
Zhang Kaili |
power |
Voltage（V） |
Machine weight |
ZT-75 |
80～85 |
900mm |
100～120 |
1200 |
3 |
380 |
30 |
ZT-85 |
90～95 |
900mm |
100～120 |
1300 |
3 |
380 |
35 |
ZT-95 |
100～105 |
900mm |
100～120 |
1600 |
3/5.5 |
380 |
40 |
ZT-140 |
150～155 |
900mm |
100～120 |
2100 |
5.5 |
380 |
65 |

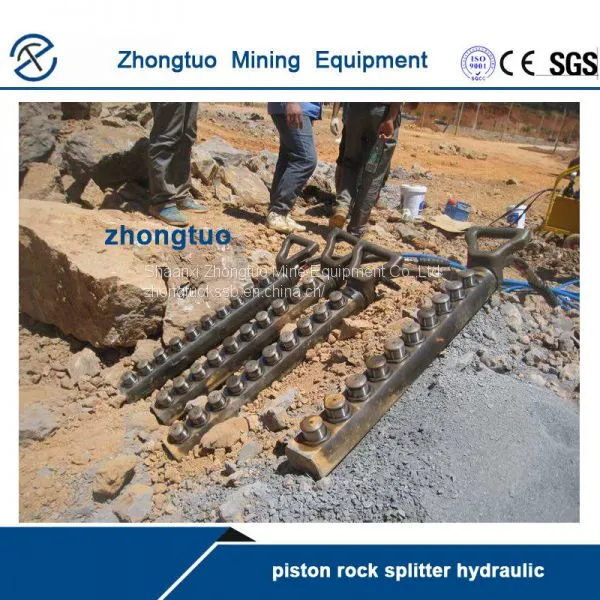

Application of piston rock splitter hydraulic :
hydraulic piston powered rock splitter. Applied for first cut for rock demolition, concrete breaking, and quarrying, building cracking like
road, bridge, foundation. Good for removing rocks out of foundation of buildings, trenching sites,
or small tunnel sites. The splitters are operated by a man worker. Each splitter weighs not more
than 30 kgs usually. Good for removing rocks out of foundation of buildings, trenching sites, or
small tunnel sites. Performs very well on hard rocks where wedge type rock splitters take long
hours to drill and split.
Advantages of piston rock splitter machine:
Compared with Hand held Hydra Splitter, piston rock splitter only requires 800-1000mm in depth for over-size breaking capacity. Soft rocks are fractured with hole spacing of 50-100 cm.Very efficient in rock demolition comparing with any existing soundless rock breaking methods.
Welcome to contact us: zhongtuoks@foxmail.com,
jessie@ztmineequipment.com
