Ceramic Tube Wire Wound Resistor 200W Shunt Wire Wound Power Resistor With Bracket

Ceramic Tube Wire Wound Resistor 200W Shunt Wire Wound Power Resistor With Bracket thumbnail-1
Ceramic Tube Wire Wound Resistor 200W Shunt Wire Wound Power Resistor With Bracket thumbnail-2
Ceramic Tube Wire Wound Resistor 200W Shunt Wire Wound Power Resistor With Bracket thumbnail-3
Ceramic Tube Wire Wound Resistor 200W Shunt Wire Wound Power Resistor With Bracket thumbnail-4
Ceramic Tube Wire Wound Resistor 200W Shunt Wire Wound Power Resistor With Bracket photo-1

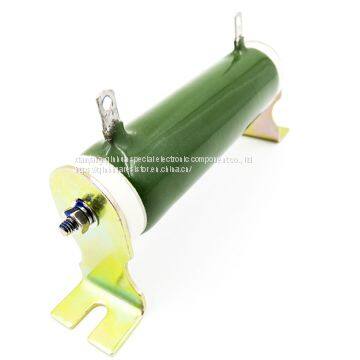

Ceramic Tube Wire Wound Resistor 200W Shunt Wire Wound Power Resistor With Bracket photo-2

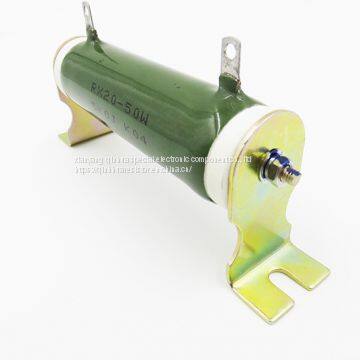

Ceramic Tube Wire Wound Resistor 200W Shunt Wire Wound Power Resistor With Bracket photo-3

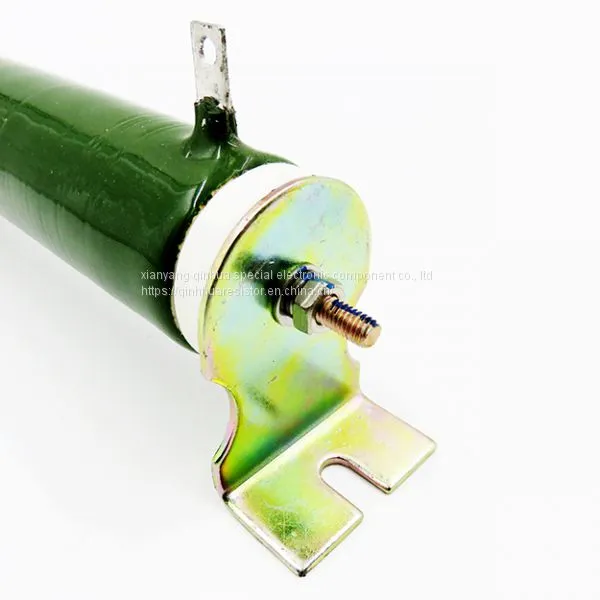

Ceramic Tube Wire Wound Resistor 200W Shunt Wire Wound Power Resistor With Bracket photo-4
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
QH
Place of Origin:
China
Model Number:
RX20
Contact Supplier Request Quote Chat Now
Xianyang Qinhua Special Electronic Component Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name QH
Place of Origin China
Model Number RX20
Type Fixed Resistor
Rated Power 8-500W
Operating Temperature ±400PPM
Package Type Throught Hole
Resistance Tolerance ±5%
Resistance 5.1Ω-12KΩ
Technology Metal Film
Temperature Coefficient 25℃-125℃
Product Description
Product name:
wire wound resistor with bracket
Coating:
Ceramic Tube
Powder range:
8w-500w
Chief Characteristic:
1. Alloy resistance wire is winding on the ceramic body.
2.  High temperature vitreous coating
3. Non-lead glazed on the surface
4. Anti-pollution
TECHNOLOGY STANDARD

1. GB/T 5729-2003

2. Q/QH1630-2014

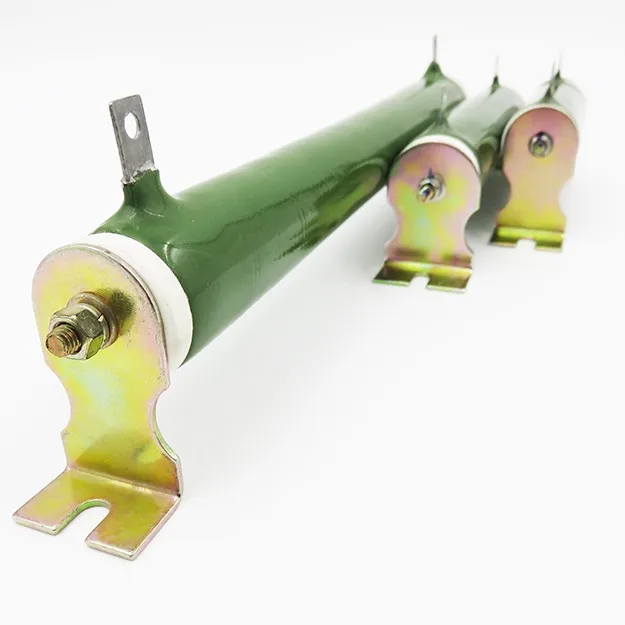

Detailed Images

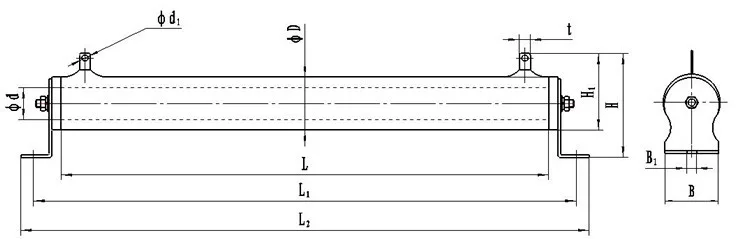

Contour Drawing


ISO9001:2008 Quality management Systems Certificate

Packing & Delivery

1. Encapsulated with plastic film first;
2. With a foam box packaging second;
3. Then use carton packaging;
4. Last use wooden box.
Note: According to the difference of the contour dimensions, the packaging will be different.
Please in kind prevail.
