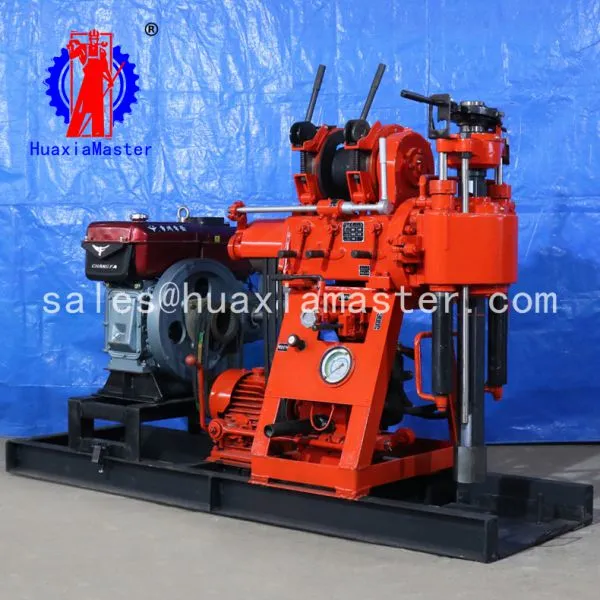

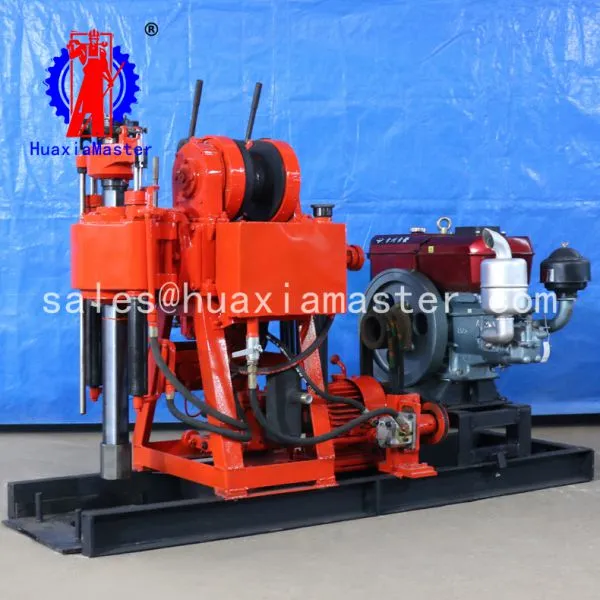

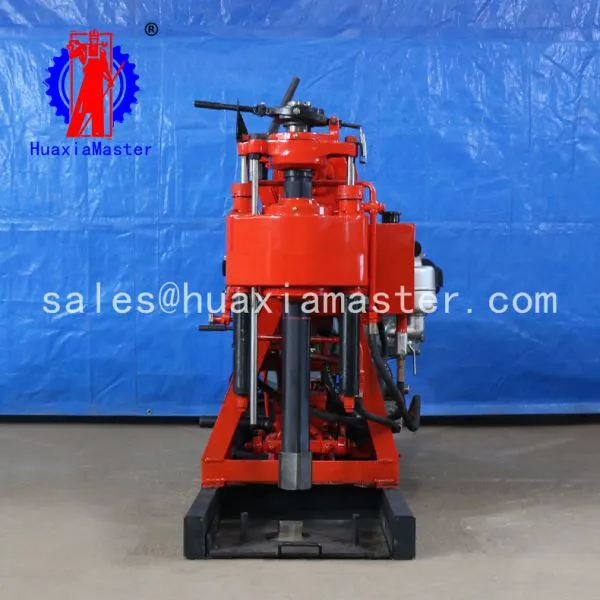

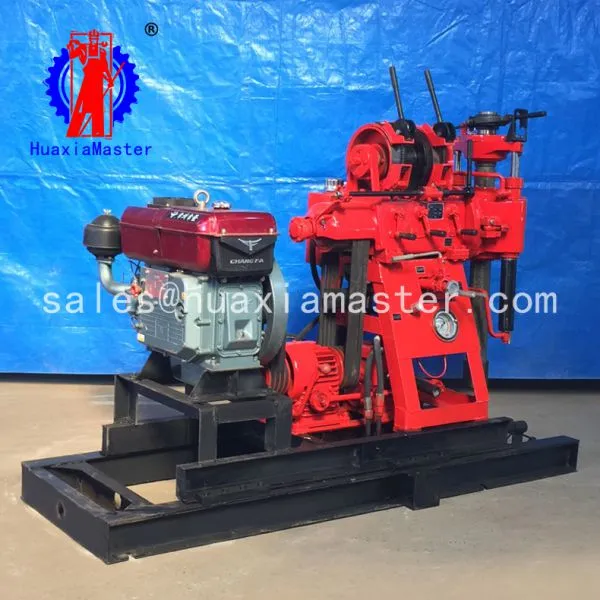

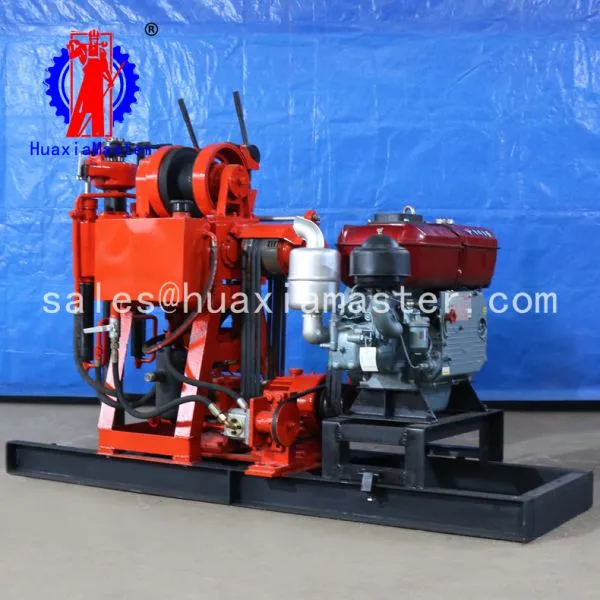

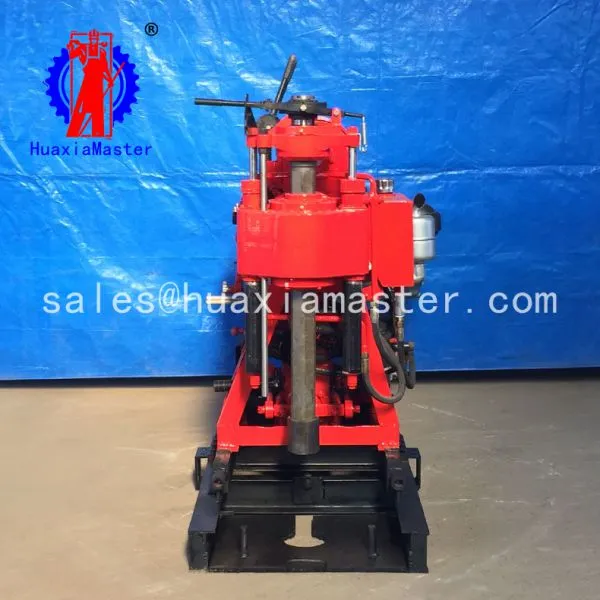

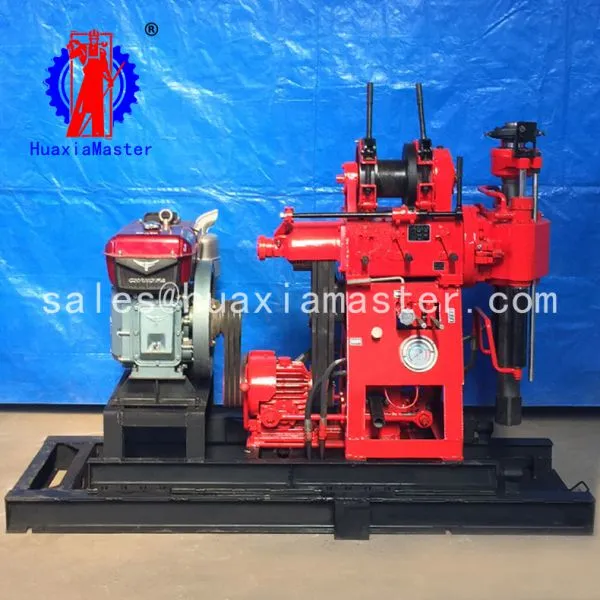

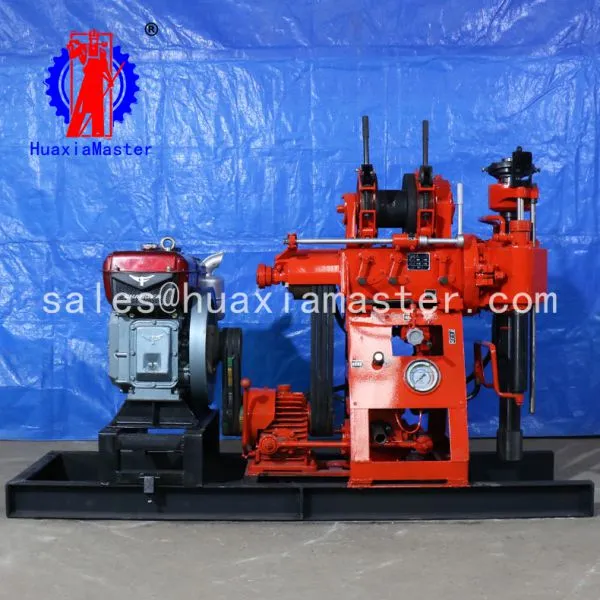

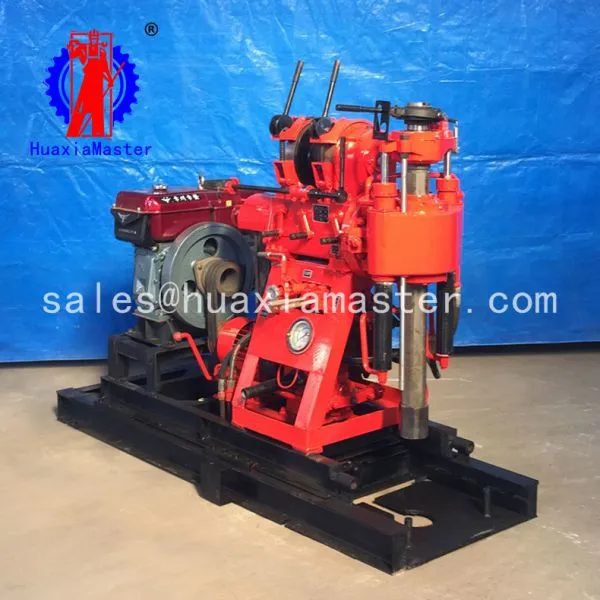

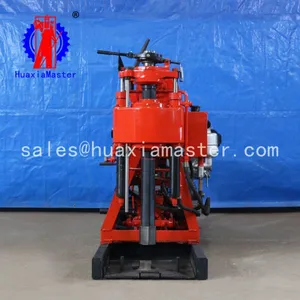

XY-150 bore well drilling machine price in india/150m drilling machine

FOB Price

USD $4500 - $5000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HuaxiaMaster	Place of Origin	China
Model Number	XY-150	Type	Core Drilling Rig
Certification	ISO	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	one year	Weight	165
Dimension(LWH)	68012003800	Power Type	Diesel
Voltage	220	Usage	Water Well
Condition	New	Power(W)	13.2

1. Application range of XY-150 core drilling machine

Geological survey, geophysical exploration, road and high-rise building foundation exploration, wells, blasting holes and other drilling projects.

2. Parameters of XY-150 core drilling machine

Drilling depth(m)	150
Maximum opening diameter（mm）	219
The final hole diameter（mm）	73
Rod diameter（mm）	42/50
Spindle speed (r/min)	140/295/470/790/1010
Spindle stroke（mm）	450
Hoisting capacity (KN)	14
Steel wire diameter（mm）	9.3
Maximum pressure (Mpa)	1.2
Working pressure (Mpa)	0.7
displacement（L/min）	150
Hydraulic pump pressure (Mpa)	1.2
Hydraulic pump rotation speed (r/min)	1800
Matched driving power (diesel engine and motor)	S1105 diesel engine and 11kw motor
