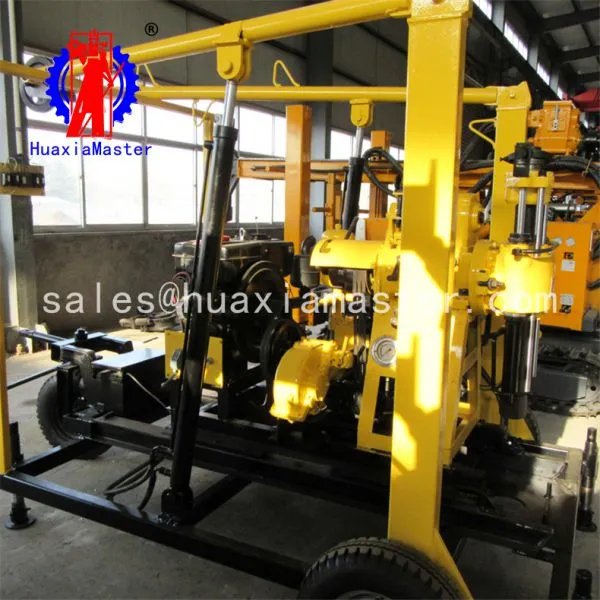

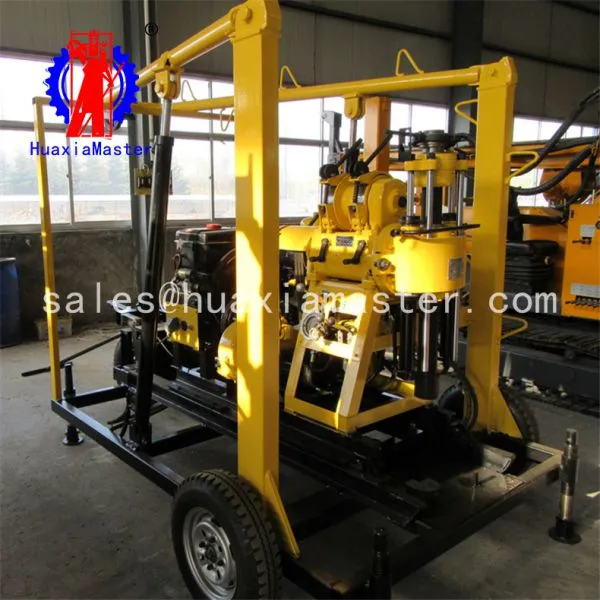

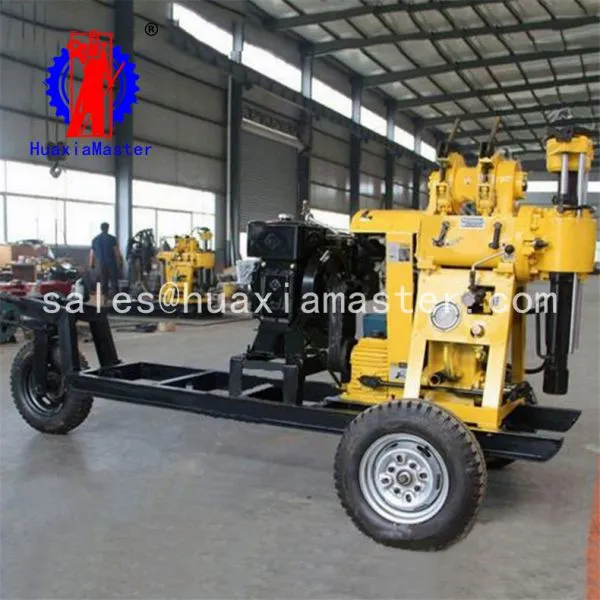

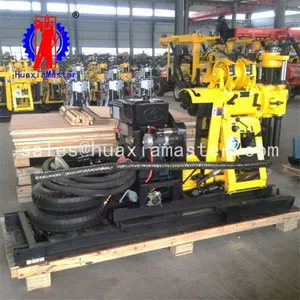

XYX-130 Water Well Drilling Rigs for Sale/well Drilling Machine

FOB Price

US$ 4500 - 5000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T L/C D/P D/A
Delivery Detail3 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HuaxiaMaster	Place of Origin	China
Model Number	XYX-130	Type	Rotary Drilling Rig
Certification	ISO	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	one year	Weight	1600kg
Dimension(LWH)	68012003800	Power Type	Diesel
Voltage	220	Usage	Water Well
Condition	New	Power(W)	13.2

Product Description

1. Application range of XYX-130 wheeled drilling rig

Geological survey and exploration, basic exploration for roads and high-rise buildings, inspection holes for various concrete structures, river embankments, subgrade grouting holes, direct grouting, civil wells and ground temperature central air conditioners.

2.Main features of XYX-130 wheeled hydraulic drilling rig

The rig is equipped with a wheeled walking mechanism, which is convenient for the whole machine to move.

With oil pressure feeding mechanism to improve drilling efficiency.

The drill rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod. The working efficiency is high and the operation is convenient and safe and reliable.

Equipped with pressure gauge at the bottom of the hole to facilitate mastering the hole in the hole.

3.Technical parameters of XYX-130 wheeled drilling rig

XYX-130 wheeled drilling rig
Drilling depth	130m
Max open hole caliber	220mm
End hole caliber	75mm
Drilling Rod diameter	50mm
Drilling angle	90°-75°
Drill weight	950kg
Spindle
Spindle speed	142 285 570r/min
Spindle stroke	450mm
Windlass
Maximum lifting weight of single rope	1600kg
Single rope lifting speed	0.41 0.82 1.64m/s
Drum diameter	140mm
Wire rope diameter	13mm
Wire rope capacity	27m
Mud pump
Type	Horizontal single cylinder double action
Displacement diesel engine / motor	95/77L/min
Maximum pressure	1.2Mpa
Work pressure	0.7Mpa
Inlet Size	30mm
Outlet pipe diameter	20mm
Trigonometric belt	B1575mm
