Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > RX20 50W 100w 75W Wire Wound Resistors

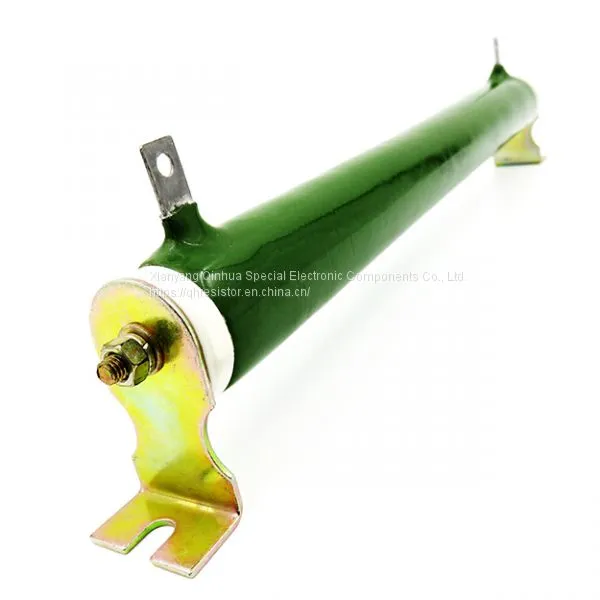

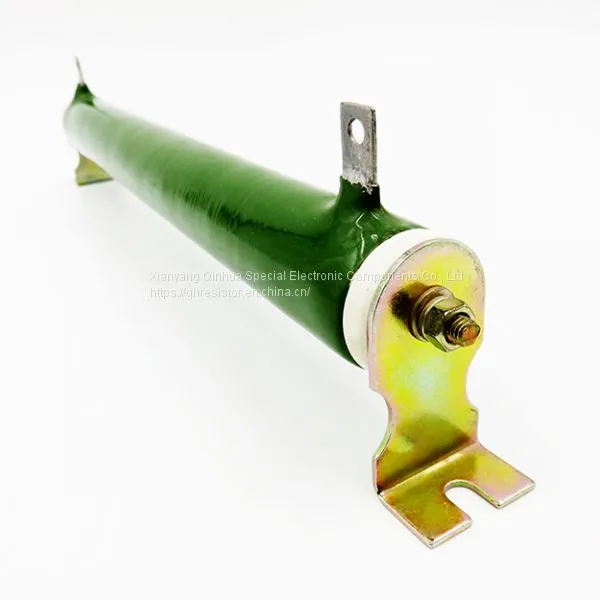

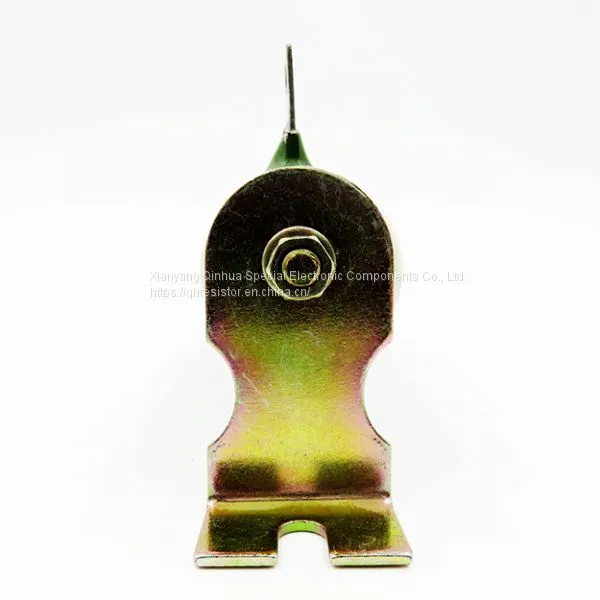

RX20 50W 100w 75W Wire Wound Resistors
US$ 3 - 50
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
QinHua
Place of Origin:
China
Model Number:
RX20
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBo ShangHai
Delivery Detail:
15 days
Related Products
-
Large Power Painted Wirewound Resistor 2kw 15ohm 5ohmUS$ 30 - 100MOQ: 10 Pieces -
RX20 Series Tubular Wire Wound ResistorsUS$ 3 - 50MOQ: 10 Pieces
-
200W 60Ohm Glazed Type Composite No-inductance Wire Wound ResistorsUS$ 20 - 30MOQ: 10 Pieces
-
60KV.70KV.80KV.100KV High Power and High Voltage ResistorUS$ 5 - 80MOQ: 5 Pieces
-
RIG8B High Power High Voltage Glass Glaze Film ResistorUS$ 5 - 30MOQ: 5 Pieces
Brand Name
QinHua
Place of Origin
China
Model Number
RX20
Type
Fixed Resistor
Rated Power
20-500W
Operating Temperature
25-150℃
Package Type
Throught Hole
Resistance Tolerance
5%
Resistance
1-5K ohm
Technology
Wirewound
Temperature Coefficient
200PPM
RX20 series tubular wire wound resistors.Non-Lead Glazed on the Surface. Anti-Pollution. Endurance High Tempe-
rature. It can be use to the severe environment. They are used extensively distribute -Voltage, di-
stribute -current & load resistors in the D.C. or low-frequency A.C. circuit.
Coating:Lead free vitreous enamel Core:Ceramic Tube(75%Al2O3)
Non inductive products are available. Power range:8W-500W.
Non-lead glazed on the surface. Anti-pollution. Enduring high temperature. It can be used to the severe environment. They are used extensively distribute voltage, distribute current and load resistors in the DC or low frequency AC circuit.
Email:sales3@qhresistro.com
Send Inquiry to This Supplier
Year Established
2001
Port of Shipment
NingBo /ShangHai/GuangZhou
Main Markets
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location
Xianyang, Shaanxi, China
