20W Cylindrical High Voltage Resistors

20W Cylindrical High Voltage Resistors thumbnail-1
20W Cylindrical High Voltage Resistors thumbnail-2
20W Cylindrical High Voltage Resistors thumbnail-3
20W Cylindrical High Voltage Resistors thumbnail-4
20W Cylindrical High Voltage Resistors thumbnail-5
20W Cylindrical High Voltage Resistors photo-1

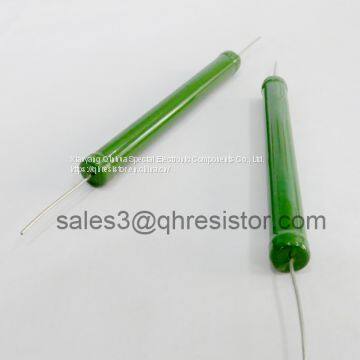

20W Cylindrical High Voltage Resistors photo-2

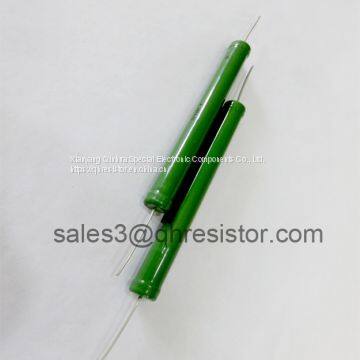

20W Cylindrical High Voltage Resistors photo-3

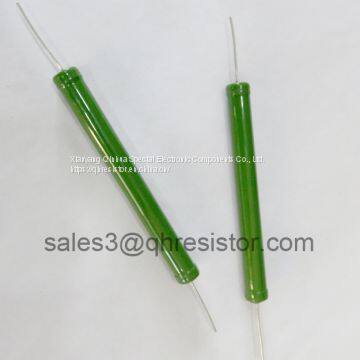

20W Cylindrical High Voltage Resistors photo-4

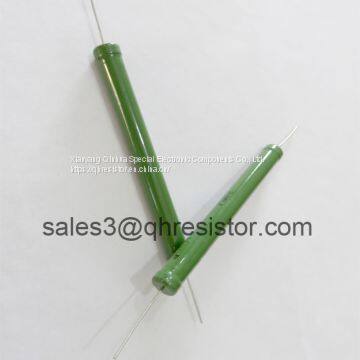

20W Cylindrical High Voltage Resistors photo-5
US$ 2 - 80 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
QinHua
Place of Origin:
China
Model Number:
RIG8B
Contact Supplier Request Quote Chat Now
Xianyang Qinhua Special Electronic Components Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBo ShangHai
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name QinHua
Place of Origin China
Model Number RIG8B
Type Fixed Resistor
Rated Power 2W-20W
Operating Temperature 25-150℃
Package Type Throught Hole
Resistance Tolerance 5%
Resistance 5K-10G ohm
Technology Thick Film
Temperature Coefficient 100PPM


Supply Ability

  • Supply Ability:

  • 1000 Piece/Pieces per Week We can speed up for any urgent purcased order .

Packaging & Delivery

  • Packaging Details

  • 1.Encapsulated with plastic film first;
    2.With a foam box packaging second;
    3.Then use carton packaging.
    4.Last use wooden box.
    Note:According to the difference of the contour dimensions,the packaging will be different. Please in kind prevail.

  • Port

  • Tianjin/Shanghai

  • Lead Time :

  • Quantity(Pieces) 1 - 100 >100
    Est. Time(days) 10 To be negotiated

High Voltage Metal Glaze Film 4.3k Ohm Resistor

4.3k Ohm Resistor

Product Description

1.Chief Technology Parameters & Contour Dimensions:

Rated Power

  70°C(W)

Resistance

Range (Ω)

Resistance

Tolerance (%)

Limiting

Voltage (KV)

Temperature

Coefficient

×10-6/K(PPM)

Contour

Dimensions

(ΦD×L)(mm)

     5

 100-5.1G

   ± 2

  8.0/10.0

   ±400

  11×42/ 12x53

    10

 5K-10G

   ± 3

  25.0/32.0

   ±400

  11×71 / 12×84

    20

 5K-100G

   ± 5

  40.0/45.0

   ±400

  11×103/ 12×114

    25

 5K-100G

   ±10

  50.0/55.0

   ±400

  11×126/ 12×138

Note: We can produce small batch precision sampling non-inductance resistors of the precise voltage divider for the resistors of the high voltage according to the user's special requirements.

We can produce 4.3k ohm resistor.

2.Contour Drawing:

5W 10W 20W 30W HV non-inductive resistor for pulse high voltage power supply

3.Chief  Characteristic:

1.Electronic performance is stable.

2.Endurance the high voltage.

3.Metal glaze film resistor.

4.Painted green protective lacquer on the surface.

5.Two type of the cap.

6.We can produce 4.3k ohm resistor.

4.Technology Standard:

1. GB/T5729-2003/IEC60115-1:2001

2. Q/QH1618-2007
