RIG8B High Power High Voltage Glass Glaze Film Resistor

RIG8B High Power High Voltage Glass Glaze Film Resistor thumbnail-1
RIG8B High Power High Voltage Glass Glaze Film Resistor thumbnail-2
RIG8B High Power High Voltage Glass Glaze Film Resistor thumbnail-3
RIG8B High Power High Voltage Glass Glaze Film Resistor thumbnail-4
RIG8B High Power High Voltage Glass Glaze Film Resistor thumbnail-5
RIG8B High Power High Voltage Glass Glaze Film Resistor photo-1

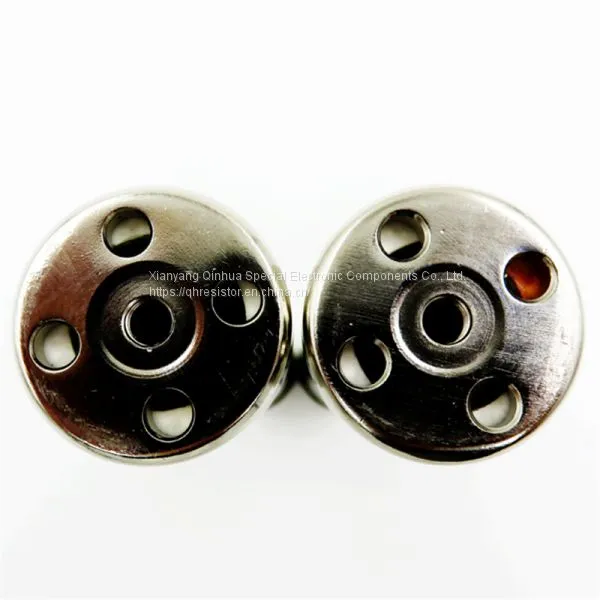

RIG8B High Power High Voltage Glass Glaze Film Resistor photo-2

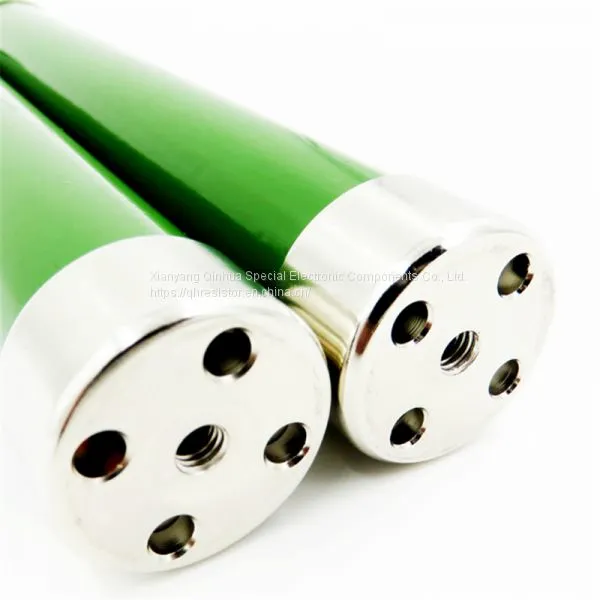

RIG8B High Power High Voltage Glass Glaze Film Resistor photo-3

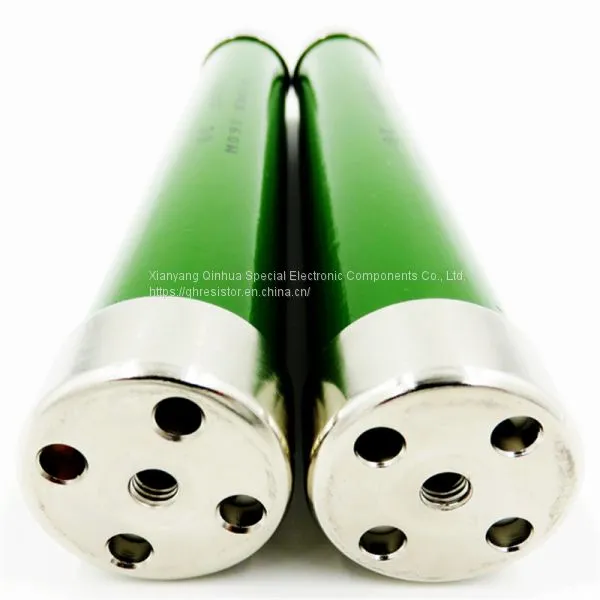

RIG8B High Power High Voltage Glass Glaze Film Resistor photo-4

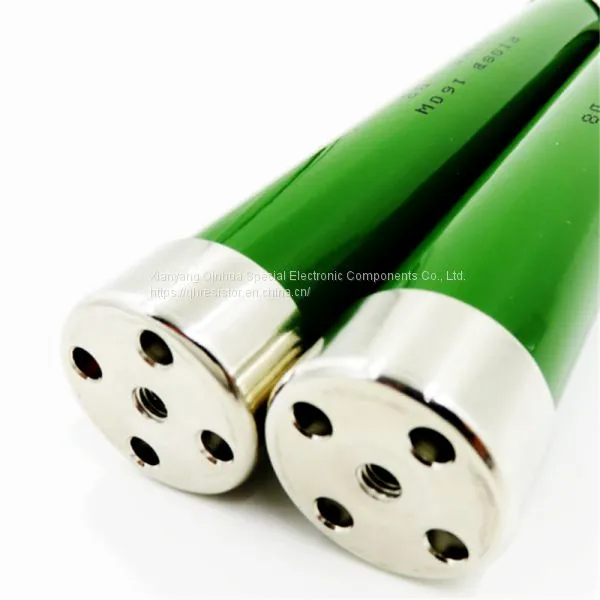

RIG8B High Power High Voltage Glass Glaze Film Resistor photo-5
US$ 5 - 30 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
QinHua
Place of Origin:
China
Model Number:
RIG8B
Contact Supplier Request Quote Chat Now
Xianyang Qinhua Special Electronic Components Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBo ShangHai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name QinHua
Place of Origin China
Model Number RIG8B
Type Fixed Resistor
Rated Power 5W-500W
Operating Temperature 25-125℃
Package Type Throught Hole
Resistance Tolerance 5%
Resistance 5K-10G ohm
Technology Thick Film
Temperature Coefficient 100PPM
Chief Characteristic:

1:Enduring high voltage and high power.
2:Mainly produce metal glaze film resistor.
3:It is extremely stable chemical properties resistor paste coated on 95%AL2O3 ceramic tube,high temperature resistance film formed after firing.
4:In order to guarantee stable electrical performance parameters,the surface to be coated with a protective lacquer.
5:We are professional resistor maunfacturer,We can produce resistor 100watt.

Reted Powder
(W)
Resistance range (Ω)
Resistance Tolerance   (%)
Limiting Voltage    (KV)
TEmperature Coefficient X10/K
contour Dimensions
(ΦDxL)(mm)
d(mm)
30
5-5G
±1-±10
25
  ≤±150(25-125)℃





≤±250(25-125)℃
Φ19x90
M5
40
10-10G
30
Φ27x100
M6/5
50
10-10G
45
Φ27x133
M6/5
60
20-10G
58
Φ27x160
M6/5
70
20-10G
62
Φ27x180
M6/5
80
50-100G
68
Φ27x200
M6/5
90
50-100G
82
Φ27x210
M6/5
100
50-100G
100
Φ27x260
M6/5
150
50-100G
130
Φ27x310
M6/5
150
50-100G
55
Φ30x154
M8
200
     50-100G
     ±1-±10
82
    ≤±400(25-125)℃
Φ42x210
M8
250
110
Φ42x270
M8
250
62
Φ60x180
M8
300
130
Φ37x310
M8
400
180
Φ42x420
M8
500
240
Φ42x540
M8
Contour Drawing





Applications

1. Where high resistance, high stability and high reliability at high voltage are required.
2. Safety component in combination with high voltage.
3. High voltage transformer.
4. High voltage bleeders.
5. Cascade switches.
