Feature:

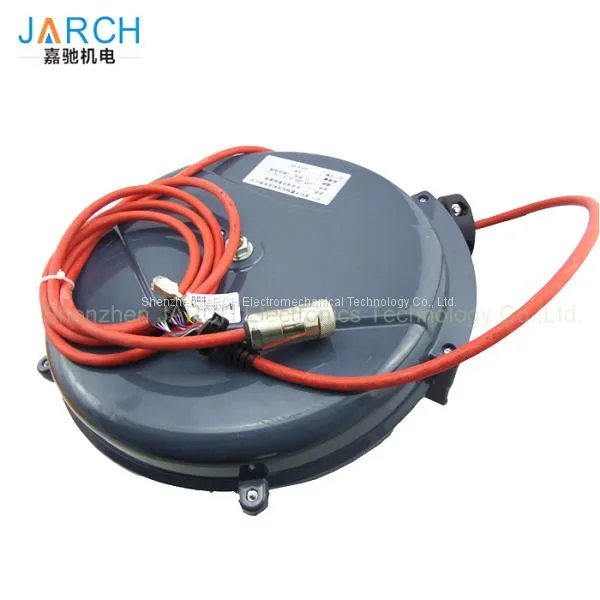

Item name:robot control system cable reel
Signal:20 signals,1 Gigabit
Hose length:10-20m
Application:Robot control system
Spring Grounding Reel Water Hose Reel Retractable hose reel
Benefits
***Reinforced steel - The robotically welded steel base offers maximum strength and consistent quality.
***Heavy duty collector ring - A robust collector ring assures maximum conductivity current flow.
***Long life drive spring - Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
***Quality finish and corrosion resistant - Individually powder coated components offer the maximum protection from premature corrosion.
Be sure reel base is securely grounded to mounting surface. Check for continuity following installation. On painted surfaces, remove paint at bolt location, use external tooth lockwashers or run ground wire from reel base to grounded object. Failure to ground will prevent reel from performing its intended function and could result in personal injury.
Mount reel to grounded, metal surface using four holes in mounting base. To minimize wear on cable and cable guide, reel should be
mounted in direct line with work so that cable is pulled out as straight as possible during use. See figures 1 & 2.
Application
| Packaging Details: | Standard Export carton Package |
| Delivery Details: | Delivery time for Sample: 3 days / Delivery time for Order depends on quantity Shipping:BY DHL, FedEx, UPS or TNT...... |
Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly* until loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.
To reduce spring tension:
This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.
*For Series D9000 reels, you will have to remove the bumper and control handle then feed end of hose through roller bracket assembly to add or remove wraps of hose from the reel drum.
2.How do I install a new drive spring and set pre-turns?
We have several different types of spring driven reels. Each require a slightly different set of instructions. For "How-To" instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.
For how many wraps of "pre-tension" to put on the reel, please reference the chart below.
| Spring Number | Wraps Required |
| S400030 | 18 |
| S404230 | 13 |
| S504240 | 19 |
| S505740 | 13 |
| S503755 | 21 |
| S600050 | 21 |
| S600625 | 13 |
| S600620 | 19 |
| S504230 | 17 |
| 602718-80 | 33 |
| 602720-100 | 27 |
| 602720-70 | 25 |
| 602721-80 | 21 |
| 602733 | 33 |
3.Can my spring driven reel be made "constant tension"?
While most JARCH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.
Please contact Reelcraft Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.
4.Reel will not latch
This could mean it has a broken latch spring, bent latch pawl or latch plate. The broken part(s) will need to be replace.
If you have any questions, please contact us without any hesitation.
|
