Safety Tool Clip Cable Stop Heavy Duty Spring Retractable Tool Balancer
- 10000 Set / Sets per Month
- Shenzhen
- T/T D/P D/A Credit Card PayPal Other
- 10 days
- Long life through Bore slipring 50mm 36 circuits hole slip rings
- 300RPM Pneumatic Rotary joint electrical flange type slip ring
- Rotary union electrical flange type Pneumatic slip ring connector for large equipment
- High Current Slip Ring Flanges slip ring rotary joint for cnc tour machine
- 4 Circuits 200A Rotary Joint High Current Slip Ring supplier for lazer cutting metal machine
- 12A Signal big current flange mounted automation slip ring electrical connectors
Product Details
Brand Name: | JARCH | Place of Origin: | China | Model Number: | TBL 15 |
Type: | Cable Reel | Application: | Instrumentation | Female End Type: | Stripped |
Male End Type: | DC Plug |
Product Description
JARCH's Tool balancers make tools nearly weightless, reducing operator fatigue. JARCH’s tool balancers also improve safety and ergonomics and helps prevent tools from being accidentally dropped, reducing tool damage. The cable lengths listed are "active" or "working" cable. Safety tool clip and cable stop included. |
Weight | 10 lbs |
---|---|
Series | TB |
Min - Max Load | 10 – 15 lbs |
Cable Length | 8' |
Ratchet Lock | Yes |
Reel Grade | Heavy Duty |
Max Temperature | 150 °F |
UPC | 699567002376 |
JARCH Hose reel Spring Retractable Tool Balancer, 6' feet, Holds 1.5-3.0 lbs, Cable Included reels
Benefits
***Balances the weight of assembly tools, making them nearly weightless.
***Increases productivity by keeping tools positioned for immediate use with minimal operator motion.
***Reduces tool damage by preventing tools from being accidentally dropped.
***Reduces operator fatigue and improves safety and ergonomics.

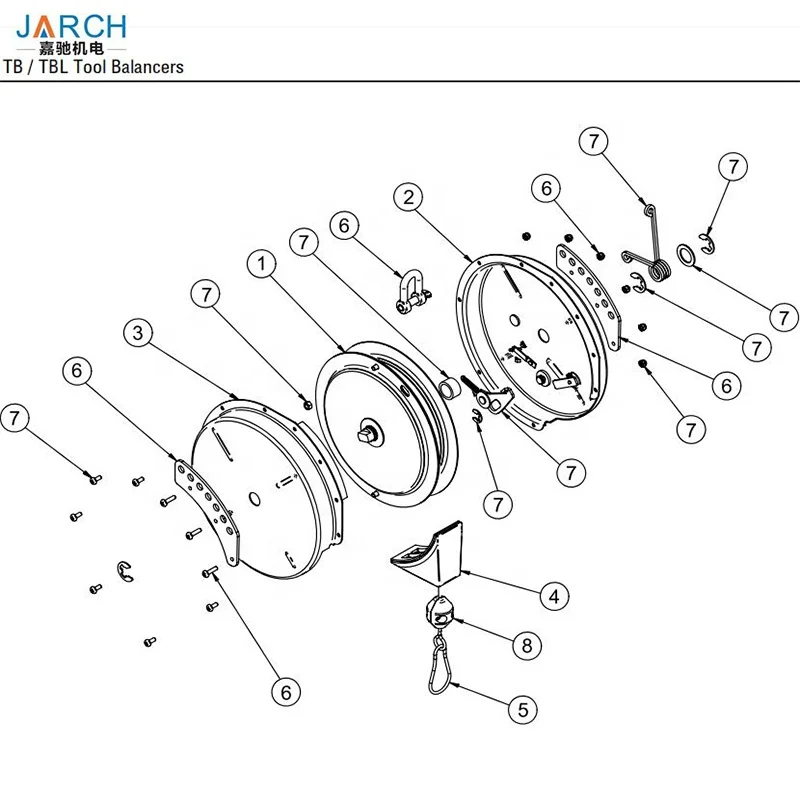

CAD Drawings
Installation
CAUTION
Do not pull cable down. It is spring loaded and could cause injury if allowed to snap back. (Figure 2a and 2b)
Spring Grounding Reel Water Hose Reel Retractable hose reel
If you have any questions, please contact us without any hesitation.
Shenzhen JARCH Electronics Technology Co.,Ltd.
Main Item list: slip ring,rotary union,fiber optic rotary joint(FORJ),hose reel/cable reel,carbon brush,brush holder...
Customer Service: ATTN: Ms.Kris Yao E-mail: krisszjarch.cn Phone&WhatsApp:86-13929708571 Skype/Kakao: krisyao313 Wechat: laoyao313 QQ: 3003854385
| Scan the Wechat in here |
Packaging Details: | Standard Export carton Package |
Delivery Details: | Delivery time for Sample: 3 days / Delivery time for Order depends on quantity Shipping:BY DHL, FedEx, UPS or TNT...... |
Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly* until loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.
To reduce spring tension:
This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.
*For Series D9000 reels, you will have to remove the bumper and control handle then feed end of hose through roller bracket assembly to add or remove wraps of hose from the reel drum.
2.How do I install a new drive spring and set pre-turns?
We have several different types of spring driven reels. Each require a slightly different set of instructions. For "How-To" instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.
For how many wraps of "pre-tension" to put on the reel, please reference the chart below.
Spring Number | Wraps Required |
S400030 | 18 |
S404230 | 13 |
S504240 | 19 |
S505740 | 13 |
S503755 | 21 |
S600050 | 21 |
S600625 | 13 |
S600620 | 19 |
S504230 | 17 |
602718-80 | 33 |
602720-100 | 27 |
602720-70 | 25 |
602721-80 | 21 |
602733 | 33 |
3.Can my spring driven reel be made "constant tension"?
While most JARCH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.
Please contact Reelcraft Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.
4.Reel will not latch
This could mean it has a broken latch spring, bent latch pawl or latch plate. The broken part(s) will need to be replace.
