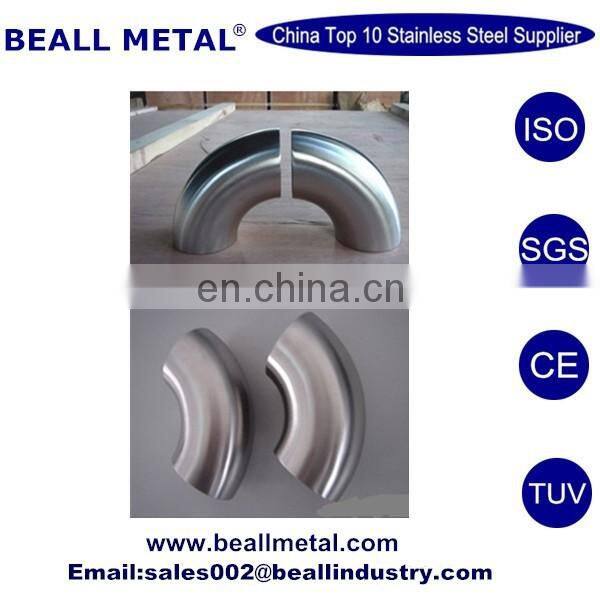

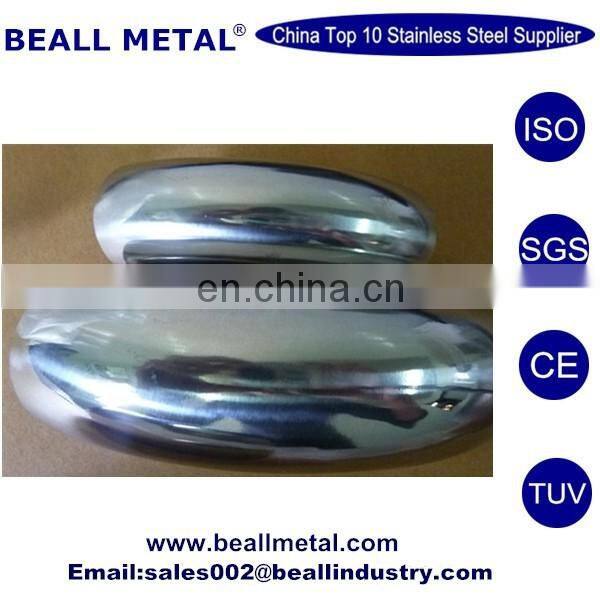

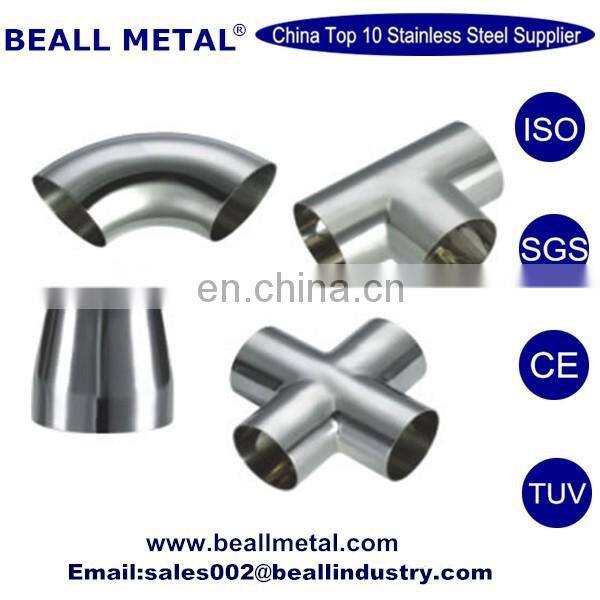

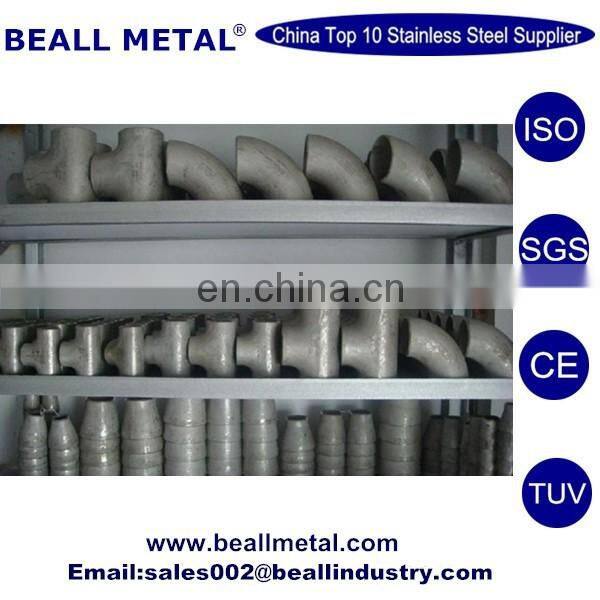

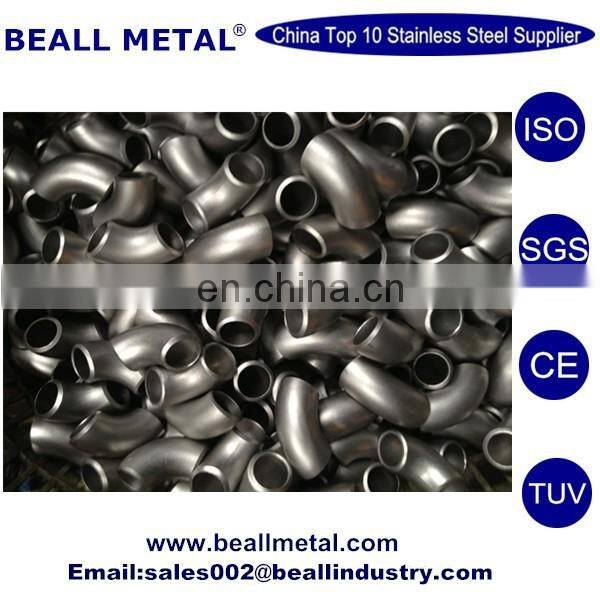

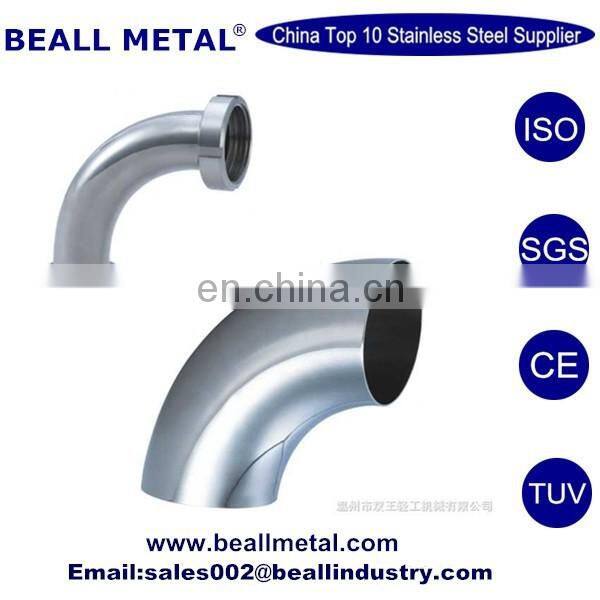

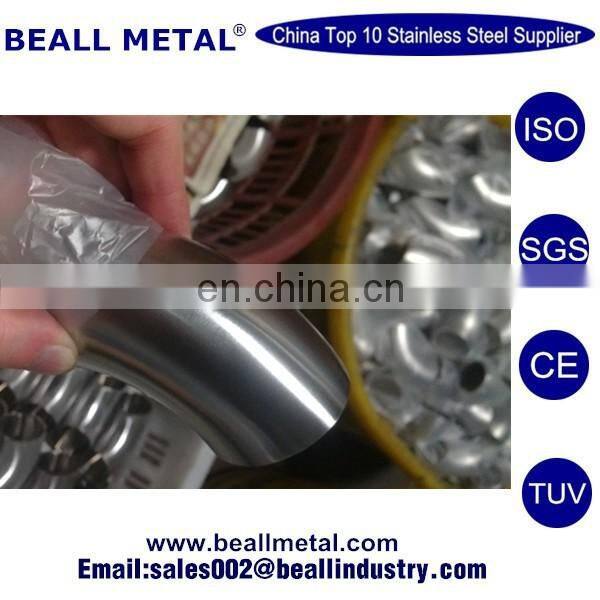

ANSI 304 316 Stainless Steel Threaded/screwed Pipe Fittings, Including Elbow, Tee, Cross, Union, Coupling,

ANSI 304 316 Stainless Steel Threaded/screwed Pipe Fittings, Including Elbow, Tee, Cross, Union, Coupling, thumbnail-1
ANSI 304 316 Stainless Steel Threaded/screwed Pipe Fittings, Including Elbow, Tee, Cross, Union, Coupling, thumbnail-2
ANSI 304 316 Stainless Steel Threaded/screwed Pipe Fittings, Including Elbow, Tee, Cross, Union, Coupling, thumbnail-3
ANSI 304 316 Stainless Steel Threaded/screwed Pipe Fittings, Including Elbow, Tee, Cross, Union, Coupling, thumbnail-4
ANSI 304 316 Stainless Steel Threaded/screwed Pipe Fittings, Including Elbow, Tee, Cross, Union, Coupling, thumbnail-5
ANSI 304 316 Stainless Steel Threaded/screwed Pipe Fittings, Including Elbow, Tee, Cross, Union, Coupling, thumbnail-6
ANSI 304 316 Stainless Steel Threaded/screwed Pipe Fittings, Including Elbow, Tee, Cross, Union, Coupling, photo-1
ANSI 304 316 Stainless Steel Threaded/screwed Pipe Fittings, Including Elbow, Tee, Cross, Union, Coupling, photo-2
ANSI 304 316 Stainless Steel Threaded/screwed Pipe Fittings, Including Elbow, Tee, Cross, Union, Coupling, photo-3

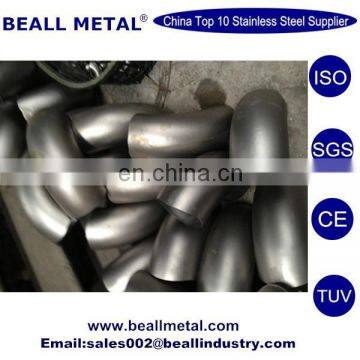

ANSI 304 316 Stainless Steel Threaded/screwed Pipe Fittings, Including Elbow, Tee, Cross, Union, Coupling, photo-4
ANSI 304 316 Stainless Steel Threaded/screwed Pipe Fittings, Including Elbow, Tee, Cross, Union, Coupling, photo-5

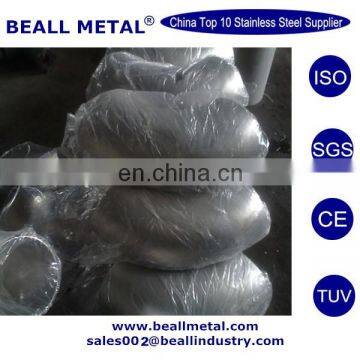

ANSI 304 316 Stainless Steel Threaded/screwed Pipe Fittings, Including Elbow, Tee, Cross, Union, Coupling, photo-6
US$ 1 - 10 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
Beall
Place of Origin:
Jiangsu, China
Model Number:
304 316 316l 310
Contact Supplier Request Quote Chat Now
International Trading (Tianjin) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Beall
Place of Origin Jiangsu, China
Model Number 304 316 316l 310
Material Stainless Steel
Shape Equal

   Diary pipe fittings stainless steel


Product Description





Specification Type Data
Size 90 degree Long/Short Radius 45 degree Long Radius Seamless 1/2”-20”(DN15-DN500) Welded 1/2”-48” (DN15-DN1200)

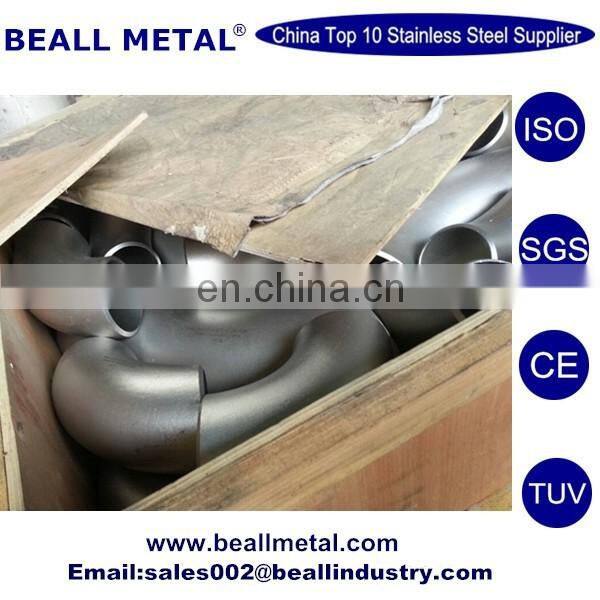

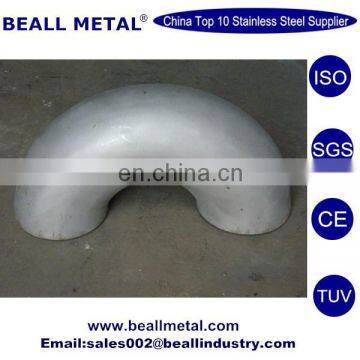

  180 degree Return Band Seamless 1/2”-4”(DN15-DN100)
Wall Thickness 90 degree Long/Short Radius 45 degree Long Radius SCH5S-SCH160

  180 degree Return Band SCH5S-SCH80S
Material 304, 304L, 321, 316, 316L, etc.
Standard GB/T12459, GB/T13401, SH3408, SH3409, HG/T21635
  HG/T21631, ASME B16.9, MSS SP-43, DIN 2605, JIS B2313

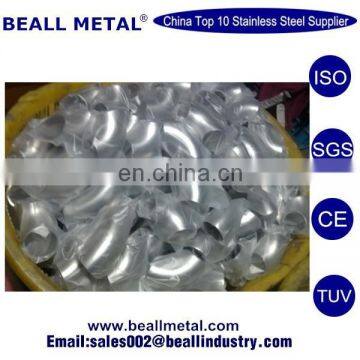

Types of Stainless Steel Butt Welded Elbow:

Technical Parameter:

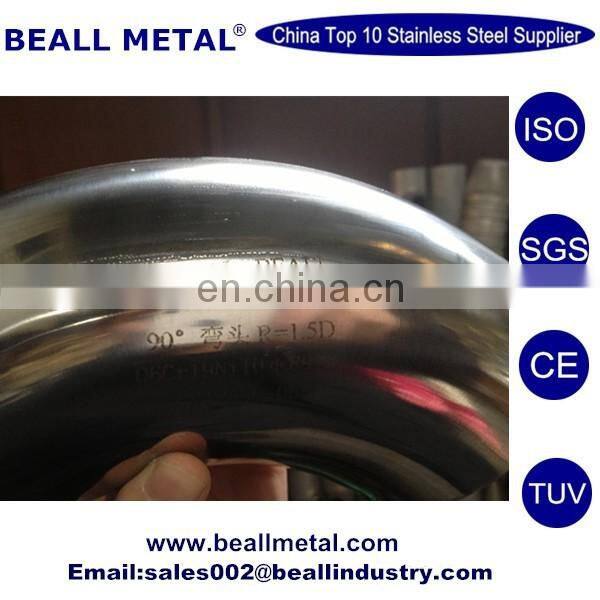

Butt-welding Elbows ANSI B16.9
Nominal Diameter
 Outside Diameter/mm Center to End/mm
45 degree Elbow 90 degree Elbow
DN OD Long Radius Long Radius Short Radius
1/2 21.3 15.7 38.1 -
3/4 26.7 19.1 38.1 -
1 33.4 22.4 38.1 25.4
1 1/4 42.2 25.4 47.8 31.8
1 1/2 48.3 28.4 57.2 38.1
2 60.3 35.1 76.2 50.8
2 1/2 73 44.5 95.3 63.5
3 88.9 50.8 114.3 76.2
3 1/2 101.6 57.2 133.4 88.9
4 114.3 63.5 152.4 101.6
5 141.3 79.2 190.5 127
5 168.3 95.3 228.6 152.4
8 219.1 127 304.8 203.2
10 273.1 158.8 381 254
12 323.9 190.5 457

Specifications

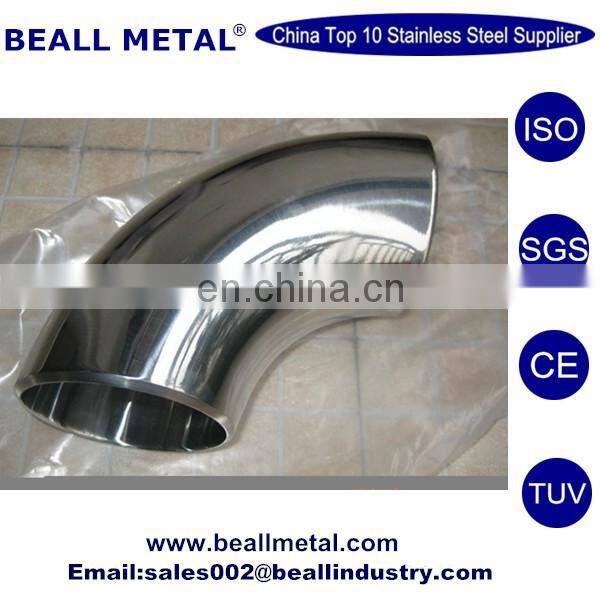

Stainless Steel Elbow with 90 deg Casting, Available in 1/8 to 4-inch Sizes
Model Number: elbow-SS304-BSP-1
Sizes: 1/8 to 4

stainless steel elbow

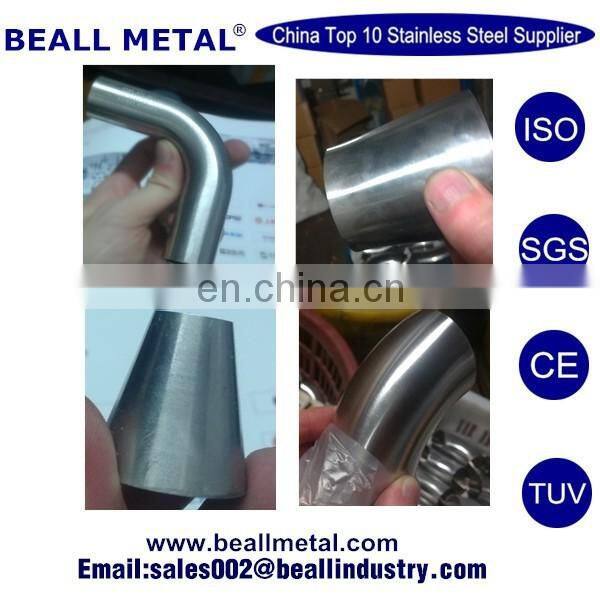

Stainless Steel Pipe Fitting



Stainless Steel Elbow



Standard

ASME SA403,BS16.9,GB12459,EN,DIN,JIS

Material

304,304L,310S,309S,316,316L,317,317L,321201, 202, etc.

Sizes

1/2'~50'(DN10~DN1200)

Wall Thickness

Sch5X~SchXXS

Bend Degree

45°,90°,180°

Type

Elbow, reducer, cross, pipe holder, manhole cover, stub,clamp,union ,valve etc

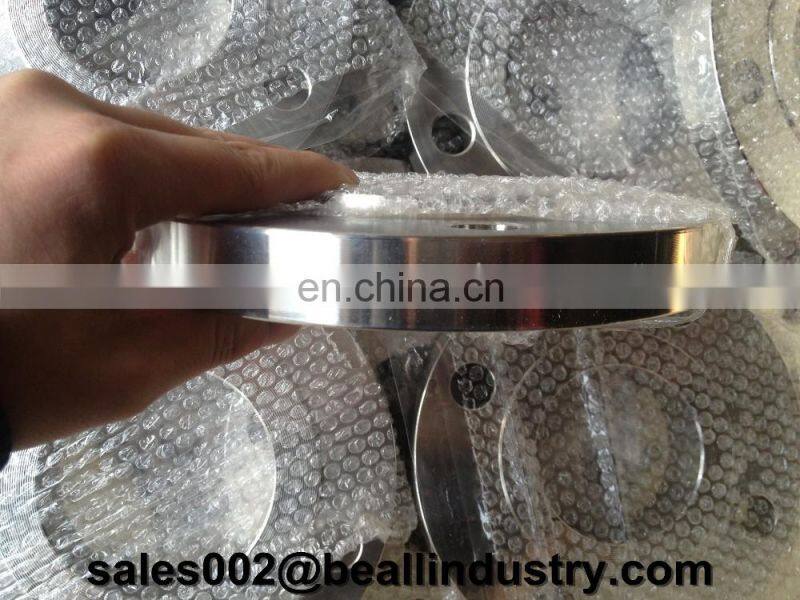

Steel Flange



Standards

ASTMA182,ANSI B16.9, ANSI B16.28, EN10253-2, EN1092-1,JIS B2313,DIN2605,

Stainless Steel

304, 304L, 310S, 309S, 316, 316L, 317, 317L, 321, 201,etc.

Carton Steel

ST35, RST37, S235JR, Q235, SS400

Sizes

1/2" to 60" (DN8 to DN1500)

Pressure

Class

150LB, 300LB, 400LB, 600LB, 900LB,1500LB, etc.

Type

Plate type Flat Welding Flange,Slip on Neck Flange,Welding Neck Flange,

Blind Flange,Socket Welding Flange,Thread Flange,Screwed Flange,Lap Joint



Stainless Steel Reducer



Standard

DIN 2527,2573,2576,2642,2633,JIS B2311,ASME 16.9

Material

304, 304L, 310S, 309S, 316, 316L, 317, 317L, 321201, 202,

Technique

Forged

Size

DN15~DN1200 (1/2'~48')

Thickness

SCH5~XXS

ANSI 304 316 stainless steel threaded/screwed pipe fittings, including elbow, tee, cross, union, coupling,ANSI 304 316 stainless steel threaded/screwed pipe fittings, including elbow, tee, cross, union, coupling,ANSI 304 316 stainless steel threaded/screwed pipe fittings, including elbow, tee, cross, union, coupling,ANSI 304 316 stainless steel threaded/screwed pipe fittings, including elbow, tee, cross, union, coupling,ANSI 304 316 stainless steel threaded/screwed pipe fittings, including elbow, tee, cross, union, coupling,ANSI 304 316 stainless steel threaded/screwed pipe fittings, including elbow, tee, cross, union, coupling,ANSI 304 316 stainless steel threaded/screwed pipe fittings, including elbow, tee, cross, union, coupling,ANSI 304 316 stainless steel threaded/screwed pipe fittings, including elbow, tee, cross, union, coupling,ANSI 304 316 stainless steel threaded/screwed pipe fittings, including elbow, tee, cross, union, coupling,ANSI 304 316 stainless steel threaded/screwed pipe fittings, including elbow, tee, cross, union, coupling,ANSI 304 316 stainless steel threaded/screwed pipe fittings, including elbow, tee, cross, union, coupling,ANSI 304 316 stainless steel threaded/screwed pipe fittings, including elbow, tee, cross, union, coupling,ANSI 304 316 stainless steel threaded/screwed pipe fittings, including elbow, tee, cross, union, coupling,ANSI 304 316 stainless steel threaded/screwed pipe fittings, including elbow, tee, cross, union, coupling,
