Help CenterDin2391 Precision St51 H7 H8 H8 H9 Tolerance Hydraulic Cylinder Honed Tube
Related Products
-
Astm 106 b Seamless Carbon Hydraulic PipeUS$ 1,200 - 1,300MOQ: 1000 Kilograms -
Xinpeng Made of St52 Hydraulic Cylinder PipeUS$ 980 - 1,000MOQ: 2 Tons
-
Precision Hydraulic Cylinder Using Cold Drawn and Cold Rolled TubeUS$ 980 - 1,000MOQ: 2 Tons
-
Standard Stainless Steel Hydraulic Cylinder TubeUS$ 1,260 - 1,450MOQ: 2 Tons
-
Auto Parts STKM11A Cold Drawn Hydraulic Cylinder PipeUS$ 800 - 1,100MOQ: 5 Metric Tons
YanTai XinPeng Steel Pipe Co.,Ltd is established in December 1992.
Distribution,agency services:
1. Distribution: Various specifications and materials of seamless steel tubes produced by steel tube plants, such as Baosteel, Baogang Group, Hubei Xinyegang Steel, Tianjin Pipe, Hu’nan Hengyang Valin Steel Tube, PanGang Group Chengdu Iron & Steel, Shandong Yantai General Steel Tube Plant, Yantai Lubao, etc.
2. Agent service: Hydro-cylinder used high precision cold drawn welded tube (DOM) produced by Italy Marcegaglia.
Adhere to the business concept of “integrity”, “the Xinpeng Staff” are dedicated to building the brand of Xinpeng Steel Tube with high quality products, and preserving the enterprise image of Xinpeng Steel Tube with perfect service and supreme credibility.
FACTORY AND PRODUCT PICTURE

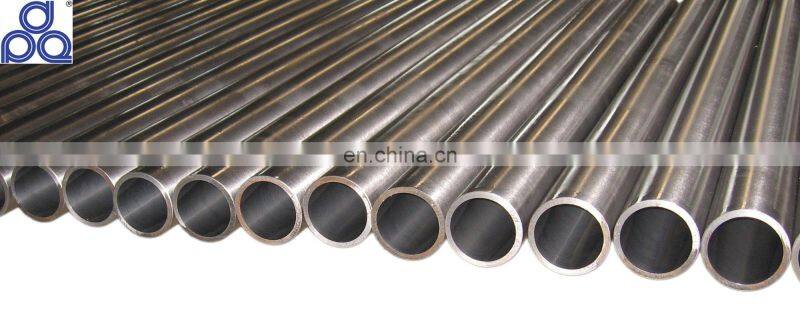

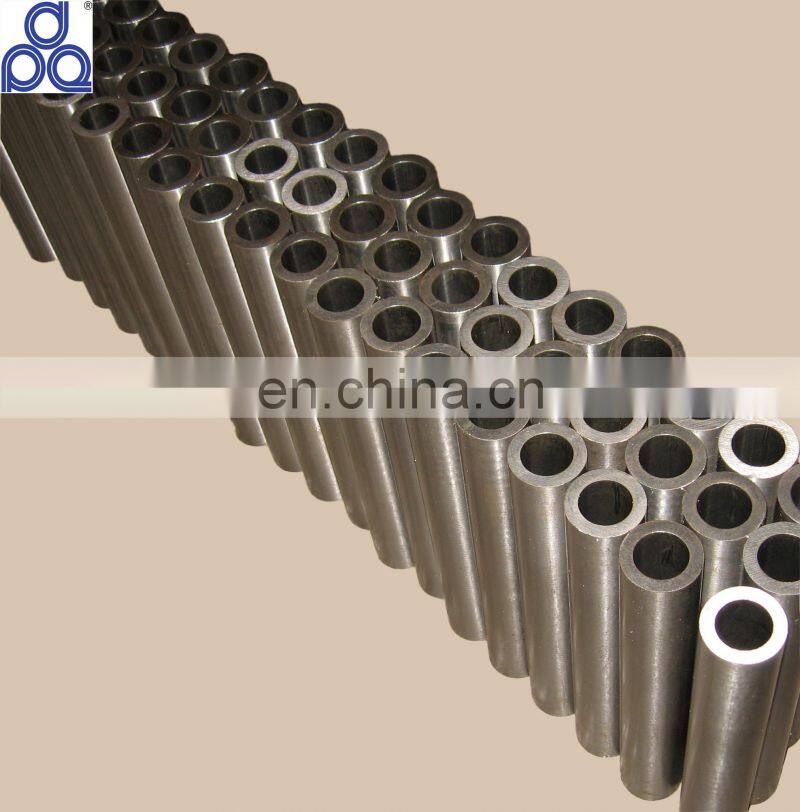

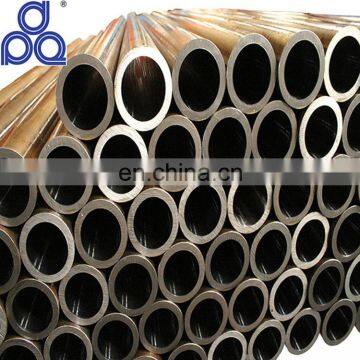

HONED SEAMLESS TUBE
Honed Tube
* Grade: ST52, 4140, CK45, Stainless Steel, etc
* ID: 20-60mm
*Length: 3 meters ,6 meters
*Streightness: 0.25/1000
*Tolerence WXT: DIN 2391
*Tolerence INT: H7 H8 H9 H10
*Roughness (Ra): 0.2 to 0.4μ
Type: Cold Drawing, stress release, BK+S, honing or Skiving
honed tube specifications:
Product name |
45#cold drawn cylinder honed tube |
Steel Grade |
45#,20#,16Mn,27SiMn, ST-52,,no-alloy steel |
specifications |
O.D.:40-325mm(H7-H9) ,W.T.:3-30mm, L:fixed or random(1-10m) |
Straightness |
0.25 /1000 |
Roughness(Ra) |
0.2 to 0.4micron |
Processing Type |
cold drawn, honed |
Marking |
JW, ID, OD |
Package |
banding with steel strips, braiding parcel at outside |
Conservation |
Anti rust oiled coating on the inside and outside of the surface, plastic caps at both ends |
Impact test |
(-20°C, 27 J ,only for special requirement) |
ID size |
ID deviation (mm) |
|||
|
H7 |
H8 |
H9 |
H10 |
30 |
+0.021 0 |
+0.033 0 |
+0.052 0 |
+0.084 0 |
>30~50 |
+0.025 0 |
+0.039 0 |
+0.062 0 |
+0.100 0 |
>50~80 |
+0.030 0 |
+0.046 0 |
+0.074 0 |
+0.120 0 |
>80~120 |
+0.035 0 |
+0.054 0 |
+0.087 0 |
+0.140 0 |
>120~180 |
+0.040 0
|
+0.063 0 |
+0.100 0 |
+0.160 0 |
>180~250 |
+0.046 0 |
+0.072 0 |
+0.115 0 |
+0.185 0 |
>250~315 |
+0.052 0 |
+0.081 0 |
+0.130 0 |
+0.210 0 |
>315~400 |
+0.0527 0 |
+0.089 0 |
+0.140 0 |
+0.230 0 |
Guaranteed
If products’ quality doesn’t match the description we give or promise before you place your order,we promise 100% refund.
(1): High quality products with reasonable price.
(2): We are factory and trading company.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements. Free sample
(7): We have more than 24years experience in exporting products to worldwide countries, can provide the high quality products.
(8): We have five thousand tons of stock in warehouses with abundant capital. Furthermore, we offer charge sales, credit and 7-day 24-hour services.
(9): Wide excellent experiences with after-sale service.
