Seamless Steel AISI/SAE/ASTM Honed Tube Exporter

Seamless Steel AISI/SAE/ASTM Honed Tube Exporter photo-1
Seamless Steel AISI/SAE/ASTM Honed Tube Exporter photo-2
Seamless Steel AISI/SAE/ASTM Honed Tube Exporter photo-3
Seamless Steel AISI/SAE/ASTM Honed Tube Exporter photo-4
Seamless Steel AISI/SAE/ASTM Honed Tube Exporter photo-5
Seamless Steel AISI/SAE/ASTM Honed Tube Exporter photo-6
US$ 1.5 - 1.6 MOQ: 5000 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Certification:
ISO
Thickness:
2, 30
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/ YANTAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Thickness 2, 30
Application Hydraulic Pipe
Technique Cold Rolled
Alloy Or Not Non-alloy
Secondary Or Not Non-secondary
Section Shape Round

Seamless Steel AISI/SAE/ASTM Honed Tube Exporter

Seamless Steel AISI/SAE/ASTM Honed Tube Exporter

Our company mainly produces various specifications of cold drawn,rolled

precision steel tube,hydraulic cylinder tube and SRB Tube, which are widely

used in such industries as hydro-cylinder, automobile, engineering machinery,

textile machinery, printing machinery, oil drilling, etc. Our company is also the

distributor of several domestic well-known steel tube plants in Shandong, and

mainly distributes seamless steel tubes of all kinds of materials.

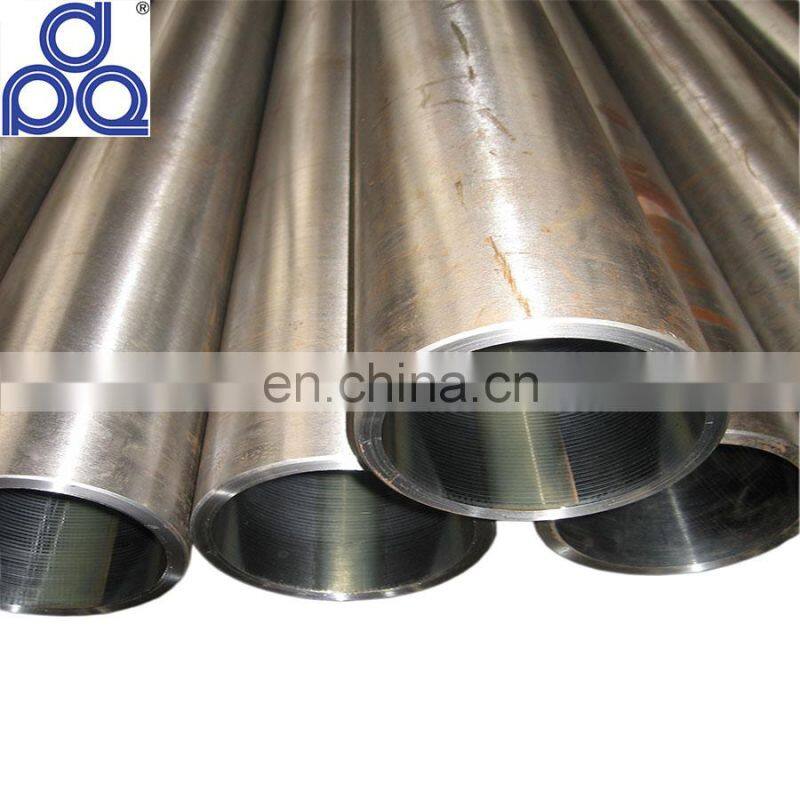

seamless tube

Seamless steel tube, made of whole metal, without seams, so

called seamless steel tube.According to the production method,

seamless tube divided hot rolled tube, cold rolled tube, cold

drawing tube, extruded tube, top tube, etc .Our product is cold

rolled or cold drawing then honed or SRB(skived rolled burnished) ,

the surface polished some lathed.

Seamless steel pipe is mainly used for petroleum geological

drilling pipe, petroleum chemical cracking pipe, boiler tube,

bearing tube and automobile, tractor and aviation with high

precision structural steel pipe.

Seamless Steel AISI/SAE/ASTM Honed Tube Exporter





USED FOR HYDRAULIC CYLINDER TUBE

Seamless Steel AISI/SAE/ASTM Honed Tube ExporterSeamless Steel AISI/SAE/ASTM Honed Tube Exporter











Product name

 hydraulic  honed tube

Steel Grade

45#,20#,16Mn,27SiMn, ST-52,,no-alloy steel

specifications

O.D.:40-325mm(H7-H9) ,W.T.:3-30mm, L:fixed or random(1-10m)

Straightness

0.25 /1000

Roughness(Ra)

0.2 to 0.4micron

Processing Type

cold drawn, honed

Marking

JW, ID, OD

Package

banding with steel strips, braiding parcel at outside

Conservation

Anti rust oiled coating on the inside and outside of the surface, plastic caps at both ends

Impact test

(-20°C, 27 J ,only for special requirement)





Honed tube Tolerance in Dimension

OD

GB/T3639(GB8713)

DIN2391(EN10305)

Our Tolerence

Best Quality

4-30mm

±0.10mm

±0.08mm

±0.05mm

±0.02mm

31-40mm

±0.15mm

±0.15mm

±0.05mm

±0.03mm

41-50mm

±0.20mm

±0.20mm

±0.05mm

±0.03mm

51-60mm

±0.25mm

±0.25mm

±0.08mm

±0.03mm

61-70mm

±0.30mm

±0.30mm

±0.10mm

±0.05mm

71-160mm

±0.30mm

±0.30mm

±0.10mm

±0.05mm

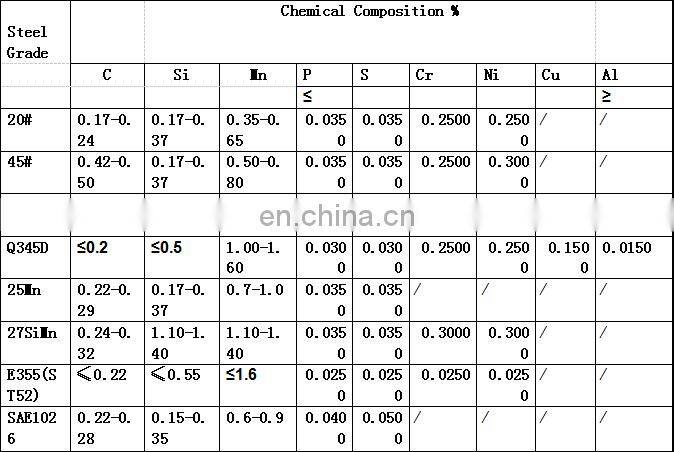

                                     Chemical composition

Seamless Steel AISI/SAE/ASTM Honed Tube Exporter

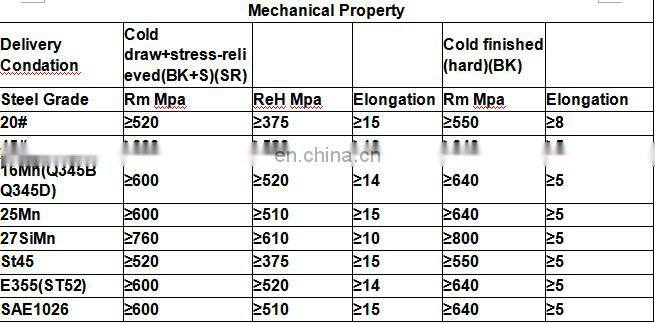

                                        Mechanical property

 Seamless Steel AISI/SAE/ASTM Honed Tube Exporter

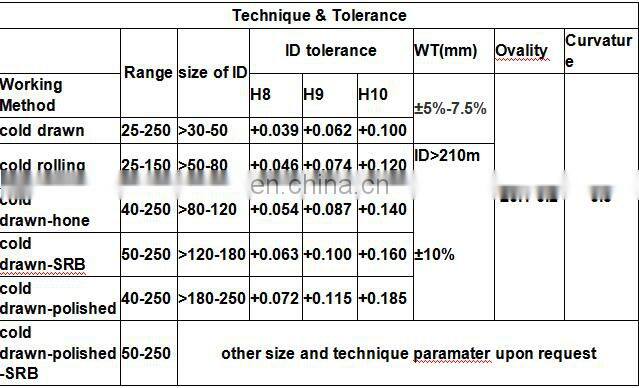

                                 Technique &Tolerance

Seamless Steel AISI/SAE/ASTM Honed Tube Exporter

 Seamless Steel AISI/SAE/ASTM Honed Tube Exporter





Seamless Steel AISI/SAE/ASTM Honed Tube Exporter



Packing Picture

Seamless Steel AISI/SAE/ASTM Honed Tube Exporter



Seamless Steel AISI/SAE/ASTM Honed Tube Exporter



Seamless Steel AISI/SAE/ASTM Honed Tube Exporter



 APPLICATION

 Seamless Steel AISI/SAE/ASTM Honed Tube Exporter



FAQ



1.Are you a trading company or manufacturer?

We are the professional manufacturer of precision seamless steel pipe since the year 1992.



2. How can I get the price?

We usually quote within 24 hours after we get your inquiry by telling us the material, out diameter,

wall thickness length, quantity and application of the steel pipe which you need.

If you are very urgent to get the price.

please inform us in email so that we will regard your inquiry priority.



3. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. we will provide you

the sample for free, however we could only make sure the same material, the dimension will be

much similar as your request but not same.

And customer should afford the charge of shipment.



4. What about the lead time for mass production?

 Honestly, it depends on the order quantity and the season you place the order.

if normal order 25-30days.



5. What is your terms of delivery?
We accept FOB CIF EXW CFR.

Our Services

1. 24hours service via phone ,wechat alibaba trade manager.

2. Good package and best container method.

3. Professional explanation with professional online service

4. Factory manufacturer can assure the best quality.

5. Good delivery time as 15-30 days .

6. 3 years product assurance after usuage.

7. Good quality process in our own factory,

   each lot tube have their own 5 years'life card.
