Malleable Iron Pipe Short Tee
Malleable Iron Pipe Clamps
|

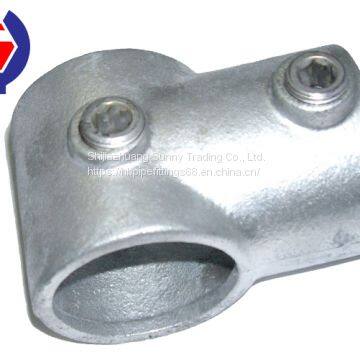

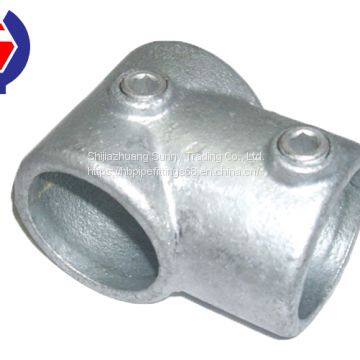

Malleable Iron Pipe Clamps Type 101 Short Tee 90° butt joint, often used to join intermediate uprights to top rails and middle rails to end uprights on level sites. This pipe clamp cannot be used where through tube (horizontal) has to be joined within the fitting (See pipe clamp 104). | ||
Body Material Standard |
Malleable Iron, meet standard ASTM A197 |
|
Screw |
Stainless and Carbon Steel |
|
Tensile Strength |
>=350Mpa |
|
Elongation |
>=10% |
|
Hardness |
HB |
|
Size Available |
AA to E (OD size 27-60 MM) |
|
Surface Treatment |
Hot Dipped Galvanized, Black, Zinc Plated & Powder Coated |
|
Pipe Clamp Size |
Nominal Bore |
Outside Diameter |
AA21 |
1/2’’ |
21.3mm |
A27 |
3/4’’ |
26.9mm |
B34 |
1’’ |
33.7mm |
C42 |
1-1/4’’ |
42.4mm |
D48 |
1-1/2’’ |
48.3mm |
E60 |
2’’ |
60.3mm |
Malleable Iron Pipe Clamps are easlily identified by a type number of each design eg. 125 followed by a size code eg. D48, the latter part of which corresponds with the approximate outside diameter of the tube to be used (48.3mm=1-1/2" nominal bore in this case)Hence a 90° elbow suitable for an 1-1/2" norminal bore tube in this example would be denoted as a 125-D48.
