Malleable Iron Long Tee
Malleable Iron Pipe Clamps
|

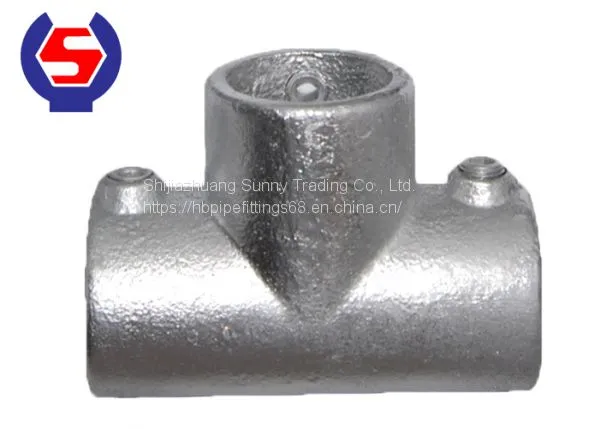

Malleable Iron Pipe Clamps Type 104 Long Tee 90° joint, often used to join intermediate uprights to top rails on level sites. This pipe clamp can be used where through tube (horizontal) has to be joined within the fitting. Where such a joint is not required, type 101 can often be used as an alternative. | ||
Body Material Standard |
Malleable Iron, meet standard ASTM A197 |
|
Screw |
Stainless and Carbon Steel |
|
Tensile Strength |
>=350Mpa |
|
Elongation |
>=10% |
|
Hardness |
HB |
|
Size Available |
AA to E (OD size 27-60 MM) |
|
Surface Treatment |
Hot Dipped Galvanized, Black, Zinc Plated & Powder Coated |
|
Pipe Clamp Size |
Nominal Bore |
Outside Diameter |
AA21 |
1/2’’ |
21.3mm |
A27 |
3/4’’ |
26.9mm |
B34 |
1’’ |
33.7mm |
C42 |
1-1/4’’ |
42.4mm |
D48 |
1-1/2’’ |
48.3mm |
E60 |
2’’ |
60.3mm |
Malleable Iron Pipe Clamps are easlily identified by a type number of each design eg. 125 followed by a size code eg. D48, the latter part of which corresponds with the approximate outside diameter of the tube to be used (48.3mm=1-1/2" nominal bore in this case)Hence a 90° elbow suitable for an 1-1/2" norminal bore tube in this example would be denoted as a 125-D48.
Malleable Iron Pipe Clamps are used for a versatile, multi-purpose system. The flexibility of the system allows complex structures to be assembled in a quick and efficient manner.
