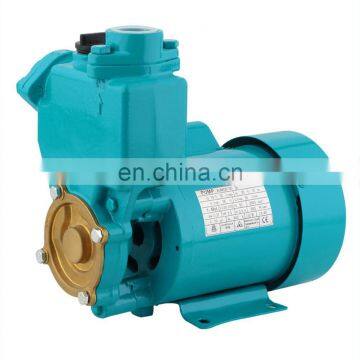

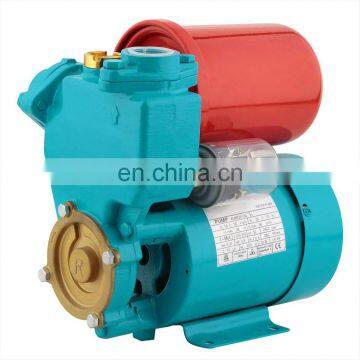

small self priming electric water pump for domesitic water supply
| |
| Model | Power | Inlet (Inch) | Outlet (Inch) | Max.Flow (L/min) | Max.Head (m) | Dim (mm) | G.W. (kg) | |
| KW | HP | |||||||
| PS-130(AUT) | 0.37 | 0.5 | 1 | 1 | 35 | 28 | 205x210x280 | 10.4 |
| PS-126 | 0.37 | 0.5 | 1 | 1 | 35 | 35 | 280x185x265 | 9 |
| GP-126 | 0.37 | 0.5 | 1 | 1 | 35 | 28 | 280x185x265 | 9 |
| 1.Pump material |
| Pump Body: Cast Iron |
| Impeller: Brass |
| Motor bracket:Aluminum |
| Shaft with rotor:Stainless Steel or Cs45# |
| Mechanical Seal: Ceramic-Graphite |
| Copper winding |
| 2. Operation Conditions |
| Max.Liquid temperature up to 40C |
| Max.Ambient temperature up to 40C |
| Max.suct:+9m continuous duty |
| 3.Pump motor |
| 2-pole induction motor:50Hz/60Hz |
| Insulation:Class B |
| Protection:IP44 |
| With capacitor and thermal overload protection |
| 4.Application |
These pumps are suitable for handing clean water not containing abrasive particles and fluids which are not chemically aggressive to the pump components. Reliable,compact,economical and simple to use.They are particulary suitable for domestic and industrical applications such as water supply for recirculation in air conditioners and refrigerators,industrial water uses in general. And the automatic distribution of water from surge tanks,watering gardens,lifting water from tanks or wells down to 9m depth. The pump is supplied with check valve on the suction side so that no foot valve is required. |
| Work shop area | |||||||||
|
| BAQIU Company Introduction |
1)Taizhou BAQIU electrical and mechanical Co.,LTD which located in the home two of chinese water-Daxi, Wenling China.We are integratd manufactural factory. |
2)Our major productions are all kinds of water pumps.Based on excellent products and good reputation,they have won favorable views from customers both at home and aboard and passed some domestric. |
3)Our products are well sold in more than twenty province and cities in China,and exported to America,Europe, Australia and Southeast Asia etc. |
4)Quality always stands the first and honest is our concept.We provide reasonable price,punctuality and satisfying service.We sincerely welcome all the friends from the world to join in us and develop together. |
