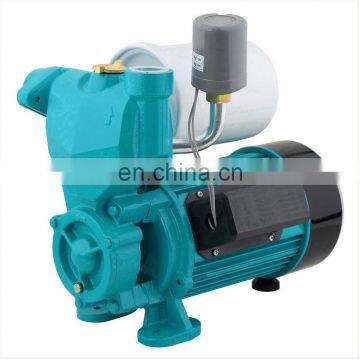

0.37KW 0.5HP electric self priming water pump for agriculture use

Name: 0.37KW 0.5HP electric self priming water pump for agriculture use
Brand: BAQIU
Price: USD $35 - 40 / Piece

FOB Price

USD $35 - $40 / Piece

100 Pieces(Min.Order)

Supply Ability 20000 Carton / Cartons per Month
Port NINGBO
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	BAQIU	Place of Origin:	Zhejiang, China	Model Number:	Water Pump
Power:	Electric
Theory:	Vortex Pump	Standard or Nonstandard:	Standard
Structure:	Single-stage Pump	Pressure:	High Pressure

Product Description

0.37KW 0.5HP electric self priming water pump for agriculture use

1.Application

Clean water, non-aggrassive liquid only without sand or other solid impurities.

Domestic use and irrigation.

Bigger suction with self primng.

Low power.

In particular for delivering water in combination with small pressure sets and for irrigation.

Installed in enclosed places, or at least protected against inclement weather.

2. Operation Conditions

Suction lift up to 8m.

Liquid temperature up to +90℃

Ambient temperature up to +40℃

Max.Working Pressure: 6Bar

3.Pump Motor

2-pole induction motor:50Hz

Insulation:Class B

Protection:IP44

With capacitor and thermal overload protection

4.Pump Material

Pump Body: Cast Iron

Impeller: Brass

Shaft with Rotor: Stainless Steel or Cs45#

Mechanical Seal: Silicon Carbide-graphite.

Copper Winding

Hydraulic Performence Curve

Model	Power		Inlet (inch)	Outlet (inch)	Max. Flow (m³/h)	Max Head (m)	Max Suction	Dim(mm)	G.W(kg)	20’ Loading Qty(PCS)
Model	kw	hp	Inlet (inch)	Outlet (inch)	Max. Flow (m³/h)	Max Head (m)	Max Suction	Dim(mm)	G.W(kg)	20’ Loading Qty(PCS)
1AWZB125	0.125	0.17	1	1	1.8	24	8	280x225x305	9	1470
1AWZB250	0.25	0.34	1	1	2	28	8	280x225x305	10	1470
1AWZB370	0.37	0.5	1	1	2.2	32	8	280x225x305	11	1470
1AWZB550	0.55	0.75	1	1	2.8	38	8	310x235x330	13	1160
1AWZB750	0.75	1	1	1	3	44	8	345x250x335	14.5	960
15AWZB1100	1.1	1.5	1.5	1.5	4.5	50	8	360x280x370	18.5	730
