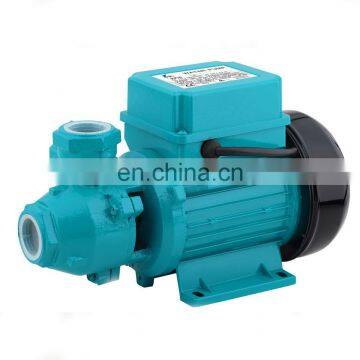

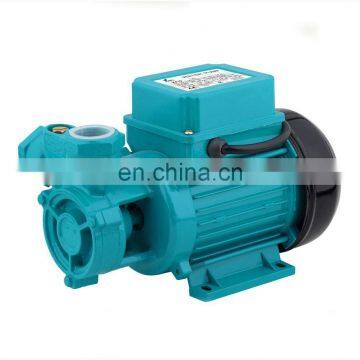

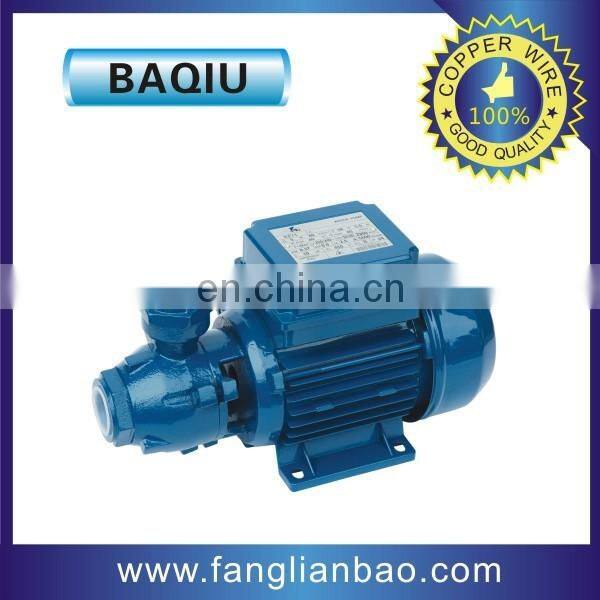

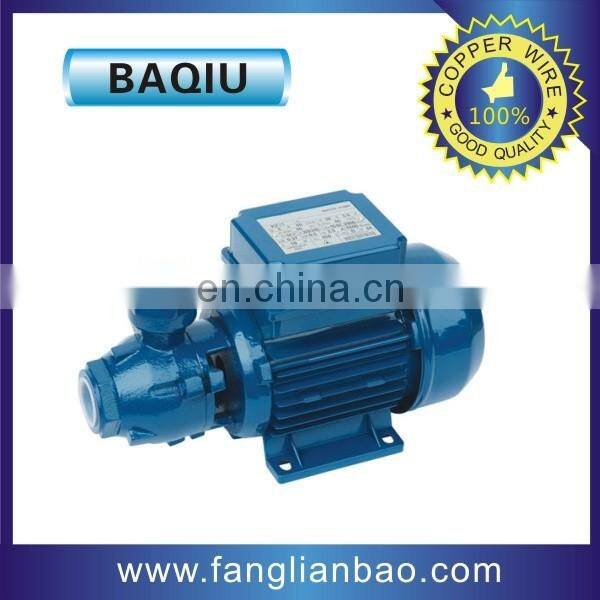

KF Series 0.5hp Single Phase Residential Water Pressure Booster Pump

Name: KF Series 0.5hp Single Phase Residential Water Pressure Booster Pump
Brand: BAQIU
Availability: InStock

FOB Price

US$ 10 - 18 / Piece

100 Pieces(Min. Order)

Port NINGBO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	BAQIU	Place of Origin	Zhejiang, China
Model Number	Pump
Power	Electric
Usage	Water	Theory	Vortex Pump
Standard or Nonstandard	Standard	Structure	Single-stage Pump
Pressure	Low Pressure

Product Description

KF series 0.5hp single phase residential water pressure booster pump

Applications:Product Description

These pump is suitable for handing clean water not containing abrasive particles and fluids which are not chemically aggressive to the pump components.reliable,economical and simple to use,they are suitable for domestic applications and the automatic distribution of water from surge tanks,watering gardens and for boosting insufficient mains water pressure.these pumps should be installed in a covered area,protected against the weather.

INSTRUCTION:

1. stainless steel pump body

2. cast iron motor support

3. brass impeller

4. stainless steel shaft and mecchanical seal

WORKING CONDITION:

1. max temperature of fluid up to +40°C

2. max pressure 10 bar

3. max ambient temperature up to +40°C

Technical Data:
Model	Power		Inlet (inch)	Outlet (inch)	Q.Max (m³/h)	H.Max (m)	S.Max (m)	Packing Size (mm)	G.W(kg)
	(kw)	(hp)
MKF	0.37	0.5	1''	1''	35	35	8	280160190	5.9
KF	0.37	0.5	1''	1''	35	35	8	280160190	5.9

1.Pump material	Hydraulic performance curve
Pump Body : Cast Iron
Impeller : Brass
Motor bracket : Aluminum
Shaft with rotor : Stainless Steel or Cs45#
Mechanical Seal : Ceramic-Graphite
Copper winding
2. Operation Conditions
Suction head up to 8M
Liquid temperature up to 40C
Ambient temperature up to 40C
Max.Pressure : 6Bar
3.Pump motor
2-pole induction motor 50Hz/60Hz
Insulation : Class B
Protection : IP44
With capacitor and thermal overload protection
4.Application
Clean water without abrasive particles, non-aggressive liquid,domestic use
In particular for delivering water in combination with small pressure stes and for irrigation
Installed in enclosed places,or at least protected against inclement weather.

Applied to pumping such liquid which is clean, no solid matter or frictional matter, low viscous, non corrosive, non-crystallizable, chemically neutral and close to water. Such as:

1. Tank filling

2. Domestic water supply

3. Water transfer

4. Pressure boosting

5. Irrigation

◊ Features

100%copper wire

Brass impeller

Cold-rolled silicon steel sheet, with high-speed punching, improve the efficiency and precision.

CNC precision automatic lathe for smoother shaft

Strict test including high-pot testing of stator coil and whole pump, outgassing test and performance test, ect

Anti-rust treatment castings and electrophoresis.

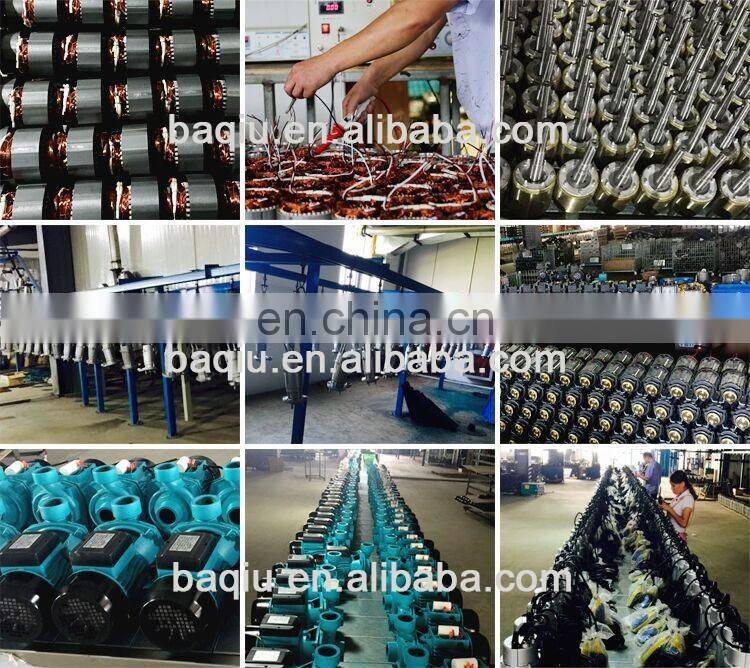

Work shop area

BAQIU Company Introduction

1)Taizhou BAQIU electrical and mechanical Co.,LTD which located in the home two of chinese water-

Daxi,Wenling China.We are integratd manufactural factory.

2)Our major productions are all kinds of water pumps.Based on excellent products and good reputation,they

have won favorable views from customers both at home and aboard and passed some domestric.

3)Our products are well sold in more than twenty province and cities in China,and exported to America,Europe,

Australia and Southeast Asia etc.

4)Quality always stands the first and honest is our concept.We provide reasonable price,punctuality and satisfying

service.We sincerely welcome all the friends from the world to join in us and develop together.

More choices if you like ...

FAQ

1. Q: Are you a pump manufactory or trading company ?

A: We are water pump manufactory. Welcome to visit our factory.

2. Q: What is your MOQ of this item?

A: 50PCS. We offer trial sample and welcome small orders to test our quality.

3. Q: What’s your payment terms?

A: 30% T/T deposit and the balance T/T against copy of BL.

4. Q: What is the delivery time?

A: 30 days after receiving your deposit, 40 days in very busy season.

5. Q: Is it all right to make customer's own brand name ?

A: Yes, welcome.
