1/2hp electric motor pump Clean Water Vortex sprinkler water pump
- 20000 Piece / Pieces per Month
- NINGBO
- T/T Credit Card
- DK series centrifugal high flow 0.75kw clean water pump for domestic use
- 0.5hp electric vortex water pump price for pools ponds and irrigation
- 1 inch home use booster pumps electric peripheral clean water pump
- 0.5hp 0.75hp 1hp Vortex Brass Impeller Peripheral Electric Water Pump
- High Quality Centrifugal Water Peripheral Pumps Vortex Pump For Gardens and Farmland
- 1 Inch 220 Volt 0.5 hp 1hp electric motor vortex water pump for house use
Product Details
Brand Name: | BAQIU | Place of Origin: | Zhejiang, China | Model Number: | Pump |
Power: | Electric | ||||
Usage: | Water | Theory: | Vortex Pump | Standard or Nonstandard: | Standard |
Structure: | Single-stage Pump | Pressure: | Low Pressure |
Product Description

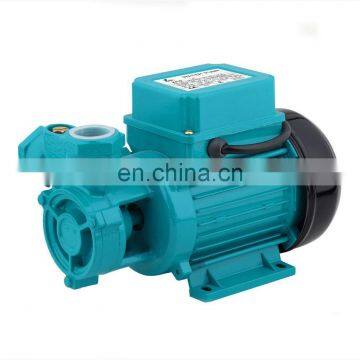

1/2hp electric motor pump Clean Water Vortex sprinkler water pump
INSTRUCTION:
1. stainless steel pump body
2. cast iron motor support
3. brass impeller
4. stainless steel shaft and mecchanical seal
WORKING CONDITION:
1. max temperature of fluid up to +40°C
2. max pressure 10 bar
3. max ambient temperature up to +40°C
Technical Data: | |||||||||
Model | Power | Inlet (inch) | Outlet (inch) | Q.Max (m³/h) | H.Max (m) | S.Max (m) | Packing Size (mm) | G.W(kg) | |
(kw) | (hp) | ||||||||
MKF | 0.37 | 0.5 | 1'' | 1'' | 35 | 35 | 8 | 280*160*190 | 5.9 |
KF | 0.37 | 0.5 | 1'' | 1'' | 35 | 35 | 8 | 280*160*190 | 5.9 |
1.Pump material | Hydraulic performance curve |
Pump Body : Cast Iron | |
Impeller : Brass | |
Motor bracket : Aluminum | |
Shaft with rotor : Stainless Steel or Cs45# | |
Mechanical Seal : Ceramic-Graphite | |
Copper winding | |
2. Operation Conditions | |
Suction head up to 8M | |
Liquid temperature up to 40C | |
Ambient temperature up to 40C | |
Max.Pressure : 6Bar | |
3.Pump motor | |
2-pole induction motor 50Hz/60Hz | |
Insulation : Class B | |
Protection : IP44 | |
With capacitor and thermal overload protection | |
4.Application | |
Clean water without abrasive particles, non-aggressive liquid,domestic use | |
In particular for delivering water in combination with small pressure stes and for irrigation | |
Installed in enclosed places,or at least protected against inclement weather. |
Applied to pumping such liquid which is clean, no solid matter or frictional matter, low viscous, non corrosive, non-crystallizable, chemically neutral and close to water. Such as: |
1. Tank filling |
2. Domestic water supply |
3. Water transfer |
4. Pressure boosting |
5. Irrigation |
◊ Features |
100%copper wire |
Brass impeller |
Cold-rolled silicon steel sheet, with high-speed punching, improve the efficiency and precision. |
CNC precision automatic lathe for smoother shaft |
Strict test including high-pot testing of stator coil and whole pump, outgassing test and performance test, ect |
Anti-rust treatment castings and electrophoresis. |
Work shop area | |||||||||
BAQIU Company Introduction |
1)Taizhou BAQIU electrical and mechanical Co.,LTD which located in the home two of chinese water- Daxi,Wenling China.We are integratd manufactural factory. |
2)Our major productions are all kinds of water pumps.Based on excellent products and good reputation,they have won favorable views from customers both at home and aboard and passed some domestric. |
3)Our products are well sold in more than twenty province and cities in China,and exported to America,Europe, Australia and Southeast Asia etc. |
4)Quality always stands the first and honest is our concept.We provide reasonable price,punctuality and satisfying service.We sincerely welcome all the friends from the world to join in us and develop together. |
More choices if you like ... | |||||||||
FAQ |
1. Q: Are you a pump manufactory or trading company ? |
A: We are water pump manufactory. Welcome to visit our factory. |
2. Q: What is your MOQ of this item? |
A: 50PCS. We offer trial sample and welcome small orders to test our quality. |
3. Q: What’s your payment terms? |
A: 30% T/T deposit and the balance T/T against copy of BL. |
4. Q: What is the delivery time? |
A: 30 days after receiving your deposit, 40 days in very busy season. |
5. Q: Is it all right to make customer's own brand name ? |
A: Yes, welcome. |
