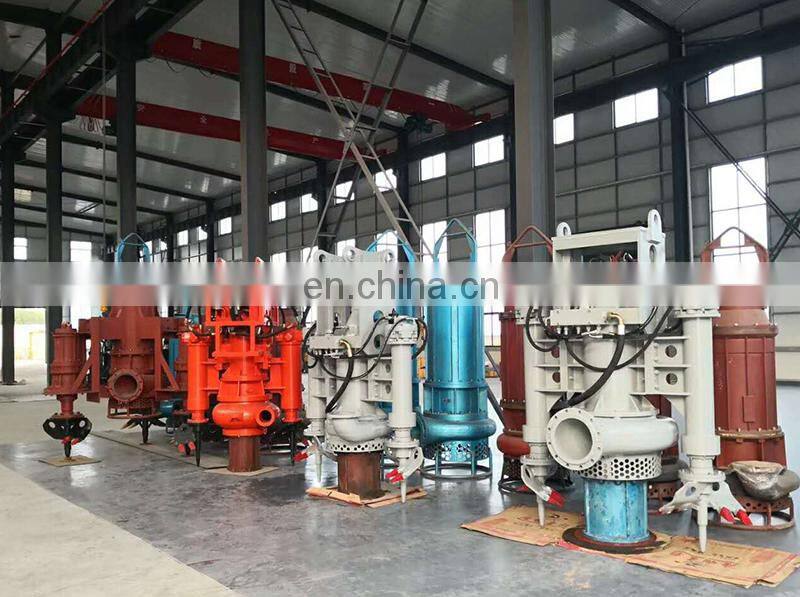

Submersible Dredge Pump Hydraulic Excavator

1.Large cut water clearance: The pump casing features a large cut water clearance which allows the easy

passage of large solids and reduces wear and erosion to improve service life and prevent loss of efficiency.

2.Integral agitator: The 27% chrome white iron agitator assists in the pumping of slurries by breaking up la

rge particles and agitating high concentrations of solids.

3.F class motor insulation

• Support frame and strainer
• Double mechanical seal
• Oil chamber leakage probe
• Optional external cooling

Performance ranges of submersible slurry pump

Submersible slurry pump Use Conditions:

1. The power source is 50Hz/380V,60hz,415v,220v,3 phases(If the voltage have special requirements, please inform in advance)

2.The temperature of the medium cannot exceed 60°C, and it does not contain inflammable or explosive gases. If the tempreture is higher,we can add pressured cooling system.

3.The maximum weight concentration of the ash is 30% and maximum weight concentration of the slag is 60%.

4.Maximum submerged depth under the water is 20 meters, the minimum submerged depth takes submerging of the motor as reference.

5.Working status in the medium is vertically and continuous.
