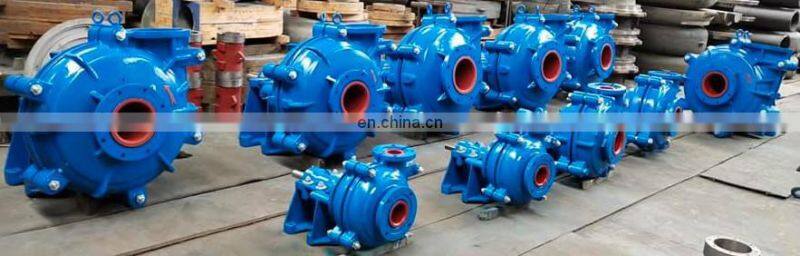

Heavy duty diesel mining water pump
Heavy duty diesel mining water pump
The MAH/MAHR 6 inch dredge pump 4 inch slurry pump are robust state of the art slurry pumps that feature oil or grease lubrication bearing assemblies and complete interchangeable with other major brands. The MAH can be supplied in either a packed gland version using expeller technology, or mechanical seal system specifically designed for heavy duty slurry applications.
Feature of MAH series slurry pump
1>Choice of piston ring style labyrinth or other new style of water proof
2>Fully interchangeable with the common brand reducing inventory hold requirements
3>A full range of mechanical seal adaptations available upon request
4>Oil lubrication or packed grease
5>Painted tn customer specifications upon request

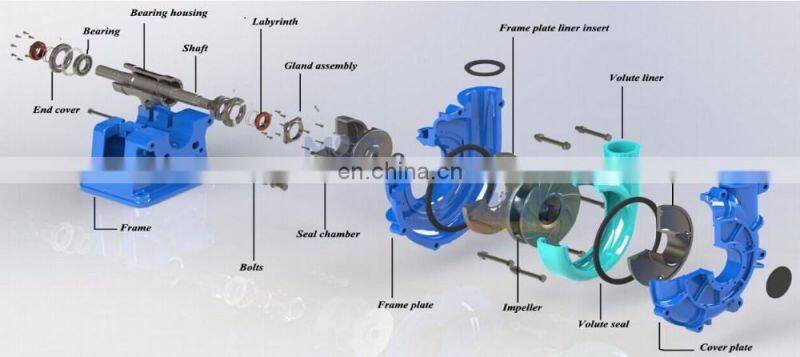

Structure of MAH series slurry pump
Construction material for Slurry Pump
Rubber Pump | Metal Pump | ||||
No. | Part Description | Material Specification | No. | PartDescription | MaterialSpecification |
1 | Base | Cast Iron | 1 | Base | Cast Iron |
2 | Shaft | 4140 High Tensile Steel* | 2 | Shaft 4140 | High Tensile Steel* |
3 | Bearing Assembly | Timken (Cast Iron Body) | 3 | Bearing Assembly | Timken (Cast Iron Body) |
4 | Shaft Sleeve | 420 Stainless Steel | 4 | Shaft Sleeve | 420 Stainless Steel |
5 | Pump Casing | Cast Iron | 5 | Pump Casing | Cast Iron |
6 | Frame Plate | Liner Insert Rubber | 6 | Frame Plate | Liner 27% Chrome White Iron |
7 | Cover Plate | Liner Rubber | 7 | Volute Liner | 27% Chrome White Iron |
8 | Impeller | Rubber Coated High Tensile Steel | 8 | Impeller 27% | Chrome White Iron |
9 | Throat Bush | Rubber | 9 | Throat Bush | 27% Chrome White Iron |
10 | Cover Plate | Cast Iron | 10 | Joint Rings | Rubber |
11 | Stuffing Box | Cast Iron | 11 | Cover Plate | Cast Iron |
12 | Expeller | 27% Chrome White Iron | 12 | Stuffing Box | Cast Iron |
13 | Expeller | Ring Natural Rubber | 13 | Expeller 27% | Chrome White Iron |
14 | Bolts | Zinc Plated Steel | 14 | Expeller Ring | Natural Rubber |
15 | O-rings | Nitrile Rubber | 15 | Bolts | Zinc Plated Steel |
16 | Seals | Rubber | 16 | O-rings | Nitrile Rubber |
|
|
| 17 | Seals | Rubber |
