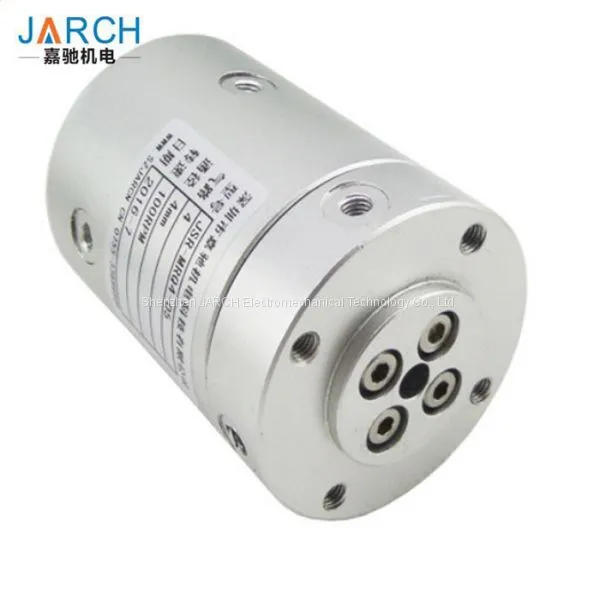

JARCH SMC rotary joint pneumatic rotary Union 2-16 channels 4 mm diameter rotary joint slip ring
Structural characteristics of electric rotary joint of JARCH:
This type of rotary joint has multi-channel, can be integrated and multi-pass in operation, each channel has its own independent sealing system, the internal selection of imported wear-resistant seals, and bearings as support, so that the friction rotation distance is small, the operation is flexible, and the same medium should be used for each channel, but the pressure of each channel can be different. It is suitable for pneumatic rotating system, rotating hydraulic system and rotating clamp of machining center.
Quick Details:
| Material: Aluminum | Technics: | Type: Coupling |
| Place of Origin: Shenzhen, China | Model Number: JSR-MQR6-M5 |
Brand name: JARCH |
| Connection: M5 Screw | Shape: round | Head Code: round |
| Size: M5 | Medium: compressed air | Rotor material: Aluminum |
| Max speed: 3000RPM | Max pressure: 0.8Mpa | Max temperature: 80℃ |
2D Drawing of 2,4,6,8 channels Pneumatic Rotary Union
Feature:
1.Passage quantity:6
2.Lifetime is up to 50 million revolutions
3.Max pressure:0.8 Mpa
4.Replace completely SMC MQR6-M5
5.It is standard products and on stock
Benefits:
1.Standard products, may replace completely SMC MQR series products,the size is the same.
2.It is metal sealed structure, low torque.
3. Its speed is up to 200-3000 rpm
4.Long lifetime,it is up to 50 million revolutions.
Applications:
• Auto Machine
• Robot
• Dyeing, Rubber, Plastics, Chemical,Machine tool
JARCH is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
If you have any questions, please contact us without any hesitation.
|
Shenzhen JARCH Electronics Technology Co.,Ltd.
Main Item list: slip ring,rotary union,fiber optic rotary joint(FORJ),hose reel/cable reel,carbon brush,brush holder...
Customer Service: ATTN: Ms.Kris Yao E-mail: kris Phone&WhatsApp:86-13929708571 Skype/Kakao: krisyao313 Wechat: laoyao313 QQ: 3003854385
|
|
