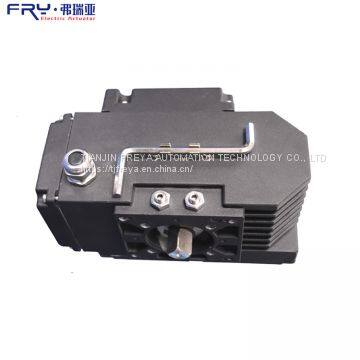

Help CenterAC220V DC24V Part-turn Ball Valve Electric Actuatorr
Related Products
-
Multi Turn Electric Actuator Motorized Water Gate Valve DZW60-24W/Z/T DZW90-24W/Z/T DZW120-24W/Z/TUS$ 300 - 600MOQ: 1 Piece -
4-20 mA Electric Actuated Gate Valve DZW Electric Actuator DZW5+WK2US$ 286 - 500MOQ: 1 Piece
-
400v 4-20 ma Part Turn Electric Rotary Valve Actuator 8021US$ 585 - pcMOQ: 1 Piece
-
QH 25 QH50 Power Plant 4-20mA Rotary Butterfly Valve Electric ActuatorUS$ 152 - pcMOQ: 1 Piece
-
Linear Electric Actuator for Control Valve 381lxa-08 381lxa-20US$ 600 - 1300MOQ: 1 Piece

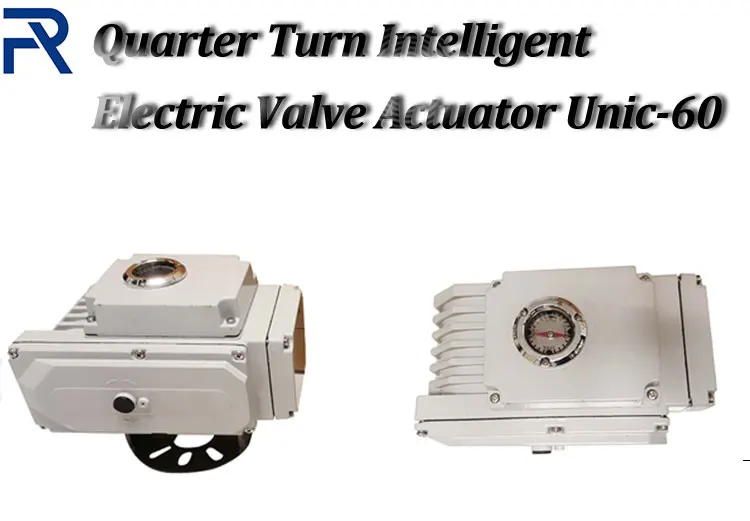

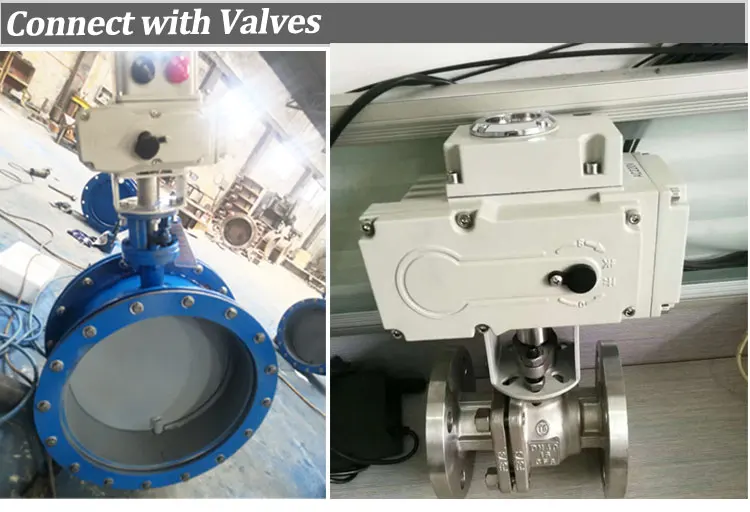

Unic-60 electric rotary valve actuator series products mainly include basic type, resistance type (switch type), intelligent adjustment type, and - body type. There are nearly 100 types of models, which can be connected with different types of ball-type and butterfly valves. The output is in the range of 50NM~2000NM.

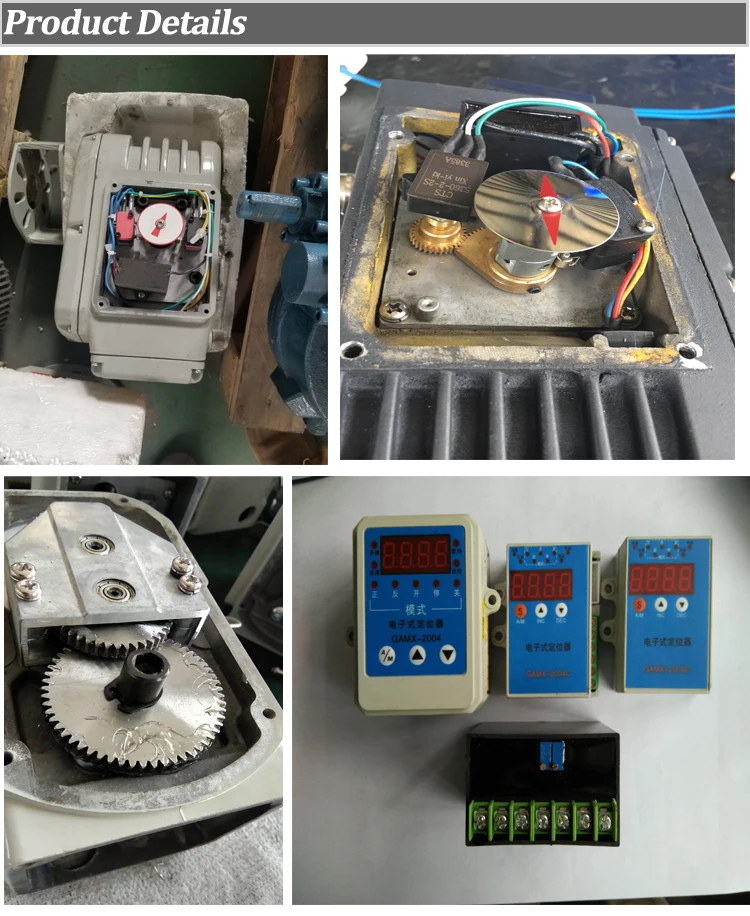

The actuator can directly receive the 0-10V, 1-5V, 4-20A DC signals input from the outside, and accurately adjust the opening degree of the valve according to the specific value of the input signal. The new mechanical damping device can eliminate the inertia. Suppresses oscillations to ensure positioning up to (1/00 00). The 4-20mA DC feedback signal is output while adjusting the control to accurately and effectively display the actual opening value of the valve. His body has a LTD liquid crystal display, and 8 indicators can specifically indicate each operation, which makes debugging more convenient and accurate.
|
Function Type |
05 |
10 |
16 |
25 |
50 |
100 |
200 |
Power supply |
AC220V, 50/60Hz, (AC24V,AC110V,AC380V,DC24V, DC220V) |
||||||
Torque(Nm) |
50 |
100 |
160 |
250 |
500 |
1000 |
2000 |
Time(s) |
15/30 |
15/30/60 |
60 |
60/100 |
|||
Motor(w) |
15 |
23 |
23 |
50 |
90 |
100 |
100 |
Working current(A) |
0.25 |
0.6 |
0.7 |
0.8 |
1.2 |
1.3 |
1.3 |
Weight(kg) |
2.5 |
3.7 |
3.7 |
6.8 |
8 |
12 |
12 |
Rotate angle |
0~90° |
||||||
Surrounding environment |
-30~+60℃ |
||||||
Pressure value |
1500AC/min |
||||||
Protection degree |
IP67 |
||||||
Limit |
Electrical machinery |
||||||
manual manipulation |
With handle wheel |
||||||
Installation angle |
Any angle |
||||||

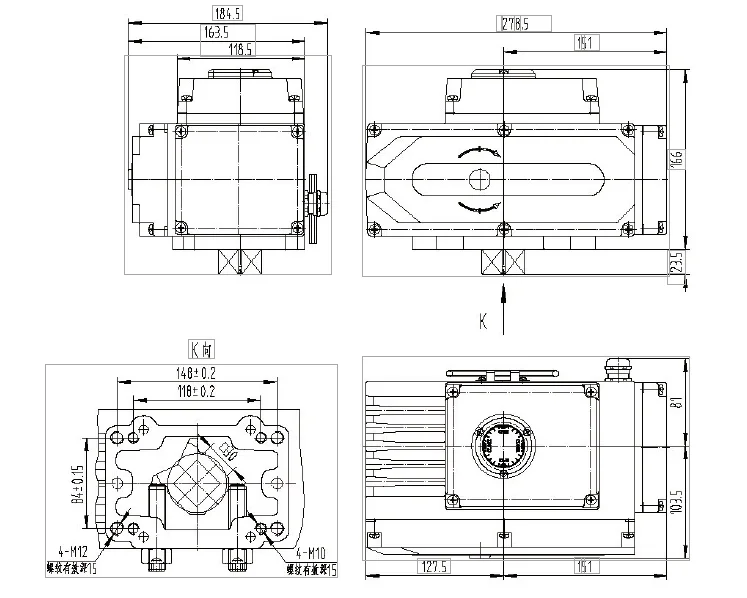

Dimensions can be customized
Wiring can be customized
Shipment Term:
1. Orders processed timely after the payment verification .
2. Terms of Deliver: FOB / CFR / CIF / EXW etc.
3. Due to stock status and time differences , we will choose to ship your item from our first available warehouse for fast delivery .
Payment Term:
1. Accept T/T, D/A, D/P, L/C, West Union with 30% Deposit.
2. Advance payment should be made within 3 days of order .
Our company provides you with the following services free of charge:
1. All-round electric actuator and valve technology selection service
2. High-quality post-product maintenance and technical analysis services
3. Accept other related cooperation.
