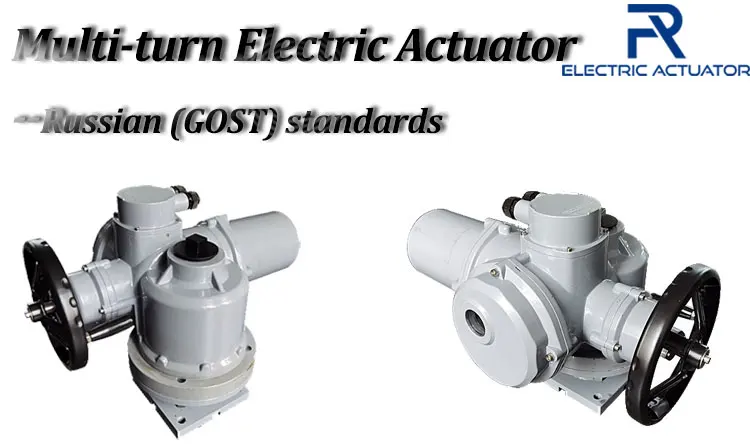

Help CenterMulti Turn Electric Actuator Motorized Water Gate Valve DZW60-24W/Z/T DZW90-24W/Z/T DZW120-24W/Z/T
Related Products
-
4-20 mA Electric Actuated Gate Valve DZW Electric Actuator DZW5+WK2US$ 286 - 500MOQ: 1 Piece -
400v 4-20 ma Part Turn Electric Rotary Valve Actuator 8021US$ 585 - pcMOQ: 1 Piece
-
QH 25 QH50 Power Plant 4-20mA Rotary Butterfly Valve Electric ActuatorUS$ 152 - pcMOQ: 1 Piece
-
Linear Electric Actuator for Control Valve 381lxa-08 381lxa-20US$ 600 - 1300MOQ: 1 Piece
-
Electric Proportional Valve Actuators Bqt04-0.9 Bqt04-0.9US$ 300 - 500MOQ: 1 Piece
1. The device is dust-proof, waterproof, and light-corrosive, and its protection grade is IP55, IP65 (special order);
2. The torque control mechanism has reliable action, convenient adjustment, and high torque repeat accuracy;
3. The stroke control mechanism has high adjustment accuracy and repeatability. The opening and closing directions can be equipped with 2 to 4 micro switches;
4. The semi-automatic hand-electric switching mechanism is adopted in the low-speed gear, which is simple in structure, reliable in work, and easy to operate.
5.Using three-phase asynchronous motor for valve electric device, with large starting torque and small moment of inertia;
6. Equipped with a mechanical valve position indicator.

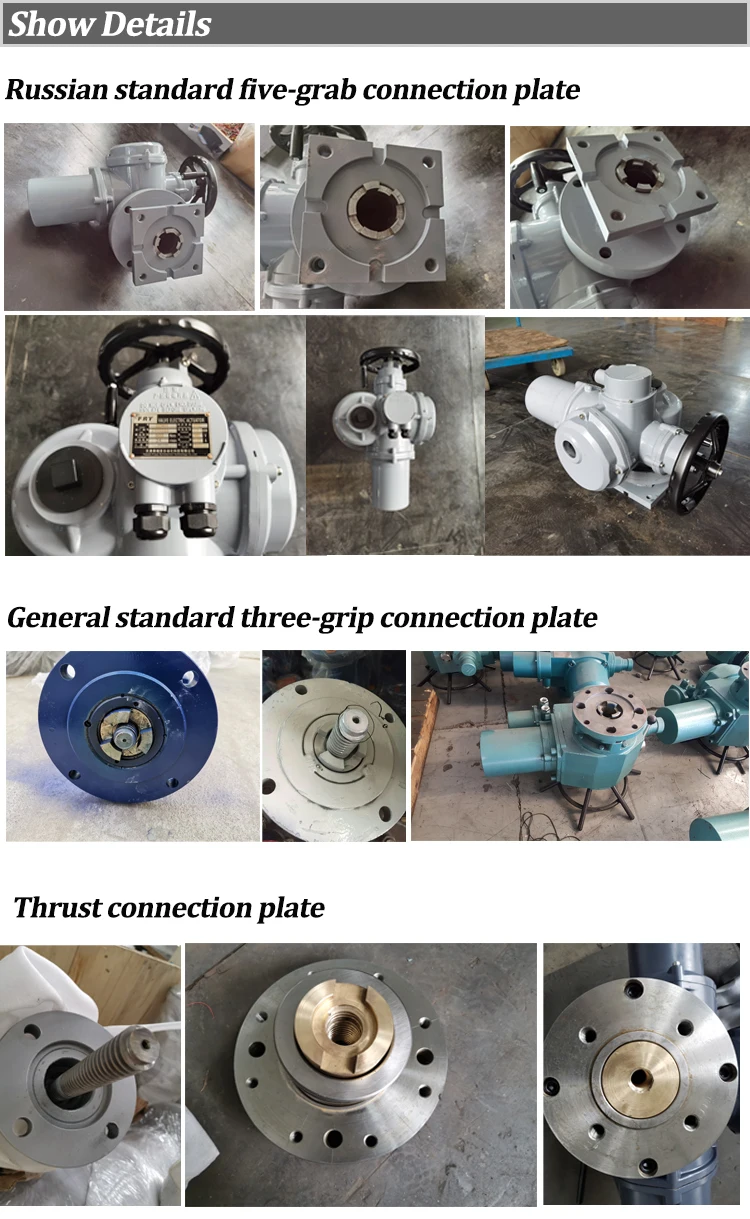

7.Compliant with Russian (GOST) standards,type of connection to valve according to OCT 26-07- 763-73.
The DZW series of electric valve actuator is a new generation of products independently developed by our company by improving and perfecting structures, optimizing protective performance and key parts on original mature products, it has some advantages, such as: Compact structure, small volume, beautiful appearance and stable performance etc. The excellent protective grade can meet demands of many designs :Flame-proof type, global switch-type and global regulation-type designs.

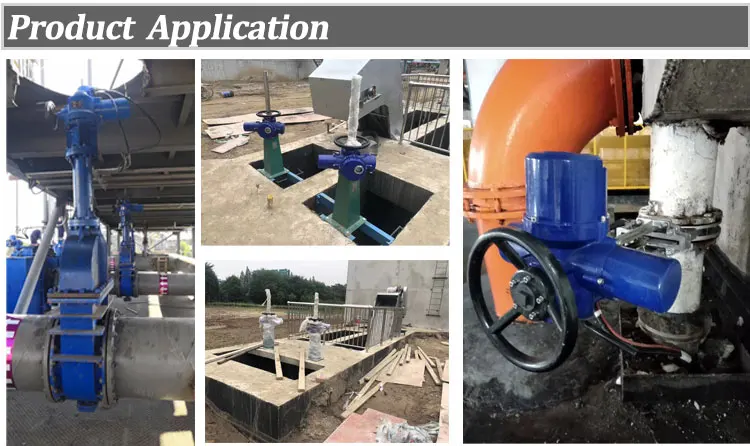

DZW series of products are used to control open and close of the valves. The products can be used for brake valve, stop valve, shutoff valve, and diaphragm valve, the derived products can be used for ball valve, butterfly valve and throttle etc., the product can accurately act according to the control instruction, therefore it is necessary driving unit for achieving remote control, centralized control and automatic control.
|
Dimensions Types |
L | L1 | H | H1 | F | F1 | ØD |
| DZW5-15 | 382 |
228 | 233 | 87 | 335 | 150 | 300 |
| DZW20-30 | 435 | 278 | 248 | 90 | 375 | 157 | 350 |
| DZW45-60 | 810 | 515 | 440 | 195 | 500 | 245 | 470 |
| DZW90-120 | 830 | 540 | 450 | 200 | 685 | 360 | 550 |
| DZW180-250 | 870 | 565 | 600 | 250 | 740 | 385 | 320 |
| DZW350-500 | 1170 | 770 | 710 | 280 | 840 | 300 | 570 |
Shipment Term:
1. Orders processed timely after the payment verification .
2. Terms of Deliver: FOB / CFR / CIF / EXW etc.
3. Due to stock status and time differences , we will choose to ship your item from our first available warehouse for fast delivery .
Payment Term:
1. Accept T/T, D/A, D/P, L/C, West Union with 30% Deposit.
2. Advance payment should be made within 3 days of order .
Our company provides you with the following services free of charge:
1. All-round electric actuator and valve technology selection service
2. High-quality post-product maintenance and technical analysis services
3. Accept other related cooperation.
