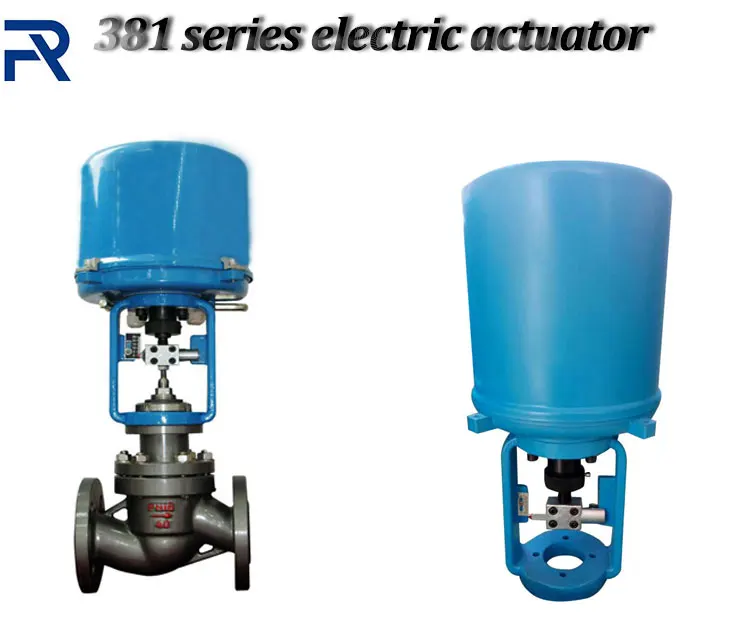

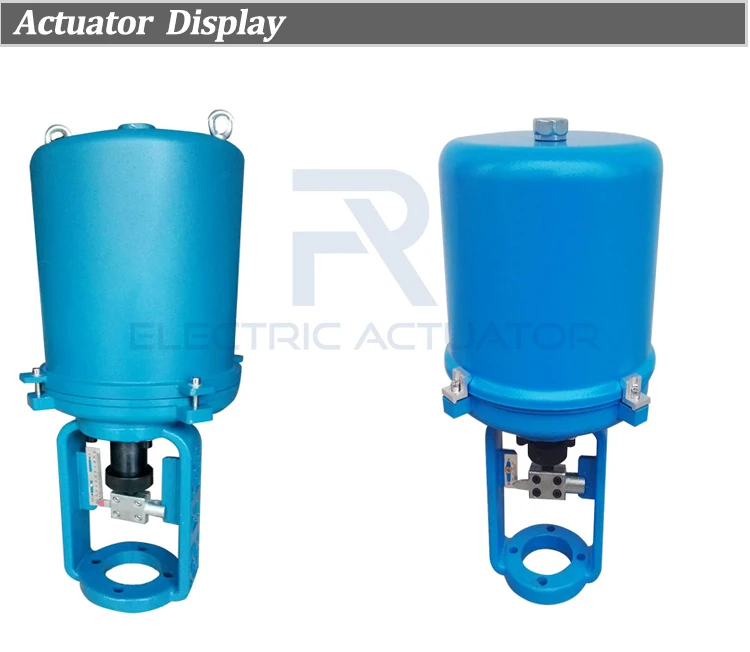

Linear Electric Actuator for Control Valve 381lxa-08 381lxa-20

Linear Electric Actuator for Control Valve 381lxa-08 381lxa-20 thumbnail-1
Linear Electric Actuator for Control Valve 381lxa-08 381lxa-20 thumbnail-2
Linear Electric Actuator for Control Valve 381lxa-08 381lxa-20 photo-1

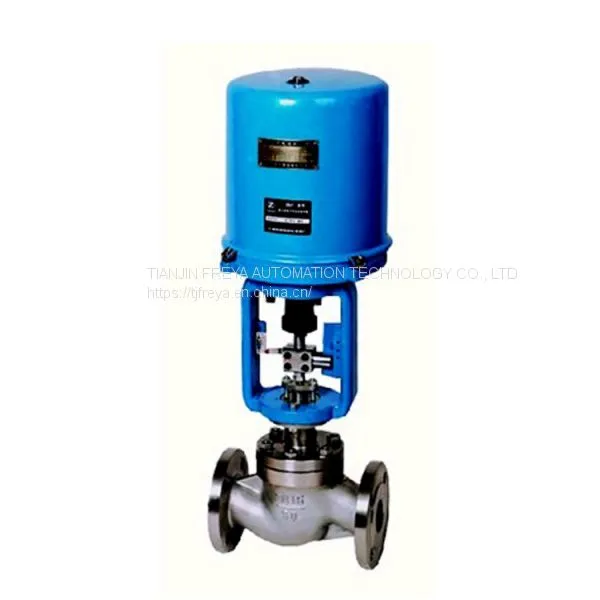

Linear Electric Actuator for Control Valve 381lxa-08 381lxa-20 photo-2
US$ 600 - 1300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Freya
Place of Origin:
China
Model Number:
381lxa-08 381lxa-20
Contact Supplier Request Quote Chat Now
Tianjin Freya Automation Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN XINGNAG PORT
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Freya
Place of Origin China
Model Number 381lxa-08 381lxa-20

1.Overview

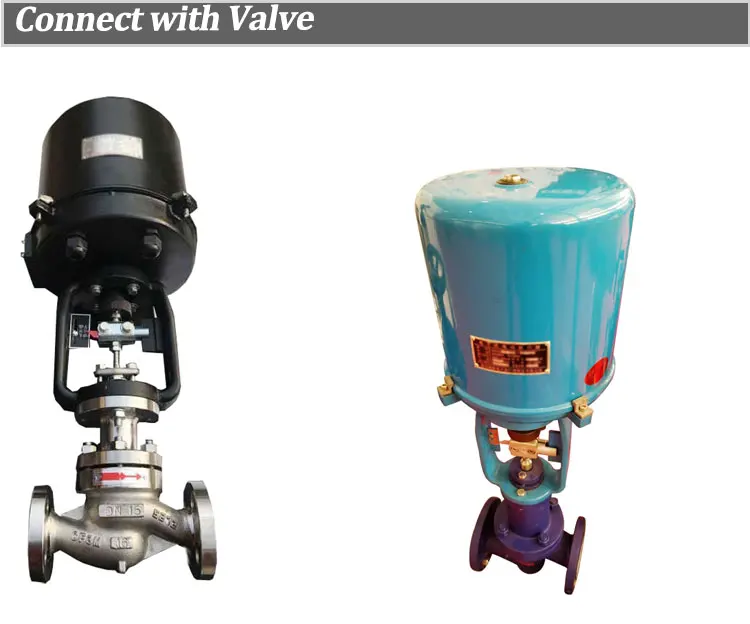

3810L series electric actuator, driven by 220 V/AC single-phase power, is a new actuator to realize set displacement by receiving regulator's signal (DC4-20mA or DC1-5V). When runs as control valves actuator, it has all action variations, valve opening and manual functions.Thus, this actuator can be widely used in power generation, metallurgy, petrochemical engineering, light industry, environment protection and other industry sector.

2.Features

The product has the following features:

 (1)Servo system is inner built. Just DC4-20mA (or DC1-5V) signal and AC220V single-phase

 (3)Feedback detection to position quantities uses high-performance plastic potentiometer, with resolution ratio

 (4)Auto diagnosis function: controller’s indicator will give index signal in case of fault;When break signal can be set by status dial switch, valve core is in full- open, full close or self-lock status.

 (5) The status dial switch can set forwards and backwards actions.

 (6)The status dial switch can set input signal as DC4.20mA or DC1-5V.

 (7)Smart stall protection: in case of stall of actuator’s any part, inner stall protection will be activated in 4 seconds to disconnect power, even when controller is affected by strong disturbance and causes inner relay breakdown and short circuit.

 (8)Automatic stall remove: By user’s dial switch settings, when actuator has been blocked,the stall can be removed by backwards running for 1 second; if not, actuator will start stall protection, alarm and stop all electric motor output. Users can also input signal for backwards operation to manually remove protection.

 (9) Electrical brake: the positioning is precious and stable to solve traditional mechanic abrasion and incorrect positioning;

 (10) Smart anti-backwards running technology: to improve reliability and prolong service, there is delay between actuator’ s forwards and backwards running to reduce impacts to valve, electrical motor’ s reduction gear and actuator;

 (11) Easy to adjust working starting point and finish point;

 (12)Ensure valve core’s self-lock in sudden power off;

 (13) Synchronous belt drive is adopted to reduce noise;

 (14) High reliability: there is high-performance micro controller inside, whose software and hardware are both up to industrial standards.

Parameters

Power

AC220V±10% 50HZ (380/110V can be set)

Power consumption

A type: 50W   B type: 150W   C type: 220W

Input signal

DC 4-20mA or DC l-5V

Output signal

DC 4-20mA (load resistanceΩ)

Control precision

Error:≤0.8% return difference:≤1% dead zone:≤l%

Modification rage of work-angle

Starting point: ±25%; angle: 20%- 100%

Detection threshold value of break signal

Input signal≤1mA

Protective level

IP65



Explosion-proof level

Exd II BT4





 Table for actuator specifications

Type and specification

Output thrust (N)

Action time (S/909)

Maximum travel

381LSA-08

800

4.2

30

381LXA-08

381LSA-20

2000

2.1

381LXA-20

381LSB-30

3000

3.5

60

381LXB-30

381LSB-50

5000

1.7

381LXB-50

381LSC-65

6500

2.8

100

381LXC-65

381LSC-99

10000

2.0

381LXC-99

381LSC-160

16000

1.0

381LXC-160

381LSD-250

25000

0.5

200

381LSD-400

40000

381LSD-600

60000









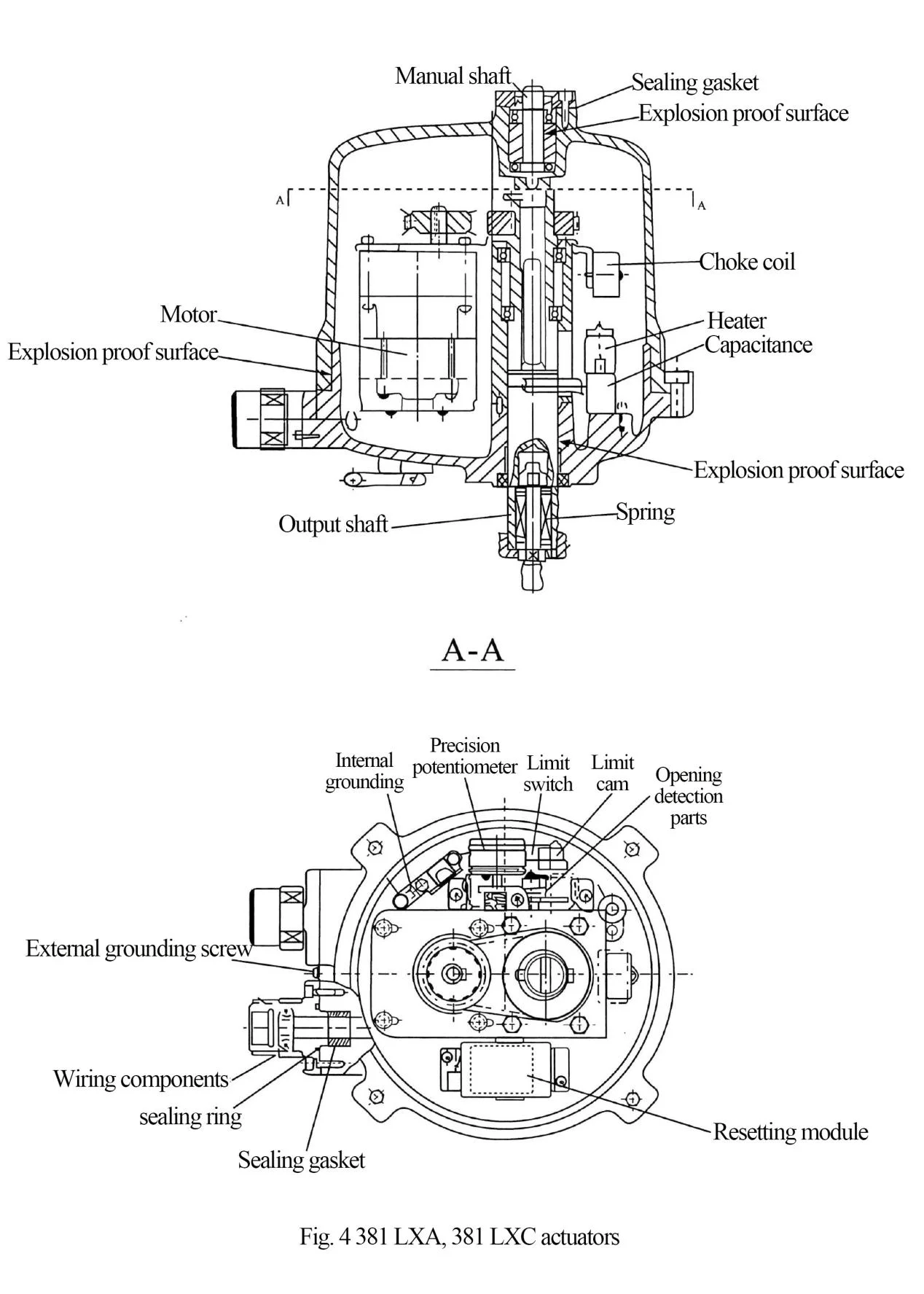

Installation

As the wiring, commissioning and maintenance require dismantling protective cover, there shall be some space on the top of actuator during installation (see Fig. 6). See table 2 for reserved space H.


Dimension

See Fig.10, Fig.11 and table 4 for dimensions.

Note: 1 refers to the width of hexagon hole’s opposite side;

           2 refers to necessary dimension for manual operation.





 Shipment Term:

1. Orders processed timely after the payment verification .

2. Terms of Deliver: FOB / CFR / CIF / EXW etc.

3. Due to stock status and time differences , we will choose to ship your item from our first available warehouse for fast delivery .

Payment Term:

1. Accept T/T, D/A, D/P, L/C, West Union with 30% Deposit.

2. Advance payment should be made within 3 days of order .

Our Services

Our company provides you with the following services free of charge:

1. All-round electric actuator and valve technology selection service

2. High-quality post-product maintenance and technical analysis services

3. Accept other related cooperation.
