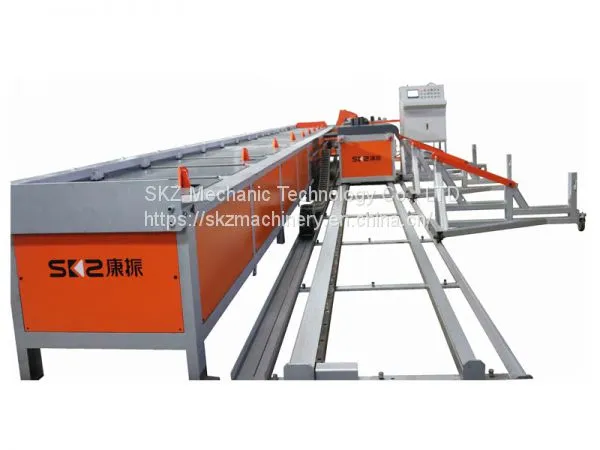

Help CenterHORIZONTAL BENDING CENTER
Related Products
-
INTEGRATED REBAR CUTTING & BENDING MACHINEUS$ 1 - 100MOQ: 1 Set -
INTEGRATED REBAR SHEAR & BENDING LINEUS$ 1 - 100MOQ: 1 Set
-
REBAR SAWING & THREADING MACHINEUS$ 1 - 100MOQ: 1 Set
-
Precision Machining Stirrup BenderUS$ 1 - 100MOQ: 1 Set
-
High Speed Straightening Cutting MachineUS$ 1 - 100MOQ: 1 Set
HORIZONTAL BENDING CENTER,Integrated Rebar Cutting,rebar shearing line,rebar bending center
Integrated Rebar Cutting
rebar shearing line
rebar bending center
Model KZW50X Conveying speed 40 (m/nin) Bending speed 6 […]
Model |
KZW50X |
|||||||||
Conveying speed |
40 (m/nin) |
|||||||||
Bending speed |
6-8r/min |
|||||||||
Benders no° |
2 |
|||||||||
Mobile bender move method |
Automatic |
|||||||||
Power consumption |
10 (Kwh) |
|||||||||
Min. bending side length |
1200 (mm) |
|||||||||
Accuracy of bending angle |
±1° |
|||||||||
Conveyor load capacity |
1000(KG) |
|||||||||
Power supply voltage |
380V/50Hz/3phase |
|||||||||
Total power |
30 (KW) |
|||||||||
Total weight |
8.8 (M.T.) |
|||||||||
Bars diameter |
10 |
12 |
14 |
16 |
20 |
25 |
28 |
32 |
40 |
50 |
Bending bars no0 |
7 |
6 |
5 |
5 |
4 |
3 |
3 |
2 |
1 |
1 |
STRUCTURE & CHARACTERS
1.STORAGE TABLE WITH ROLLER CONVEYOR
Maxiumu bar length 12m.
Maximum carrying capacity 1,000Kg.
Roller conveyor, motor drive.
2.fixed and mobile bender
1 mobile bender
1 fixed bender
Servo motor drivenu
Pneumatically operated lifting device, delivery straight bars to bending mandrel and transfer shaped bars to storage rack.
Pneumatically operated clamp device will fix the steel bars while bending.
Shaped bars storage rack.
3. CLAMPING AND STOCKING UNIT
Pneumatic clamping and uplifting unit
Movable collecting stock
4.ELECTRONIC CONSOLE
Touchable screen display.
PLC control system.
The data base can store more than 100 shapes.
Send Inquiry to This Supplier
