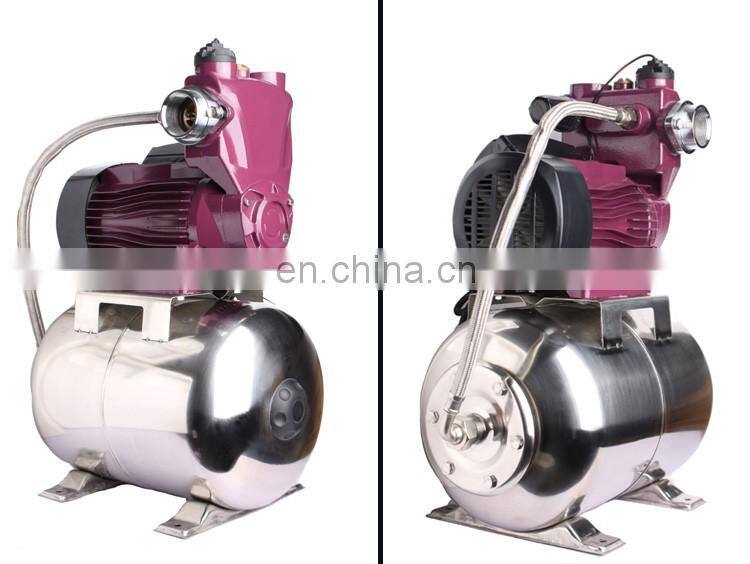

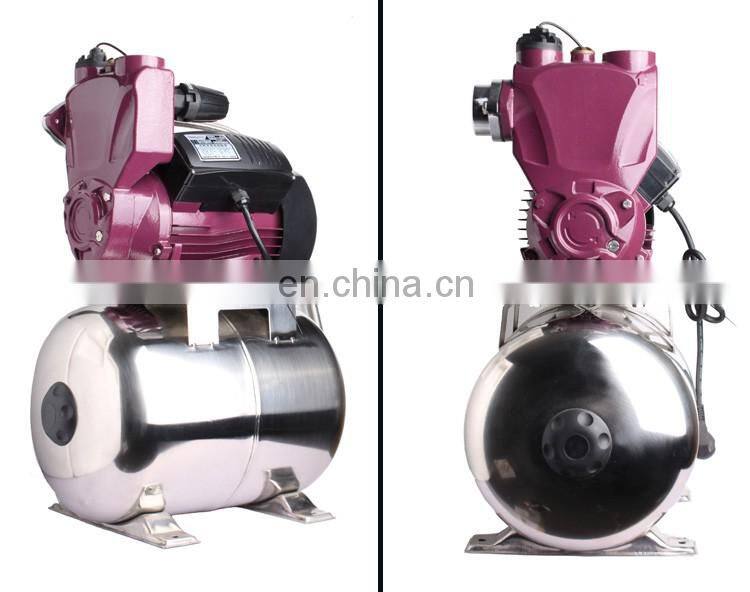

Help CenterTop Quality Automatic Pressure Control Water Pump Booster Automatic Water Pump
Related Products
-
Automatic Home Use Electronic Control Bathroom Water Boosting Self Sucking PumpUS$ 35 - 36MOQ: 1 -
2017 VMP Series Best-seller Russian Electric Centrifugal Submersible Vibration Clean Water PumpUS$ 10 - 20MOQ: 500 Pieces
-
Piezo Membrane Micro Pump Mp6 Vibration PumpUS$ 10 - 20MOQ: 500 Pieces
-
EURO Plug Aluminum Vibration Submersible Pump Masking Vibration PumpUS$ 10 - 20MOQ: 500 Pieces
-
Car Washing Pump Small Submersible PumpUS$ 10 - 20MOQ: 500 Pieces
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>Back To Homepage With Surprise>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

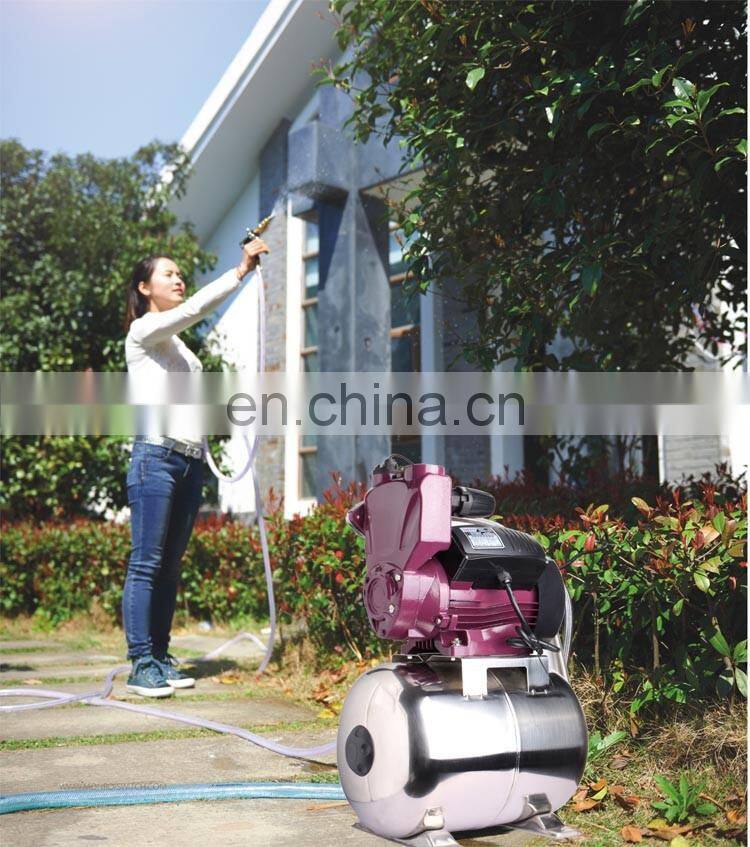

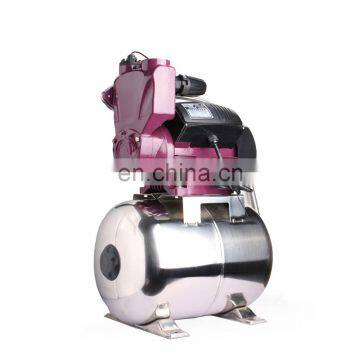

(WZB-600A) half hpgarden high volume irrigation water pump
| About Automatic Self priming Water Pump |
**Overview

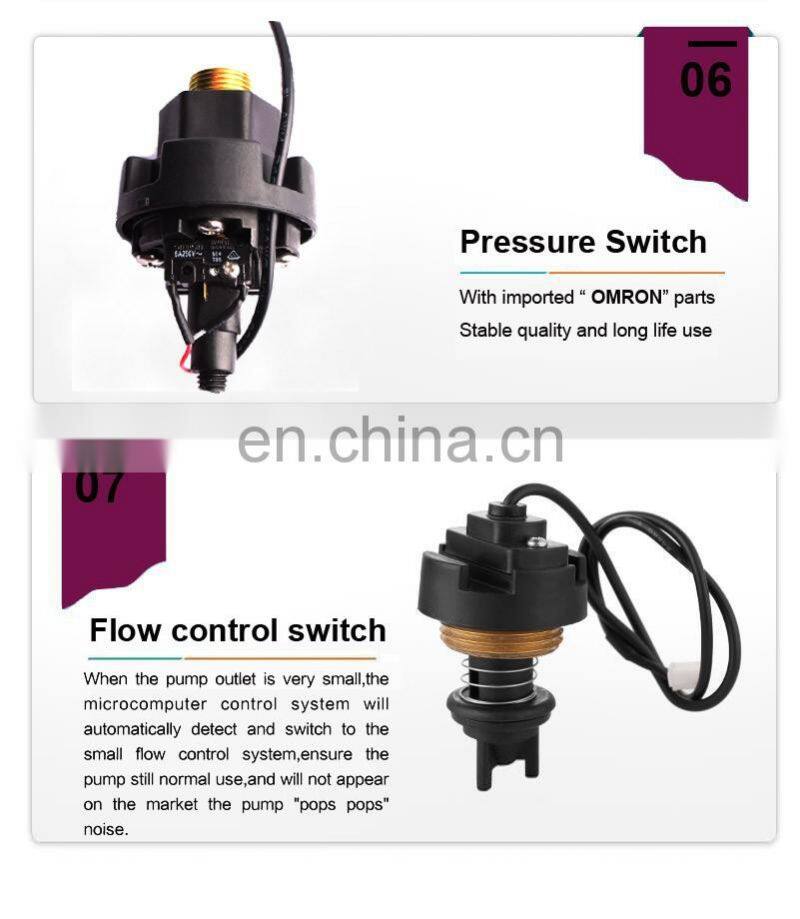

1.The pump use the PC chip to control the electric pressure switch in order to avoiding the switch taken off frequently. The uselife will be more longer.
2.The pump will be forced to start 10 seconds per 72 hours to avoid the machine locked when the pump is not used for long time.
3. When the inlet is lack of water, the pump will be detected continously for 8 minutes and access to the water shortage protection system automatically, avoiding the pump working for long time when lack of water.
4.Add the start-up delay function. when power is on, the pump will be started after 3 seconds avoiding the socket sparking and protect the person's safety.
5. Add the flow sensor to get the stable pressure, avoiding to affect the flow of water.
**Working Conditions
1. Suction lift up to 8 m
2. Liquid temperature up to +35° degree centigrade
3. Ambient temperature up to +40° degree centigrade
4. Max. Working pressure: 6 bar
5. Suction lift up to 8 m

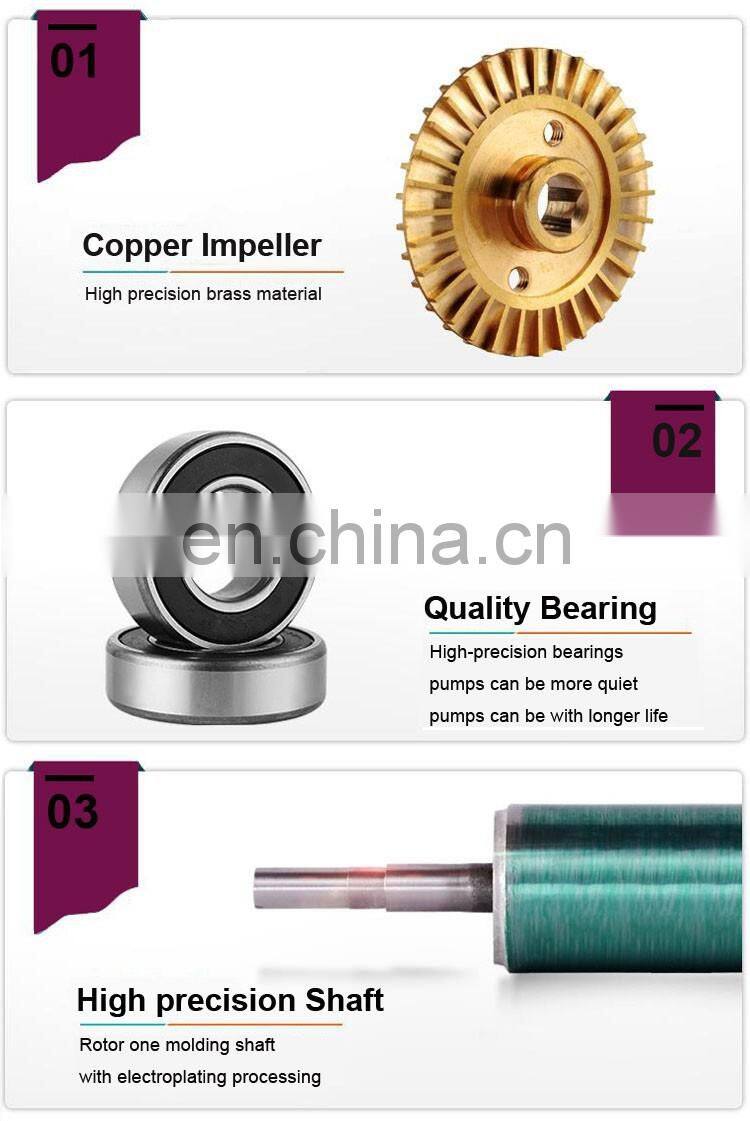

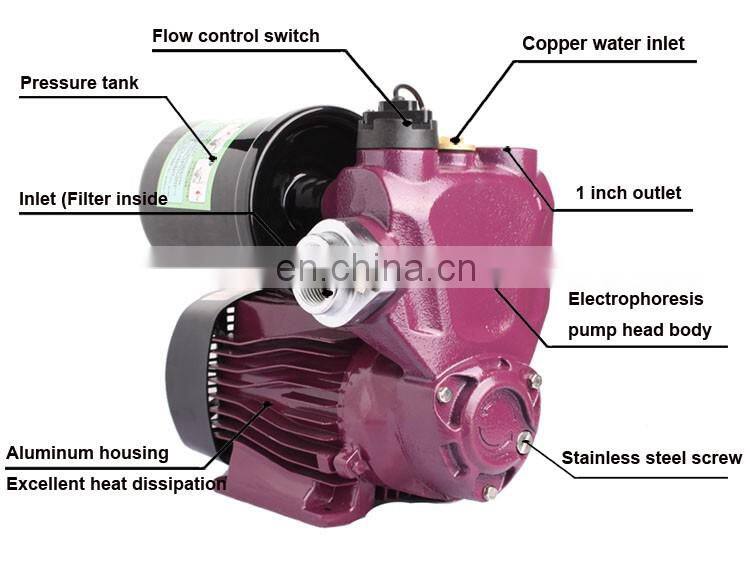

| Pump each part details |

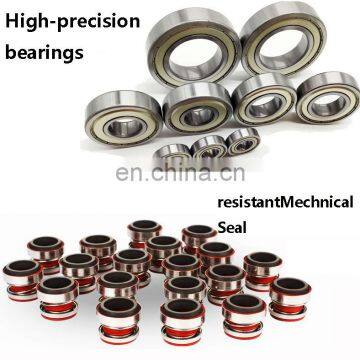

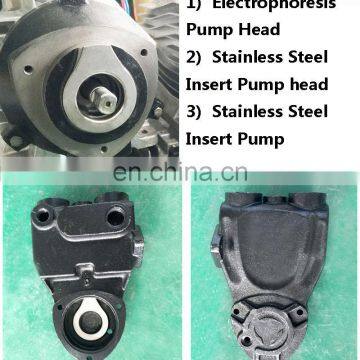

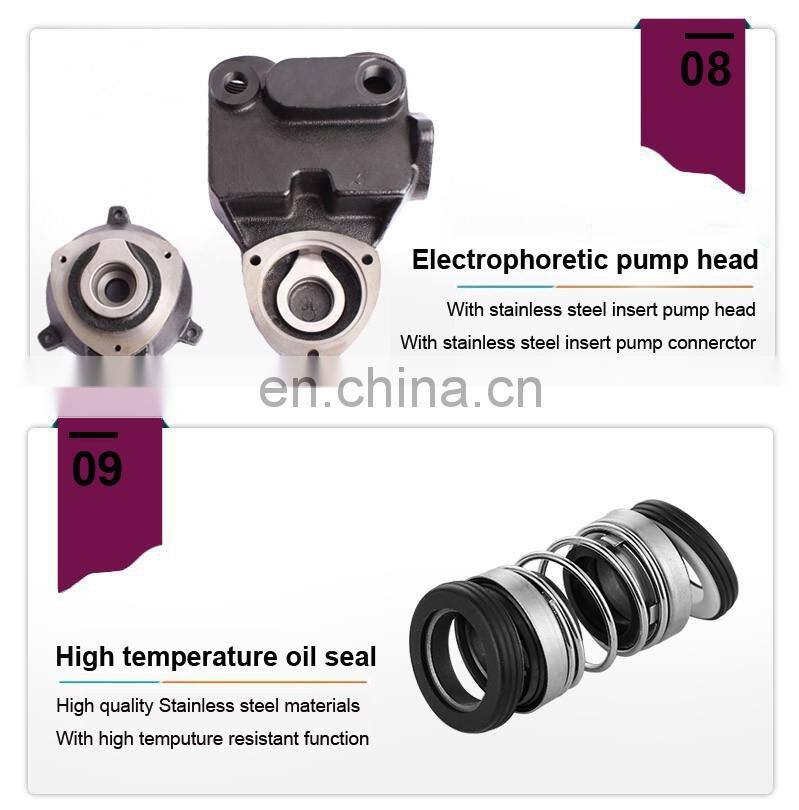

| Pump head | Cast iron with Stainless steel insert | Mechnical Seal | S.S.+Ceramic +Graphite |
| pump connector | Cast iron with Stainless steel insert | Insulation Class | CLASS B |
| pump housing | Aluminum | Protection Class | IP 44 |

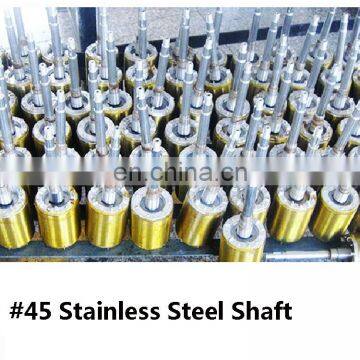

| pump shaft | #45 stainless steel | Bearing | Top quality Bearing |

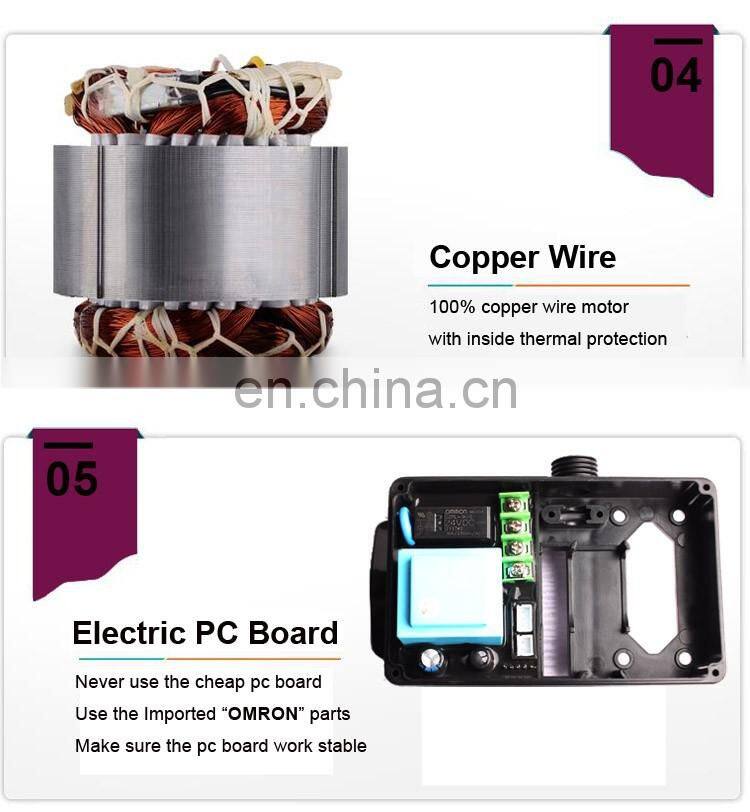

| Motor wire | Copper wire |
| Pump performance Data |
Model |
Power | MAX.FLOW | MAX.HEAD | MAX.SUCT | INLET/OUTLET | G.W. | PACKING DIMENSION | |
| kw | hp | (m3/h) | (M) | (M) | (inch) | (kg) | (MM) | |
| WZB-200(A) | 0.2 | 0.27 | 1.8 | 25 | 9 | 1" X 1" | 9 | 325X215X288 |
| WZB-300(A) | 0.3 | 0.4 | 2 | 30 | 9 | 1" X 1" | 9.5 | 325X215X288 |
| WZB-400(A) | 0.4 | 0.53 | 2.5 | 35 | 9 | 1" X 1" | 10 | 325X215X288 |
| WZB-600(A) | 0.6 | 0.8 | 3 | 45 | 9 | 1" X 1" | 12.5 | 325X240X325 |
| WZB-800(A) | 0.8 | 1.1 | 3.5 | 50 | 9 | 1" X 1" | 14 | 325X240X325 |
| WZB-1100(A) | 1.1 | 1.5 | 4 | 55 | 9 | 1.5" X 1.5" | 19.5 | 365X270X360 |
| We are special |
| 100% Real Pump Photography |
| Why choose ZHELI |
| E-mail To Us |
| FAQ |
Q1:How long can I get the feedbacks after we sent the inquiry?
ZHELI will reply you within 2 hours (Late only if special case,thanks for understanding)
Q2:Are you direct manufacturer or trading company?
Sure,don't doubt,we are Real direct water pump factory!
Q3:How to guarantee the quality and after sales service of your goods?
1.Strict sampling inspection on products before shipment and intact product packing are insured
2.Follow up and adopt customers feedbacks in a timely manner after sales.
3.Full re-found in case of bad quality!
Q4:What is your warranty time?
One year warranty.
We promised You :Full re-found in case of bad quality!
Q5:Is the sample available?
Yes,Usually we send our sample by DHL,TNT,FEDEX on customers' cost.
Sampe fee will re-found after You place order. So Sample fee is free !
Congratulations! You found the Real Pump Manufacturer!
WITH US YOUR MONEY IN SAFE YOUR BUSINESS IN SAFE
Thanks for choosing ZHELI PUMP as your consideration of pump equipment.

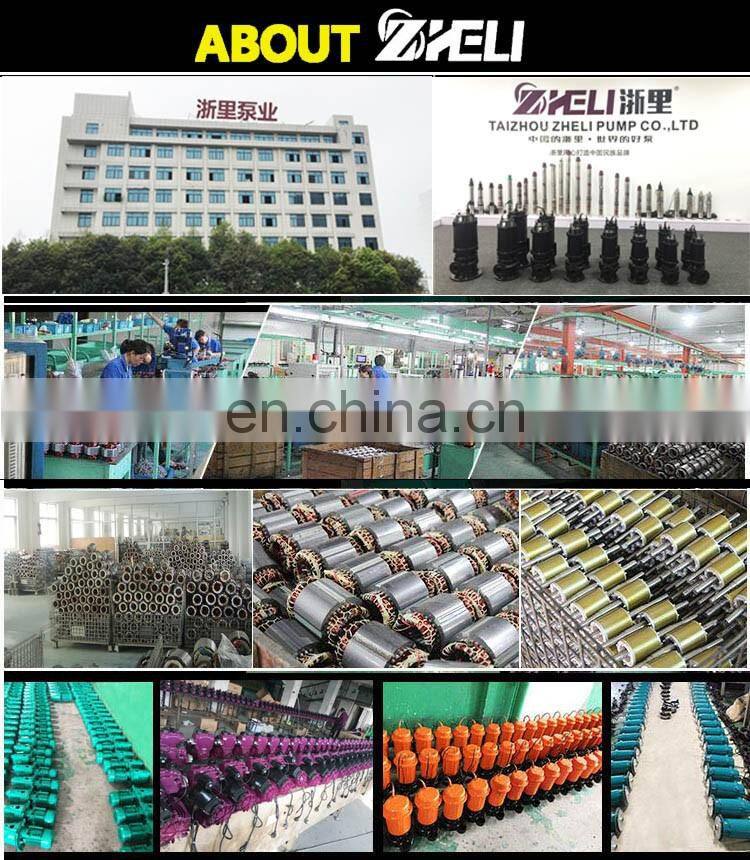

We are an professional pump manufacturer located in Daxi town , Wenling city,Zhejiang, China.
History:10 years experience of manufacturing different kinds of pumps;
Scale:Covers working area of 3000 square meters,have more than 100 employees
Technology:A group of professional technical engineers and a strong R&D team
Management:Scientific management and strict quality control system
Marketing network:America,Europe,Asia,Africa,etc.
1. Competitive Advantage products
2. Full Refound in case of Bad Quality Or late delivery
3. Confidently Agreement "Bussiness Secret CONTRACT"
4. Quality Assurance CONTRACT
5. After Sale Service 24*7
6. Sample Order / Small Order Welcomed
WITH US YOUR MONEY IN SAFE YOUR BUSINESS IN SAFE!!!
