EURO plug Aluminum vibration submersible pump Masking vibration pump
| APPLICATION |
This clean water submersible pump is the most extensively used pump suitable for arable land irrigation, mine water drainage, as well as for flood control campaign. It is compact in construction, tight in sealing quality, high efficiency in energy conservation, and long durability for use as well. It is suitable for river, lake and well, etc.
| TECHNICAL DATA |
Model |
Power (W) |
H max (M) |
Qmax (L/MIN) |
Outlet (MM) |
G.W (KGS) |
Packing Ssize (MM) |

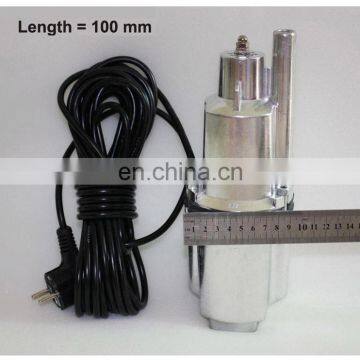

Diameter (MM) |
|||
VMP-50 |
180 |
50 |
16 |
12 |
3.0 |
28.7*13.0*10 |
80 |
|||
VMP-60 |
250 |
60 |
18 |
14 |
3.5 |
28.7*13.8*11 |
100 |
|||
VMP60-1 |
250 |
60 |
18 |
14 |
3.5 |
28.7*13.8*11 |
100 |
|||
VMP-70 |
300 |
80 |
25 |
18 |
4.6 |
33*12*16 |
120 |
|||
VMP70-1 |
300 |
80 |
25 |
18 |
4.6 |
33*12*16 |
120 |
|||
VMP-80 |
350 |
65 |
35 |
22 |
5.8 |
30*15*16.5 |
150 |
|||
Pump Characteristics: | ||||||||||
Fluid temperature range |
1-40 °C |
Pump body |
Aluminum |
|||||||
Max working pressure |
8 bar |
Motor body |
Aluminum |
|||||||
Single phase |
220V±5%/50HZ |
Shaft |
# 45 Steel |
|||||||
Suitable water |
Clean water |
Impeller |
Rubber |
|||||||
Degree of protection |
IP 68 |
Insulation class |
B |
|||||||
Quality Control: | ||||||||||
1)The high voltage 4000V test of each pump for safety control . | ||||||||||
|
2)The noise control during test:During the pump working,the worker considers the big noise pump(the sound caused by the rotor hit the motor)as the non-conforming product. The big noise pump will cause the rotor fracture. | ||||||||||
|
3)The pump must be tested the flow rate during the head is 40m. The 40m head is the pump best usage performance for the user | ||||||||||

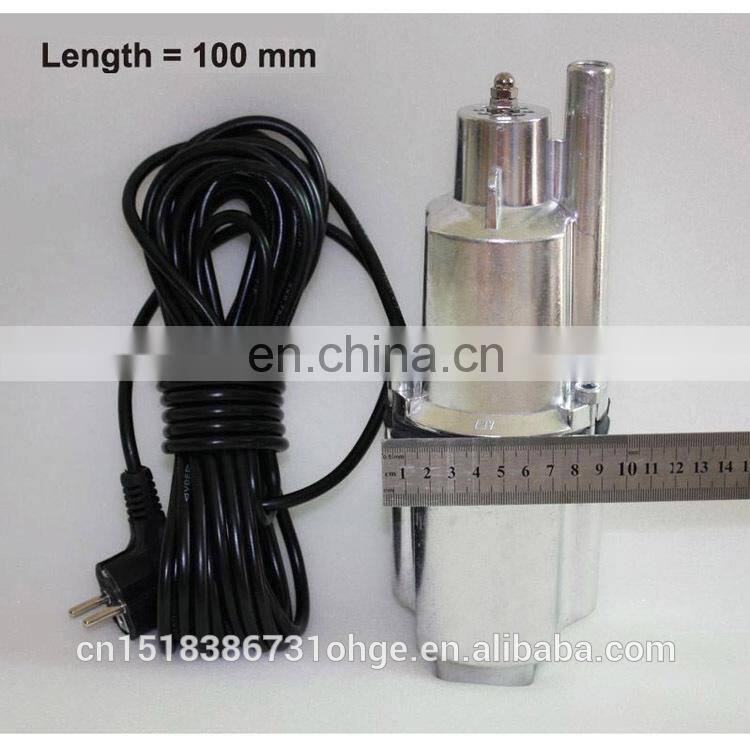

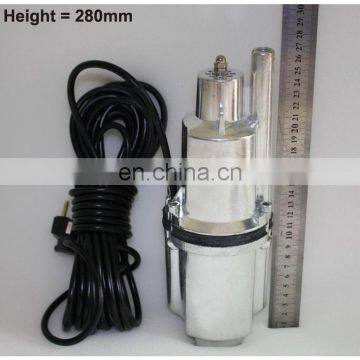

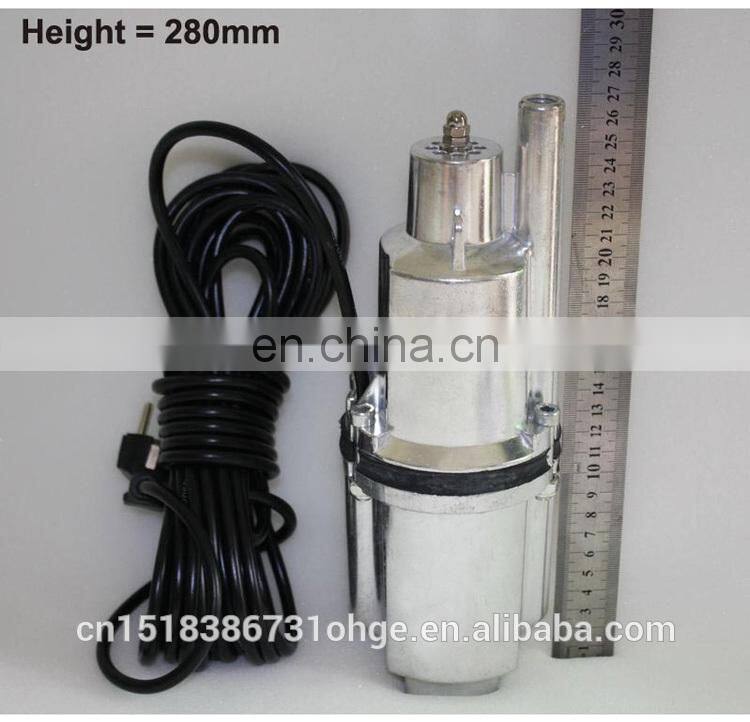

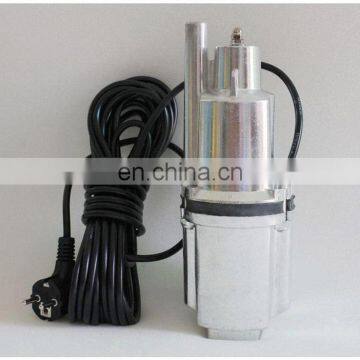

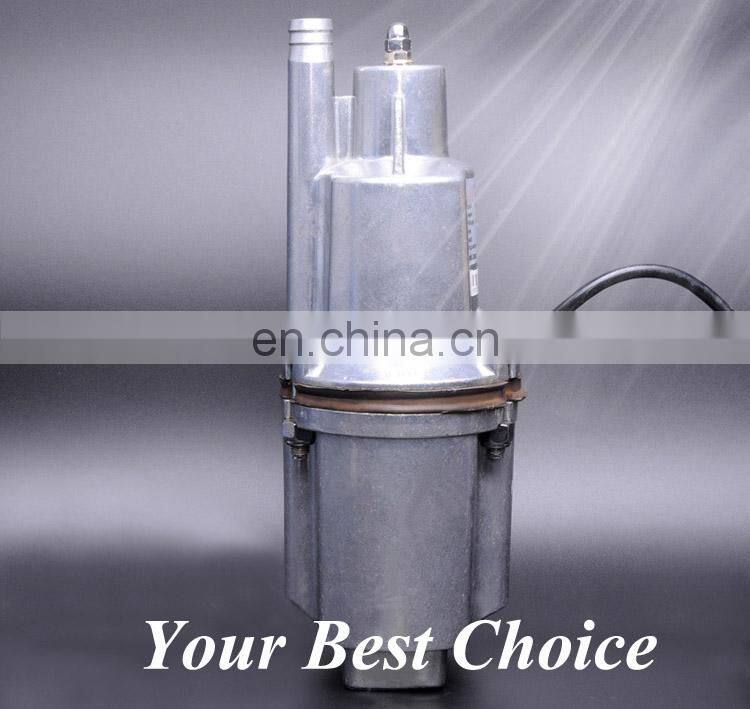

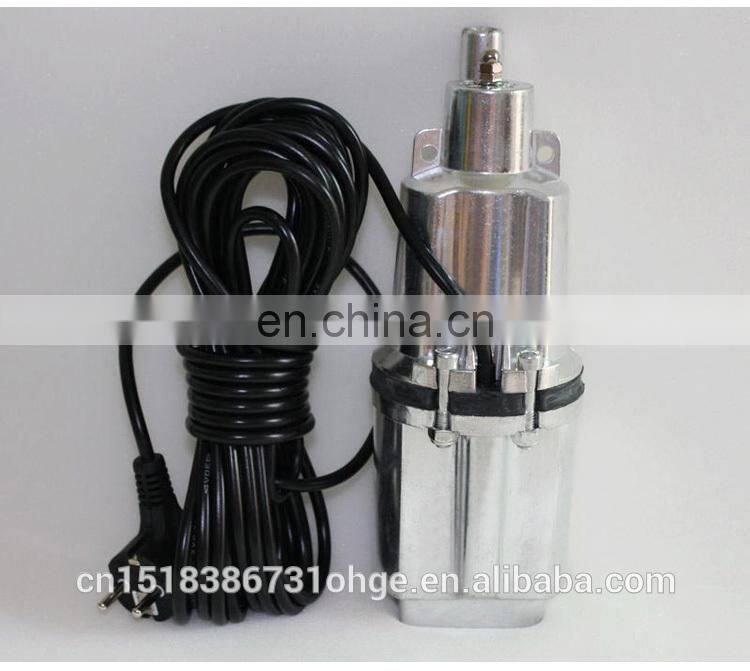

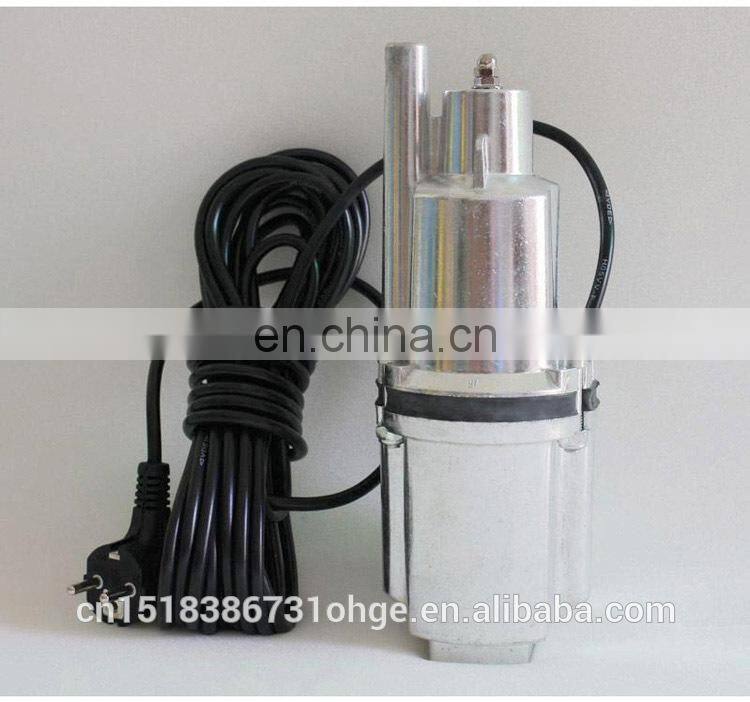

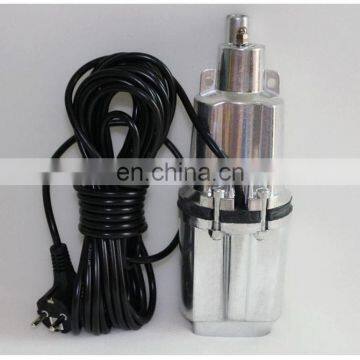

| REAL PUMP PHOTOES |

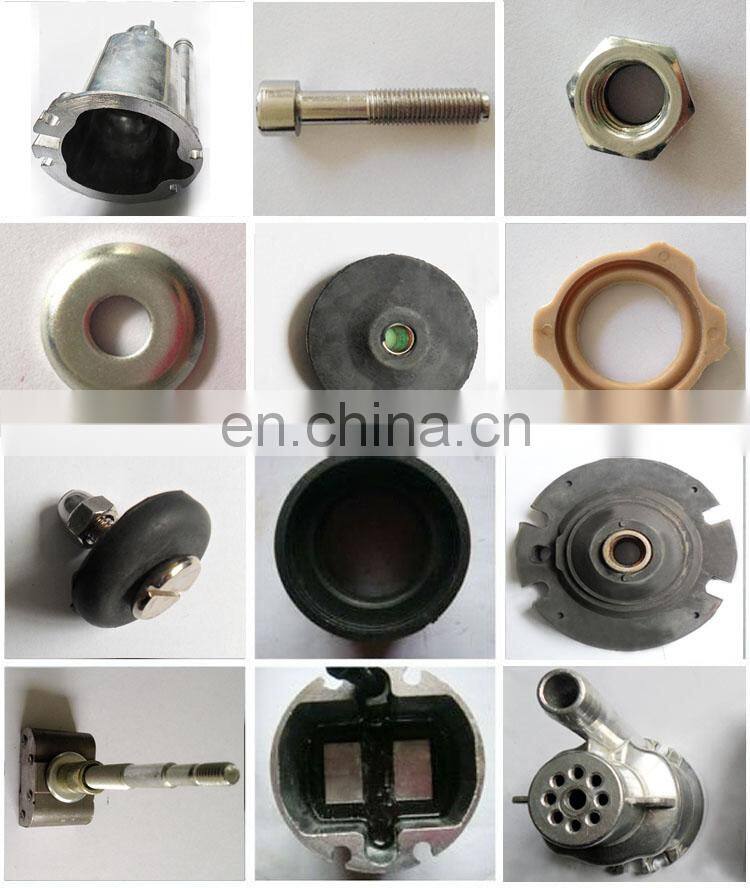

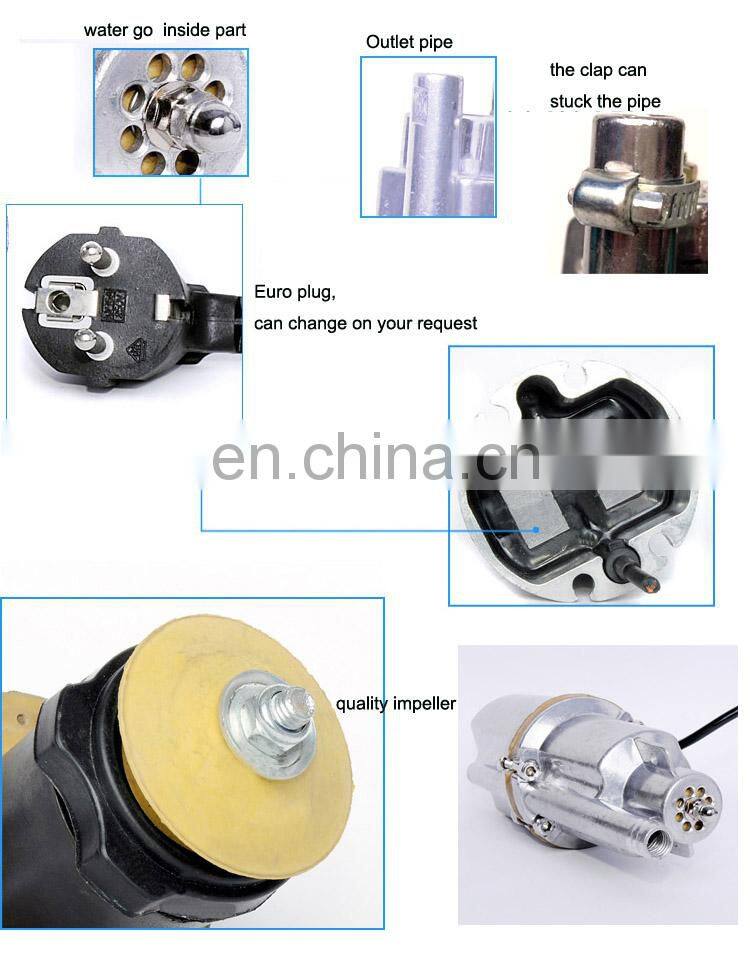

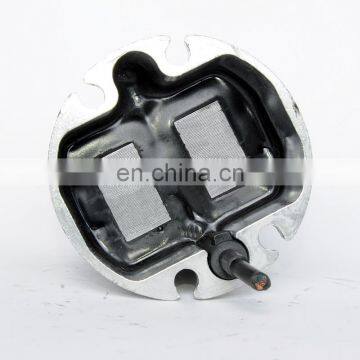

| PUMP SPAE PARTS |

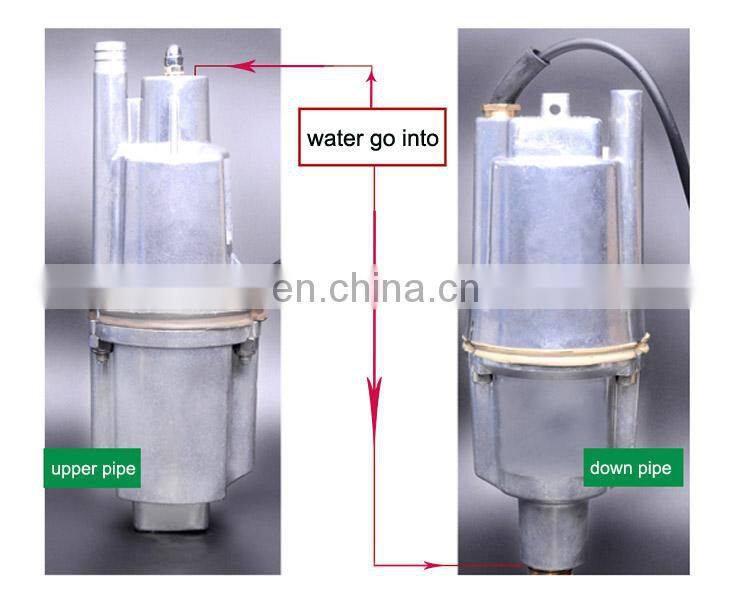

| WE HAVE 2 TYPE MODELS |
| PACKING DETAILS |
STANDARD EXPORT BOX PACKING FOR VIBRATION PUMP:
1. INNER BOX :28.7*13.8*11cm
2. OUTTER BOX: 28*24*31CM
3. EACH UNIT : 1 PUMP + 1 CLAP + 1 ROPE + 1 MANUAL
| FAQ |
Q1:How long can I get the feedbacks after we sent the inquiry?
We will reply you within 2-5 hours (Late only if special case,thanks for understanding)
Q2:Are you direct manufacturer or trading company?
Sure,don't doubt,we are Real direct water pump factory!
Q3:How to guarantee the quality and after sales service of your goods?
1.Strict sampling inspection on products before shipment and intact product packing are insured
2.Follow up and adopt customers feedbacks in a timely manner after sales.
3.Full Refound in case of bad quality!
Q4:What is your warranty time?
One year warranty.
We promised You :Full re-found in case of bad quality!
Q5:Is the sample available?
Yes,Usually we send our sample by DHL,TNT,FEDEX on customers' cost.
Sampe fee will refound after You place order. So Sample is free !
Congratulations! You found the Real Pump Manufacturer!
WITH US YOUR MONEY IN SAFE YOUR BUSINESS IN SAFE

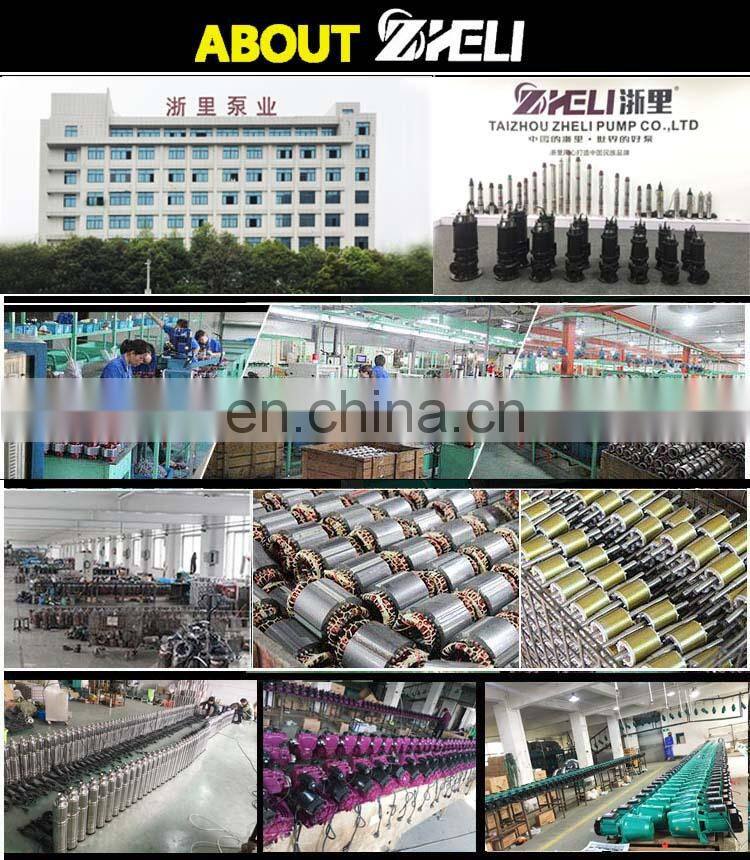

Thanks for choosing ZHELI PUMP as your consideration of pump equipment.
We are an professional pump manufacturer located in Daxi town , Wenling city,Zhejiang, China.
History:10 years experience of manufacturing different kinds of pumps;
Scale:Covers working area of 3000 square meters,have more than 100 employees
Technology:A group of professional technical engineers and a strong R&D team
Management:Scientific management and strict quality control system
Marketing network:America,Europe,Asia,Africa,Mid-East .etc.
1. Competitive Advantage products
2. Full Refound in case of Bad Quality Or late delivery
3. Confidently Agreement "Bussiness Secret CONTRACT"
4. Quality Assurance CONTRACT
5. After Sale Service 24*7
6. Sample Order / Small Order Welcomed
WITH US YOUR MONEY IN SAFE YOUR BUSINESS IN SAFE!!!
