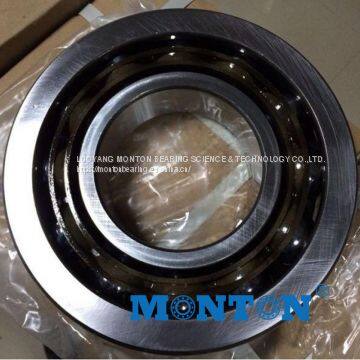

Chemical Industrial Angular Contact Ball Bearing ABEC 5 Ceramic Ball Bearing 7306B
Description:
The raceways of both the inner and outer rings of these non-separable bearings are made with set contact angles. The balls are inserted using counter-bore construction, which allows a larger number of balls to be installed than in deep-groove ball bearings. Single-row angular contact ball bearings can sustain radial, axial and momentary loads. However, any axial load must be applied in one direction. Due to their design, angular contact bearings will experience some amount of axial loading from any radial load that is applied. For this reason, they are often used in pairs.
Specifications:
| Angular contact ball bearings 7306-B | ||
| main dimensions to DIN 628-1, contact angle α = 40° | ||
| d | 30 mm | |
| D | 72 mm | |
| B | 19 mm | |
| a | 31 mm | |
| D1 | 56 mm | |
| Da max | 65 mm | |
| Db max | 67,8 mm | |
| d1 | 46,8 mm | |
| da min | 37 mm | |
| r1 min | 0,6 mm | |
| ra max | 1 mm | |
| ra1 max | 0,6 mm | |
| rmin | 1,1 mm | |
| α | 40 ° | Contact angle |
| m | 0,362 kg | Mass |
| Cr | 35500 N | Basic dynamic load rating, radial |
| C0r | 22100 N | Basic static load rating, radial |
| nG | 12300 1/min | Limiting speed |
| nB | 8600 1/min | Reference speed |
| Cur | 1490 N | Fatigue limit load, radial |
| Bearing No. | D(mm) | d(mm) | B(mm) | Weight(kg) |
| 7200 A | 30 | 10 | 9 | 0.032 |
| 7200 B | 30 | 10 | 9 | 0.032 |
| 7200 C | 30 | 10 | 9 | 0.032 |
| 7201 A | 32 | 12 | 10 | 0.039 |
| 7201 B | 32 | 12 | 10 | 0.039 |
| 7201 C | 32 | 12 | 10 | 0.039 |
| 7203 A | 40 | 17 | 12 | 0.069 |
| 7203 B | 40 | 17 | 12 | 0.069 |
| 7203 C | 40 | 17 | 12 | 0.069 |
| 7303 A | 47 | 17 | 14 | 0.121 |
| 7303 B | 47 | 17 | 14 | 0.121 |
| 7303 C | 47 | 17 | 14 | 0.121 |
| 7204 A | 47 | 20 | 14 | 0.113 |
| 7204 B | 47 | 20 | 14 | 0.113 |
| 7204 C | 47 | 20 | 14 | 0.113 |
| 7304 A | 52 | 20 | 15 | 0.156 |
| 7304 B | 52 | 20 | 15 | 0.156 |
| 7304 C | 52 | 20 | 15 | 0.156 |
| 7404 A | 72 | 20 | 19 | 0.395 |
| 7404 B | 72 | 20 | 19 | 0.395 |
| 7005 A | 47 | 25 | 12 | 0.103 |
| 7005 B | 47 | 25 | 12 | 0.103 |
| 7005 C | 47 | 25 | 12 | 0.103 |
| 7205 A | 52 | 25 | 15 | 0.139 |
| 7205 B | 52 | 25 | 15 | 0.139 |
| 7205 C | 52 | 25 | 15 | 0.139 |
| 7305 A | 62 | 25 | 17 | 0.248 |
| 7305 B | 62 | 25 | 17 | 0.248 |
| 7305 C | 62 | 25 | 17 | 0.248 |
| 7405 A | 80 | 25 | 21 | 0.527 |
| 7405 B | 80 | 25 | 21 | 0.527 |
| 7206 A | 62 | 30 | 16 | 0.217 |
| 7206 B | 62 | 30 | 16 | 0.217 |
| 7206 C | 62 | 30 | 16 | 0.217 |
| 7306 A | 72 | 30 | 19 | 0.381 |
| 7306 B | 72 | 30 | 19 | 0.381 |
| 7306 C | 72 | 30 | 19 | 0.381 |
| 7406 A | 90 | 30 | 23 | 0.686 |
| 7406 B | 90 | 30 | 23 | 0.686 |
Available Products: Single row7000, 7200, 7300, 7400, 71800, 71900 series, Double rows 3200, 3300, 5200, 5300 series
Applications:
| Application Company | Distributors, Retailers, End users |
| Application Places |
Single row angular contact ball bearings: machine tool spindles, high frequency motors, gas turbines, centrifuges, small car front wheel, differential pinion shaft, booster pumps, drilling rigs, food machinery, dividing heads, fill welding, low-noise cooling tower, electrical and mechanical equipment, painting equipment, machine slot board, arc welding machine Double row angular contact ball bearings: pump, blower, air compressor, various types of transmission, fuel injection pumps, printing machinery, planetary reducer, extraction equipment, cycloid reducer, food packaging machinery, welding, soldering iron, square box, gravity gun, wire strippers, axle, test analysis equipment, chemical machinery |
