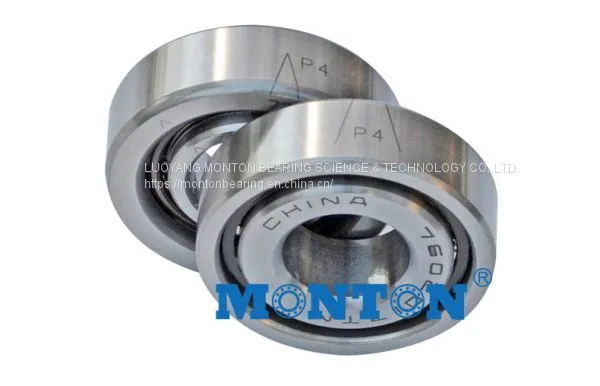

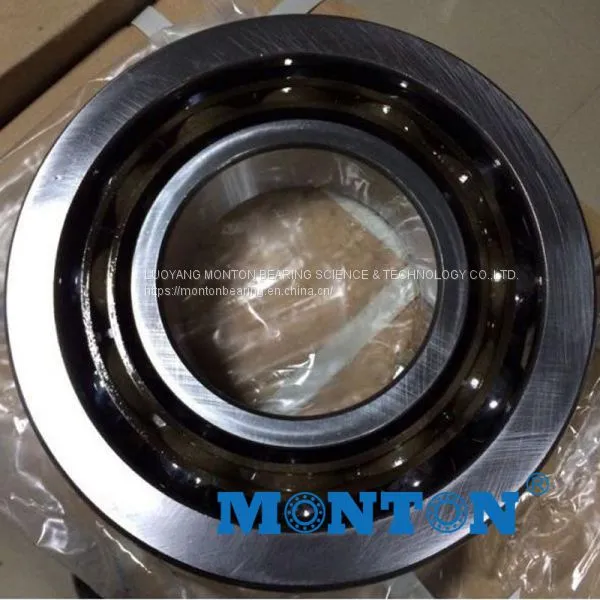

Precision Angular Contact Ball Bearing , 7310B Cooling Tower Single Row Bearing

Precision Angular Contact Ball Bearing , 7310B Cooling Tower Single Row Bearing thumbnail-1
Precision Angular Contact Ball Bearing , 7310B Cooling Tower Single Row Bearing thumbnail-2
Precision Angular Contact Ball Bearing , 7310B Cooling Tower Single Row Bearing thumbnail-3
Precision Angular Contact Ball Bearing , 7310B Cooling Tower Single Row Bearing photo-1
Precision Angular Contact Ball Bearing , 7310B Cooling Tower Single Row Bearing photo-2
Precision Angular Contact Ball Bearing , 7310B Cooling Tower Single Row Bearing photo-3
US$ 100 - 1000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MONTON
Place of Origin:
China
Model Number:
7007B
Contact Supplier Request Quote Chat Now
Luoyang Monton Bearing Science & Technology Co.,ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MONTON
Place of Origin China
Model Number 7007B
Number of Row Single Row
Seals Type seals
Precision Rating P4
Outside Diameter 10, 1000
Bore Size 10, 1000

Precision Angular Contact Ball Bearing , 7310B Cooling Tower Single Row Bearing


Description:


The raceways of both the inner and outer rings of these non-separable bearings are made with set contact angles. The balls are inserted using counter-bore construction, which allows a larger number of balls to be installed than in deep-groove ball bearings. Single-row angular contact ball bearings can sustain radial, axial and momentary loads. However, any axial load must be applied in one direction. Due to their design, angular contact bearings will experience some amount of axial loading from any radial load that is applied. For this reason, they are often used in pairs.


Specifications:


Angular contact ball bearings 7310-B
main dimensions to DIN 628-1, contact angle α = 40°
d 50 mm
D 110 mm
B 27 mm
a 47 mm
D1 87,6 mm
Da max 99 mm
Db max 104,4 mm
d1 73,1 mm
da min 61 mm
r1 min 1 mm
ra max 2 mm
ra1 max 1 mm
rmin 2 mm
α 40 ° Contact angle
m 1,13 kg Mass
Cr 75000 N Basic dynamic load rating, radial
C0r 50000 N Basic static load rating, radial
nG 7600 1/min Limiting speed
nB 6100 1/min Reference speed
Cur 3400 N Fatigue limit load, radial



Bearing No. D(mm) d(mm) B(mm) Weight(kg)
7207 A 72 35 17 0.313
7207 B 72 35 17 0.313
7207 C 72 35 17 0.313
7307 A 80 35 21 0.512
7307 B 80 35 21 0.512
7307 C 80 35 21 0.512
7407 A 100 35 25 0.95
7407 B 100 35 25 0.95
7208 A 80 40 18 0.402
7208 B 80 40 18 0.402
7208 C 80 40 18 0.402
7308 A 90 40 23 0.733
7308 B 90 40 23 0.733
7308 C 90 40 23 0.733
7408 A 110 40 27 1.23
7408 B 110 40 27 1.23
7209 A 85 45 19 0.46
7209 B 85 45 19 0.46
7209 C 85 45 19 0.46
7309 A 100 45 25 0.97
7309 B 100 45 25 0.97
7309 C 100 45 25 0.97
7409 A 120 45 29 1.55
7409 B 120 45 29 1.55
7210 A 90 50 20 0.51
7210 B 90 50 20 0.51
7210 C 90 50 20 0.51
7310 A 110 50 27 1.23
7310 B 110 50 27 1.23
7310 C 110 50 27 1.23
7211 A 100 55 21 0.68
7211 B 100 55 21 0.68
7211 C 100 55 21 0.68
7311 A 120 55 29 1.57
7311 B 120 55 29 1.57
7311 C 120 55 29 1.57
7411 A 140 55 33 2.36
7411 B 140 55 33 2.36
7212 A 110 60 22 0.87
7212 B 110 60 22 0.87
7212 C 110 60 22 0.87
7312 A 130 60 31 1.97
7312 B 130 60 31 1.97
7312 C 130 60 31 1.97
7213 A 120 65 23 1.09
7213 B 120 65 23 1.09
7213 C 120 65 23 1.09


Available Products: Single row7000, 7200, 7300, 7400, 71800, 71900 series, Double rows 3200, 3300, 5200, 5300 series


Applications:


Application Company Distributors, Retailers, End users
Application Places

Single row angular contact ball bearings: machine tool spindles, high frequency motors, gas turbines, centrifuges, small car front wheel, differential pinion shaft, booster pumps, drilling rigs, food machinery, dividing heads, fill welding, low-noise cooling tower, electrical and mechanical equipment, painting equipment, machine slot board, arc welding machine

Double row angular contact ball bearings: pump, blower, air compressor, various types of transmission, fuel injection pumps, printing machinery, planetary reducer, extraction equipment, cycloid reducer, food packaging machinery, welding, soldering iron, square box, gravity gun, wire strippers, axle, test analysis equipment, chemical machinery
