Gas Turbine Angular Contact Ball Bearing / Radial Thrust Bearings Chrome Steel

Gas Turbine Angular Contact Ball Bearing / Radial Thrust Bearings Chrome Steel thumbnail-1
Gas Turbine Angular Contact Ball Bearing / Radial Thrust Bearings Chrome Steel thumbnail-2
Gas Turbine Angular Contact Ball Bearing / Radial Thrust Bearings Chrome Steel thumbnail-3

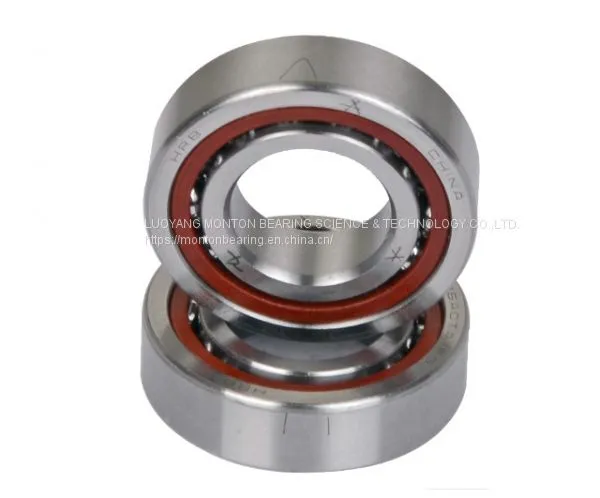

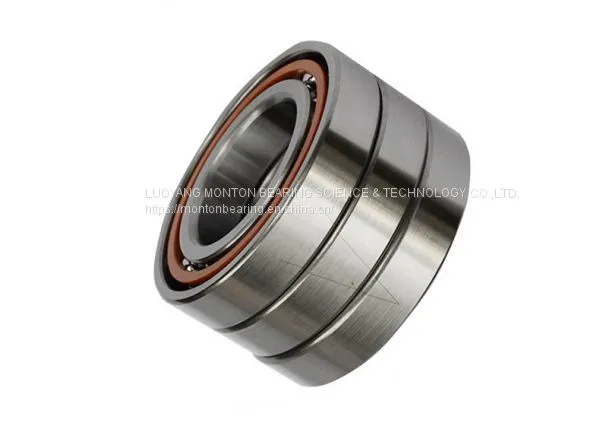

Gas Turbine Angular Contact Ball Bearing / Radial Thrust Bearings Chrome Steel photo-1
Gas Turbine Angular Contact Ball Bearing / Radial Thrust Bearings Chrome Steel photo-2
Gas Turbine Angular Contact Ball Bearing / Radial Thrust Bearings Chrome Steel photo-3
US$ 100 - 1000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MONTON
Place of Origin:
China
Model Number:
7007B
Contact Supplier Request Quote Chat Now
Luoyang Monton Bearing Science & Technology Co.,ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MONTON
Place of Origin China
Model Number 7007B
Number of Row Single Row
Seals Type seals
Precision Rating P4
Outside Diameter 10, 1000
Bore Size 10, 1000

Gas turbine angular contact ball bearing


Product Description

Angular contact ball bearings are separated type design, inside and outside the circle of the shoulder on both sides of the high and low.In order to improve the load capacity of bearing, it will get on one shoulder and processing is low, so that the bearing can be loaded into the ball more.


Application: Angular Contact Ball Bearing is widely used in cars, compressors, construction, electric motors, food industry, home appliances etc. As a rolling element, it turns the world.


TYPE Angular Contact Ball Bearings
Brand OEM
Material AISI 52100 Chrome Steel
Dimension Standard
Precision P0, P6, P5, P4
Vibration V1, V2, V3 Available
Play or Clearance C0, C1, C2, C3 Available
Noise Z1, Z2, Z3 Available
Closure Type Open Type


Angular Contact Ball Bearing Number











(mm) (mm) (mm) (kN) (kN) (r/min) (r/min) (kg)
3302 15 42 19 15.2 11.9 10000 14000 0.132
3304 20 52 22.2 20.8 18.4 8200 11000 0.23
3305 25 62 25.4 28.9 26.5 6800 9100 0.369
3306 30 72 30.2 38.1 36.1 5800 7800 0.585
3307 35 80 34.9 48.6 46.8 5200 7000 0.816
3308 40 90 36.5 54.1 53.8 4600 6100 1.07
3309 45 100 39.7 66.1 67.3 4100 5500 1.42
3310 50 110 44.4 86.1 88.6 3800 5000 1.95
3311 55 120 49.2 101 106 3400 4500 2.53
3312 60 130 54 125 132 3100 4200 3.24
3313 65 140 58.7 142 153 2900 3900 4.08
3314 70 150 63.5 151 160 2700 3600 5.04
3315 75 160 68.3 156 191 3000 4100 6.27
3316 80 170 68.3 184 213 2400 3100 6.93
3317 85 180 73 188 219 2200 3000 8.3
3318 90 190 73 205 242 2100 2800 9.23
3319 95 200 77.8 218 270 2000 2600 10.9
3320 100 215 82.6 249 324 1800 2500 13.5
3322 110 240 92.1 281 388 1600 2200 18.9










BearingNo. Boundary dimensions Basic load ratings(kN) Limiting speed Mass
mm Dynamic Static rpm kg
d D B Cr Cor Grease Oil ≈
7000AC 10 26 8 4.7 2.1 24,000 32,000 0.019
7001AC 12 28 8 5.1 2.4 22,000 28,000 0.021
7002AC 15 32 9 5.9 3.2 19,000 25,000 0.03
7003AC 17 35 10 6.3 3.6 16,000 22,000 0.04
7004AC 20 42 12 10 5.7 14,000 19,000 0.064
7005AC 25 47 12 11.1 7 12,000 17,000 0.074
7006AC 30 55 13 14.4 9.8 9,500 14,000 0.11
7007AC 35 62 14 17.3 12.1 8,500 12,000 0.15
7008AC 40 68 15 18.7 14.1 8,000 11,000 0.18
7009AC 45 75 16 24.7 19.1 7,500 10,000 0.23
7010AC 50 80 16 25.3 20.5 6,700 9,000 0.25
7011AC 55 90 18 35.5 26.5 6,000 8,000 0.38
7012AC 60 95 18 37 31.3 5,600 7,500 0.4
7013AC 65 100 18 38 33.6 5,300 7,000 0.43
7014AC 70 110 20 45.8 40.9 5,000 6,700 0.6
7015AC 75 115 20 47.5 43.3 4,800 6,300 0.63
7016AC 80 125 22 57.5 51 4,500 6,000 0.85
7017AC 85 130 22 55 52.8 4,300 5,600 0.89
7018AC 90 140 24 71.7 68.7 4,000 5,300 1.15
7019AC 95 145 24 69.8 69.1 3,800 5,000 1.2
7020AC 100 150 24 69 69.7 3,800 5,000 1.25
7021AC 105 160 26 80.9 72.2 3,600 4,800 1.6
7022AC 110 170 28 98.5 93.9 3,400 4,600 1.95
7024AC 120 180 28 103.5 104.5 2,800 3,800 2.1
7026AC 130 200 33 122.4 127.8 2,600 3,400 3.33
7028AC 140 210 33 145.3 152.8 2,400 3,200 3.46
7030AC 150 225 35 174.2 184.9 2,200 3,000 4.8











Product Tags: 71808C , 71808ACP4SUL
