13.2Kw/14.5kva 60Hz DG13KSEm Single Phase Silent Diesel Generator

13.2Kw/14.5kva 60Hz DG13KSEm Single Phase Silent Diesel Generator photo-1
13.2Kw/14.5kva 60Hz DG13KSEm Single Phase Silent Diesel Generator photo-2
13.2Kw/14.5kva 60Hz DG13KSEm Single Phase Silent Diesel Generator photo-3
13.2Kw/14.5kva 60Hz DG13KSEm Single Phase Silent Diesel Generator photo-4

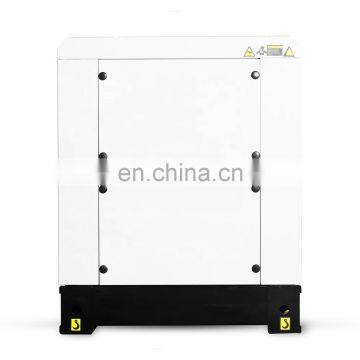

13.2Kw/14.5kva 60Hz DG13KSEm Single Phase Silent Diesel Generator photo-5
13.2Kw/14.5kva 60Hz DG13KSEm Single Phase Silent Diesel Generator photo-6
13.2Kw/14.5kva 60Hz DG13KSEm Single Phase Silent Diesel Generator photo-7
US$ 2,200 - 3,019 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ITCPower
Place of Origin:
Jiangsu, China
Model Number:
DG13KSEm
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Brand Name ITCPower
Place of Origin Jiangsu, China
Model Number DG13KSEm
Rated Current 60A
Output Type AC Single Phase
Speed 3000/3600RPM
Frequency 60HZ
Rated Voltage 200V
Rated Power 13.2KW/14.5KVA

13.2Kw/14.5kva 60Hz DG13KSEm single phase silent diesel generator

1. Specification of our 13.2kw14.5kva 60Hz DG13KSEm 50Hz single phase silent diesel generator



Prime Power(KVA) 13.2 Governor Mechanical
Prime Power(KW) 13.2 Cooling  Water
Standby Power(KVA) 14.5 Lubricant Capacity(L) 6
Standby Power(Kw) 14.5 Air Intake Flow(m3/min) 2
Power Factor 1 Exhaust Gas Flow(m3/min) 6
Frequency(Hz) 60 Exhaust Gas Temperature(℃) 550
Rate Voltage(V) 220 Exhaust Gas Back Pressure(kpa) 5
Rate Current(A) 60 Compression Ratio 18
Controller IL-NT MRS10   Aspiration Natural
Control Voltage(DC/V) DC12 Bore(mm) 85
Battery Capacity(Ah) 55 Stroke(mm) 95
Coolant Capacity(L) 6 Displacement(L) 2.2
Fuel Tank Capacity(L) 77.5 SAE 4/7.5
Fuel Consumption(L/hour) 6 Dimension(mm) 692*492*675
Running Time(Hour) 13 Net Weight(kg) 205
Sound @7m(dBA) 65 Alternator Model 164D
Open Type Size(mm) 1560*900*980 Prime Power(KVA) 16.5
Open Type Weight(kg) 490 Structure 1 Bearing
Canopy Type Size(mm) 1950*900*1120 Excitation Mode Self-excitation
Canopy Type Weight(kg)   760 Insulation Class H
Enegine Model  HY485 Protection Class IP23
Prime Power(KW) 20 TIF <50
Structure 4 cyliner, in line THF <2%
Fuel Type Diesel Air Flow(m3/s) 0.071
Fuel Consumption(L/hour) 6 AVR Model AS440
Lubricant Consumption(L/hour) 0.03





  2. Why choose our 13.2KW 60Hz single phase silent diesel generator?

ITCPower Team



13.2Kw/14.5kva 60Hz DG13KSEm single phase silent diesel generator




ITCPower Factory



13.2Kw/14.5kva 60Hz DG13KSEm single phase silent diesel generator











 3. Certification of our 13.2KW 60Hz single phase diesel generator



ITCPower generator Certificate   Show

13.2Kw/14.5kva 60Hz DG13KSEm single phase silent diesel generator







ITCPower generator Show



13.2Kw/14.5kva 60Hz DG13KSEm single phase silent diesel generator











How to come to ITCPower

13.2Kw/14.5kva 60Hz DG13KSEm single phase silent diesel generator







Service assurance of generator and other machines



1. Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.



2. Service quality assurance:
Our sale staffs are all experience and professional,we can provide the most proper system design and optimized equipment for the customers.



3. After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent maintenance, We have distributors all over World that support after sale service.



4. Spare parts supply:
We provide all kinds of spare parts and technical support.



5. Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.



Thanks for your attention to our 13.2KW 60Hz single phase diesel generator!
