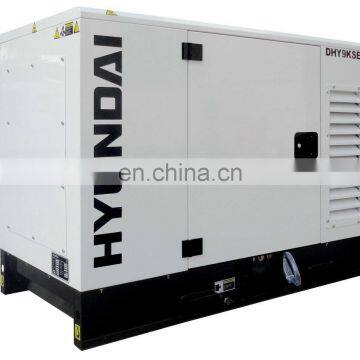

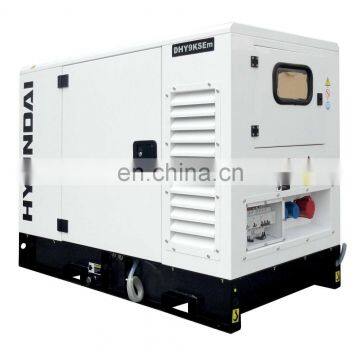

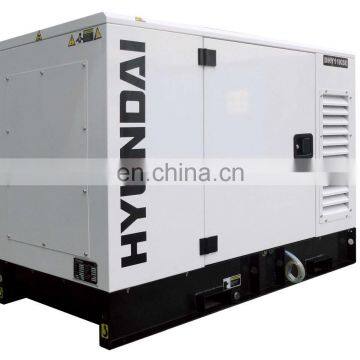

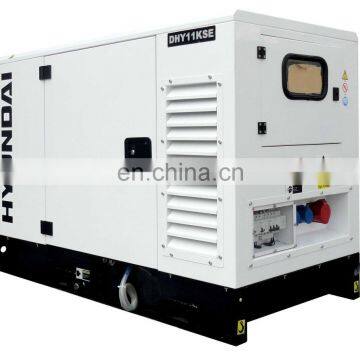

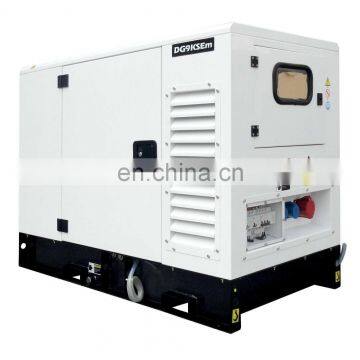

China Cheap Factory 10kva Water Cooled Power Industry 3 Cylinder Diesel Generator
US$ 2,390 - 2,863
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ITCPower
Place of Origin:
Jiangsu, China
Model Number:
DG11KSE
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Super Silent 10KW Diesel Electric GeneratorUS$ 2,760 - 2,790MOQ: 1 Set -
China Manufacturer Factory Price 10KVA 10KW Silent Diesel GeneratorUS$ 2,400 - 2,500MOQ: 1 Set
-
China Manufacturer 150KVA Deutz Engine Silent Diesel Generator GensetUS$ 14,000 - 15,000MOQ: 1 Set
-
32KW 40KVA Water Cooled Diesel GeneratorUS$ 3,256 - 4,238MOQ: 1 Set
-
380v Three Phase Industry 24KW/30KVA Diesel Generation PriceUS$ 3,900 - 4,390MOQ: 10 Sets
Brand Name
ITCPower
Place of Origin
Jiangsu, China
Model Number
DG11KSE
Rated Current
25A
Output Type
AC Three Phase
Speed
3000/3600RPM
Frequency
50/60HZ
Rated Voltage
220/380/400
Rated Power
10KVA
Product Description
| GENEATOR MODEL | DG11KSEDG11KSE | DG14KSEG14KSEE | DG16KSE | DG22KSDG22KSEE | DG28KDG28KSESE | DG3DG34KSE4KSE |
| Prime Power (kVA) | 10 | 12.5 | 15 | 20 | 25 | 31.3 |
| Prime Power (kW) | 8 | 10 | 12 | 16 | 20 | 25 |
| Standby Power (KVA) | 11 | 13.8 | 16.5 | 22 | 27.5 | 34.4 |
| Standby Power (KW) | 8.8 | 11 | 13.2 | 17.6 | 22 | 27.5 |
| Power Factor | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Frequency (Hz) | 50 | 50 | 50 | 50 | 50 | 50 |
| Rate Voltage (V) | 400/230 | 400/230 | 400/230 | 400/230 | 400/230 | 400/230 |
| Rate Current (A) | 14.4 | 18 | 21.7 | 28.9 | 36.1 | 45.2 |
| Controller | IL-NT MRS10 | IL-NT MRS10 | IL-NT MRS10 | IL-NT MRS10 | IL-NT MRS10 | IL-NT MRS10 |
| Control Voltage (DC/V) | 12 | 12 | 12 | 12 | 12 | 12 |
| Battery Capacity (Ah) | 55 | 55 | 55 | 55 | 55 | 55 |
| Coolant Capacity (L) | 5.8 | 6 | 6 | 10.2 | 10.2 | 10.2 |
| Fuel Tank Capacity(Base frame) (L) | 42 | 46 | 77.5 | 77.5 | 93 | 93 |
| Fuel Consumption (L/Hour) | 3.5 | 4.5 | 5 | 6.3 | 7.8 | 9.5 |
| Running Time (Hour) | 12 | 10 | 16 | 12 | 12 | 10 |
| Sound @7 meter (dBA) | 62 | 65 | 65 | 65 | 67 | 67 |
| DIMENTIONS & WEIGHT | ||||||
| Open Type Product size (mm) | 1150×780×910 | 1510×900×980 | 1510×900×980 | 1510×900×980 | 1810×950×1020 | 1810×950×1020 |
| Open Type Weight net (kg) | 365 | 480 | 490 | 505 | 650 | 690 |
| Canopy type product size (mm) | 1500×760×1090 | 1630×760×1115 | 1900×900×1120 | 1900×900×1120 | 2200×950×1250 | 2200×950×1250 |
| Canopy Type Weight net (kg) | 480 | 655 | 760 | 786 | 870 | 1000 |
| Engine Model | D380 | D390 | D485 | D490 | D4100 | D4102 |
| Alternator | 164B | 164C | 164D | 184E | 184F | 184G |
Product Details
Contact us for more product details >>
- Cooperated engine brands
Changchai, Yuchai, Deutz, Cummins, Perkins
- Cooperated alternator brands
Stamford, Dingyi
Contact us for more option details >>
Production Flow
- R&D capability
1. There are 9 engineers in our Technology and Development Department. 3 of them have been worked in ITC Power and this industy area for more than 10 years and 4 at least 5 years. They work hard to improve the product performance and new designs every season.
2. About 2000000RMB is used for investment in R&D every year.
- Quality assurance
Before deliver gensets to you, each generator set will be tested the quality for one hour with below performance:
--Different loading performance (0%,25%,50%,75%,100%)
--Heat run test
--Insulation resistance test
--starting test
--tests of all alarm and timing relays
Packaging & Shipping
Our Services
Warranty Policy:
- Guarantee for 1 year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration, our company provides cost parts maintenance for genset.
- The generator with high quality and professional maintenance can be used for at least 25years.
