200KW/250Kva 400/230V 50Hz Three Phase Water Cooling Silence Diesel Generator

200KW/250Kva 400/230V 50Hz Three Phase Water Cooling Silence Diesel Generator thumbnail-1
200KW/250Kva 400/230V 50Hz Three Phase Water Cooling Silence Diesel Generator thumbnail-2
200KW/250Kva 400/230V 50Hz Three Phase Water Cooling Silence Diesel Generator thumbnail-3
200KW/250Kva 400/230V 50Hz Three Phase Water Cooling Silence Diesel Generator thumbnail-4
200KW/250Kva 400/230V 50Hz Three Phase Water Cooling Silence Diesel Generator thumbnail-5
200KW/250Kva 400/230V 50Hz Three Phase Water Cooling Silence Diesel Generator thumbnail-6
200KW/250Kva 400/230V 50Hz Three Phase Water Cooling Silence Diesel Generator photo-1
200KW/250Kva 400/230V 50Hz Three Phase Water Cooling Silence Diesel Generator photo-2
200KW/250Kva 400/230V 50Hz Three Phase Water Cooling Silence Diesel Generator photo-3
200KW/250Kva 400/230V 50Hz Three Phase Water Cooling Silence Diesel Generator photo-4

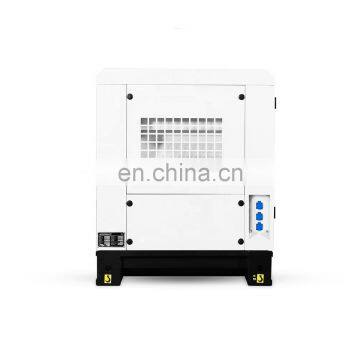

200KW/250Kva 400/230V 50Hz Three Phase Water Cooling Silence Diesel Generator photo-5

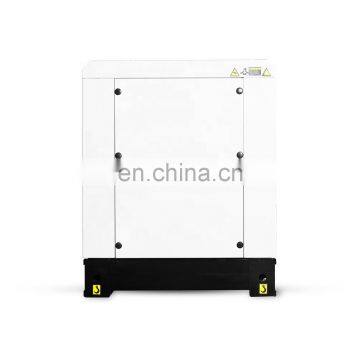

200KW/250Kva 400/230V 50Hz Three Phase Water Cooling Silence Diesel Generator photo-6
US$ 300 - 500 MOQ: 10 Sets
Key Specifications
Get Latest Price
Brand Name:
ITCPower
Place of Origin:
Jiangsu, China
Model Number:
DAE275XS
Contact Supplier Request Quote Chat Now
Hyperflow Flow Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ITCPower
Place of Origin Jiangsu, China
Model Number DAE275XS
Rated Current 360.9A
Output Type AC Three Phase
Speed 3000/3600RPM
Frequency 50 HZ
Rated Voltage 400/230V
Rated Power 250KVA
Product Description

Parameters of DAE275XS

Prime Power(KVA)
250
Cooling
Water
Prime Power(KW)
200
Lubricant Capacity(L)
27.6
Standby Power(KVA)
275
Air Intake Flow(m3/min)
23
Standby Power(Kw)
220
Exhaust Gas Flow(m3/min)
52
Power Factor
0.8
Exhaust Gas Temperature(℃)
591
Frequency(Hz)
50
Exhaust Gas Back Pressure(kpa)
10
Rate Voltage(V)
400/230
Compression Ratio
18.1
Rate Current(A)
360.9
Aspiration
Turbocharging
Controller
II-NT MRS10
Bore(mm)
114
Control Voltage(DC/V)
DC24V
Stroke(mm)
135
Battery Capacity(Ah)
240
Displacement(L)
8.9
Coolant Capacity(L)
41.1
SAE
2/11.5
Fuel Tank Capacity(L)
505
Dimension(mm)
1129*743*1171
Fuel Consumption(L/hour)
53
Net Weight(kg)
702
Running Time(Hour)
10
Alternator Model(Stamford)
UCDI274K
Open Type Size(mm)
2550*1150*1708
Prime Power(KW)
200
Open Type Weight(kg)
2150
Model (ITC Power)
274K
Canopy Type Size(mm)
36501200*2000
Prime Power(KW)
200
Canopy Type Weight(kg)
2810
Structure
1 Bearing
Enegine Model
6LTAA8.3-G2
Excitation Mode
Self-excitation
Prime Power(KW)
220
Insulation Class
H
Structure
6 cyliner, in line
Protection Class
IP23
Fuel Type
Diesel
TIF
<50
Fuel Consumption(L/hour)
53
THF
<2%
Lubricant Consumption(L/hour)
0.265
Air Flow(m3/s)
0.514
Governor
Electrical
AVR Model
AS440
Measurement, display
DSE7320
ALarm, shutdown function
Genset Prime Power Kw
●
Low Oil Pressure Warning,shutdown
●
Power Factor
●
High Water Temperature Warning,shutdown
●
Engine Speed
●
Engine Over & Under Speed Shutdown
●
Phase to Neutral Voltage
●
Low Fuel Level Warning,shutdown
●
Phase to Phase Voltage
●
Battery Low & High Voltage Warning, shutdown
●
Genset Frequency
●
Battery Charging Failure
●
Genset Current
●
Genset Low & High Voltage Warning, shutdown
●
Mains Phase to Neutral Voltage
●
Alternator 3phase Voltage Balance shutdown
●
Mains Phase to Phase Voltage
●
Alternator Low & High Frequency Warning, shutdown
●
Mains Frequency
●
Genset Overload Shutdown
●
Engine Oil Pressure
●
Alternator 3phase Current Unbalance Shutdown
●
Engine Water Temperature
●
Mains Low & High Voltage Warning,
●
Fuel Level
●
High Water Temperature Warning, shutdown
●
Battery Voltage
●
Genset Power Kva
●
Genset Running Time
●
Genset Output Kwh
●
History File
●
Standdard ●                                Optional ○

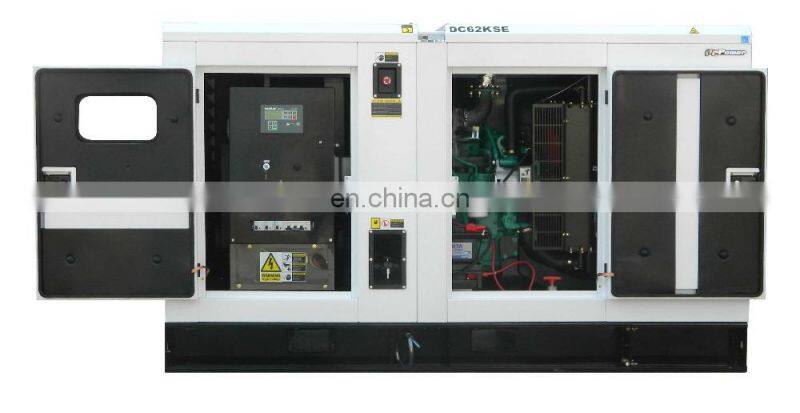

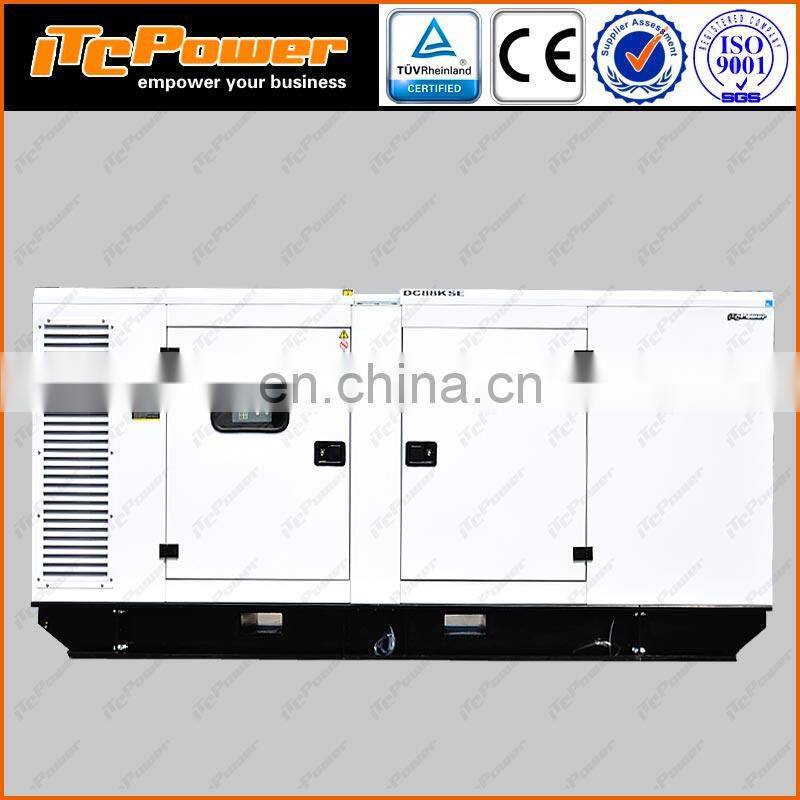

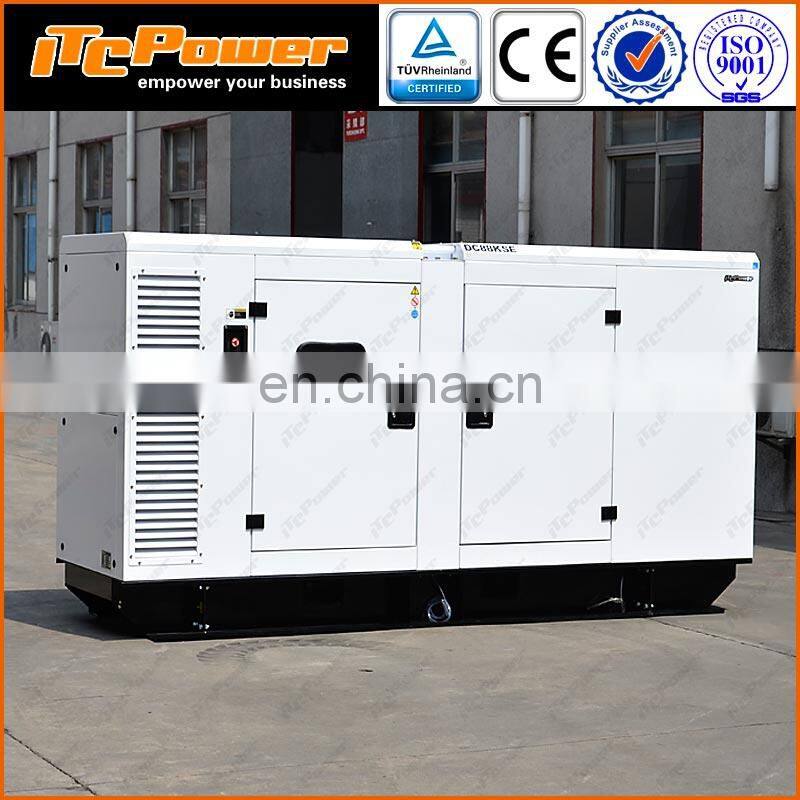

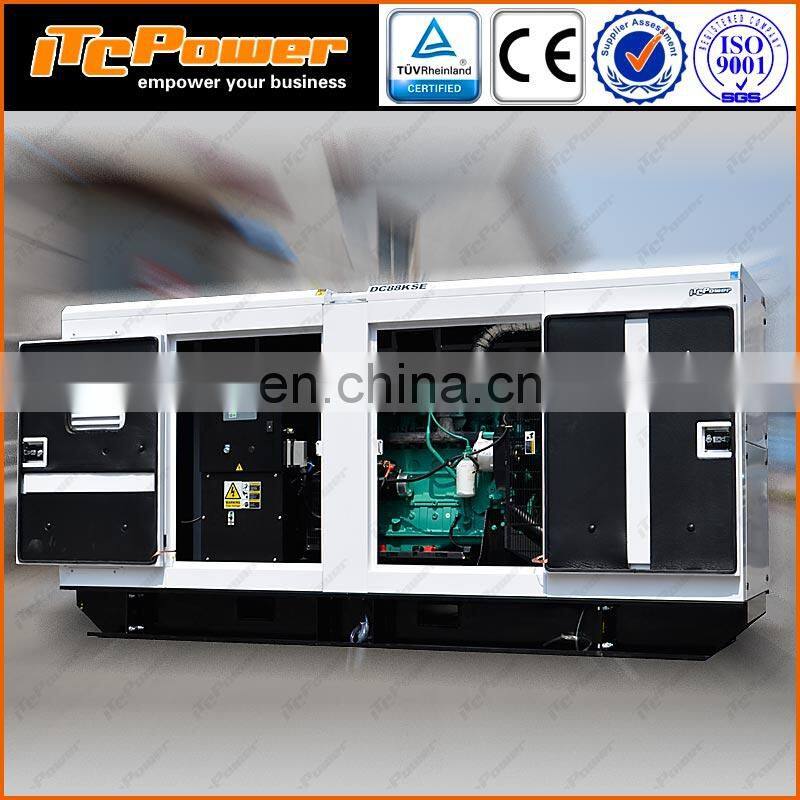

200KW/250Kva 400/230V 50Hz three phase water cooling silence diesel generator
200KW/250Kva 400/230V 50Hz three phase water cooling silence diesel generator
200KW/250Kva 400/230V 50Hz three phase water cooling silence diesel generator
200KW/250Kva 400/230V 50Hz three phase water cooling silence diesel generator

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Certifications
200KW/250Kva 400/230V 50Hz three phase water cooling silence diesel generator
200KW/250Kva 400/230V 50Hz three phase water cooling silence diesel generator
200KW/250Kva 400/230V 50Hz three phase water cooling silence diesel generator
200KW/250Kva 400/230V 50Hz three phase water cooling silence diesel generator

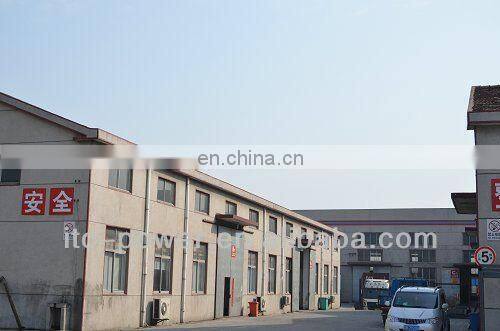

How to Get ITC Power
200KW/250Kva 400/230V 50Hz three phase water cooling silence diesel generator
200KW/250Kva 400/230V 50Hz three phase water cooling silence diesel generator

Position in China

* Tel: 86-519-85099001

* Fa: 86-519-85099002

* Add.: NO.7 Rongsheng Road, Cuibei Henglin Town, Changzhou City, Jiangsu Province, China

Get to ITC Power from Shanghai

* By Car: 3 hour

* By train: 1 hour

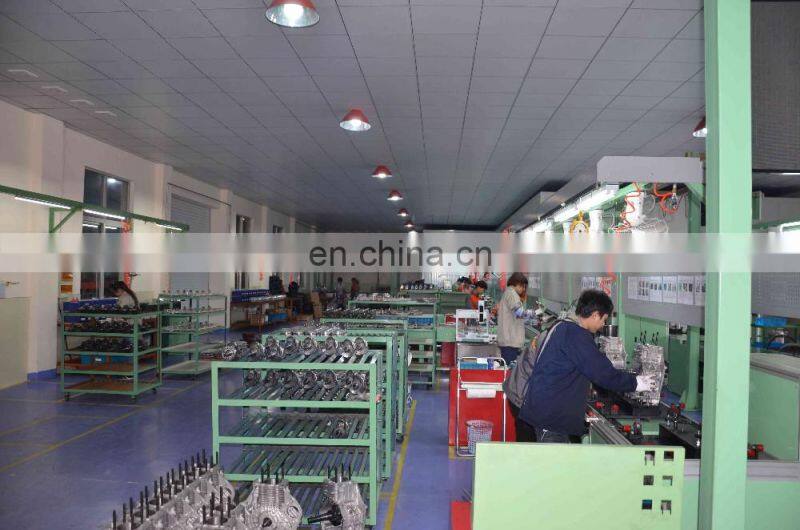

Our Teaam
200KW/250Kva 400/230V 50Hz three phase water cooling silence diesel generator
200KW/250Kva 400/230V 50Hz three phase water cooling silence diesel generator
200KW/250Kva 400/230V 50Hz three phase water cooling silence diesel generator
200KW/250Kva 400/230V 50Hz three phase water cooling silence diesel generator
