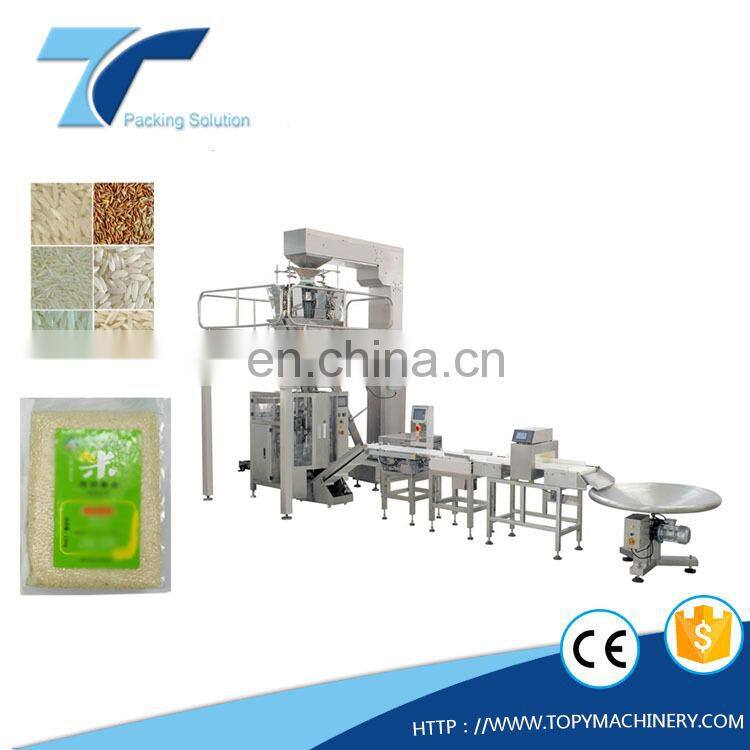

New preferential Low Cost Price Pouch Automatic Pillow Bag Grain Nuts Rice Packing Machine
1.TOPY VP420/500/620/800 Middle Speed Vertical packaging Machine
Application:
Suitable to pack coffee bean, seed, sugar, salt, spice, potato chips, puffed food, jelly, pet food, snacks, gummy, etc.
· PLC controller with touch screen interface
· Servo-driven end seal jaws
· Servo-driven film transport
· Hot printer and film feeding system synchronous
· Quickly changing one-piece bag former
· Eye mark sensor for film tracking
· Stainless steel frame
Optional device:
Filling nitrogen device, gusseted device, punching jaws, chain bag device, PE film device, venting device
Technical advantages:
Low cost high gain, high speed and efficiency.
MITSUBISHI PLC control system, large touch screen, convenient to operate
Film drawing down system and horizontal sealing controlled by servo motor minimize the loss with complete automatic warn protection function
The feeding, measuring, filling, sealing, date printing, charging (exhausting), counting and food product delivery are all finished when it equips with feeding and measuring equipment.
Specifications:
Model |
TOPY-VP500 |
TOPY-VP620 |
TOPY-VP800 |
Bag Size |
(L)100-300mm (W)80-240mm* |
(L)100-380mm* (W)100-300mm |
(L) 50-380mm* (W)110-400mm |
Bag Speed |
15- 60bags/min |
15- 60bags/min |
10-30bags/min |
Film width |
180-500mm |
220-620mm |
340-800mm |
Air consumption |
0.6Mps 0.36m3/min |
0.6Mps 0.4m3/min |
0.6Mps 0.7m3/min |
Power supply |
3.0kw, 220V 50/60HZ |
4.0kw, 220V 50/60HZ |
4.5kw, 220V 50/60HZ |
Packed Dimensions |
(L)1550*(W)1160*(H)1480mm |
(L)1600*(W)1260*(H)1680mm |
(L)1600*(W)1500*(H)2050mm |
Details of Machinery:
Bag Type:
If you think the above machine can't fulfill your requirement , please click the following link to get more machine demonstration, like:
Automatic Mini Doy-pack Machine>>
Automatic VFFS Vertical Packaging Machines>>
Granules Packaging Systems>>
Powder Packaging Systems>>
And customization is avalable for us, pls click here to customize packing solution.
