Foshan manufacturer Digital Sensors Automatic Granule Weighing Packing Machine
- 5 Piece / Pieces per Month
- Shunde Port
- T/T Credit Card
-
Automatic Potato Corn Wheat Powder Pouch Packing Machine for sale
-
Customized Design Automatic Doypack Pouch Frying Frozen Chicken Nuggets Packing Machine
-
New preferential Low Cost Price Pouch Automatic Pillow Bag Grain Nuts Rice Packing Machine
-
Automatic Doypack Pouch Ice Candy Packaging Filling And Sealing Machine
-
PLC Control and Screen Operation Plastic Bag Milk Pack Packing Machine
-
small rice mill z-type mini th bucket elevator specifications machine parts
Product Details
| Brand Name: | TOP Y MACHINERY | Place of Origin: | Guangdong, China | Certification: | CE Certification |
| Dimension(L*W*H): | L)1870X(W)650X(H)1650mm | Voltage: | 220V/380V/110V | ||
| Function: | Filling, Sealing | Condition: | New | Automatic Grade: | Automatic |
| Driven Type: | Pneumatic | Packaging Type: | Bags, Pouch, Stand-up Pouch |
Packaging Details
plywood cases
Product Description

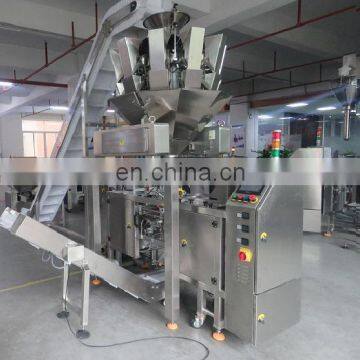

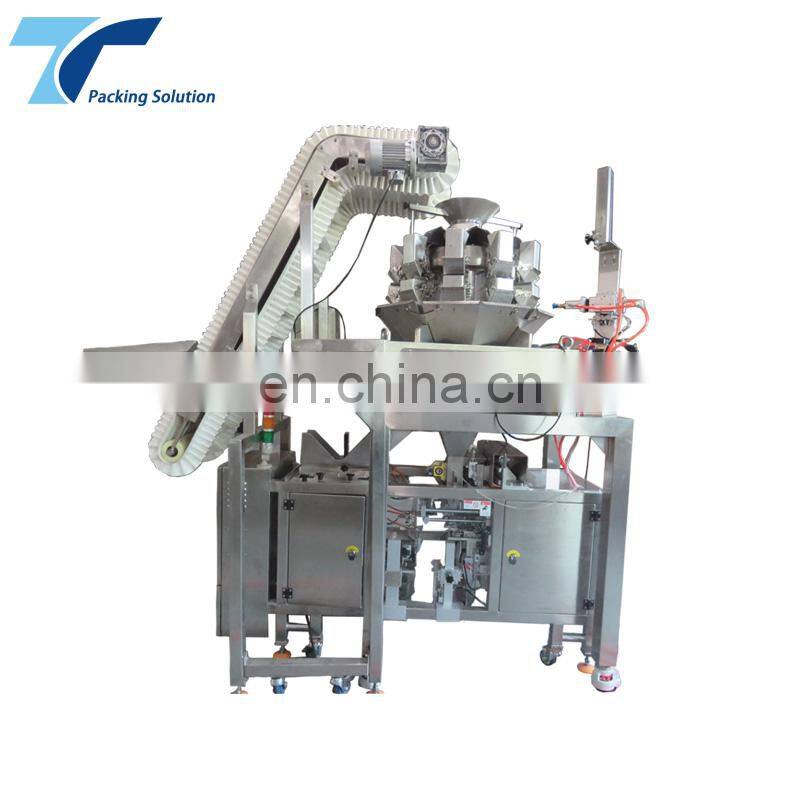

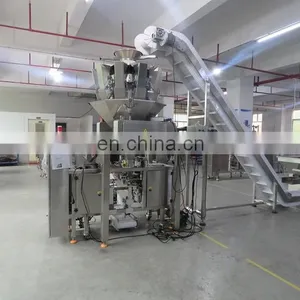

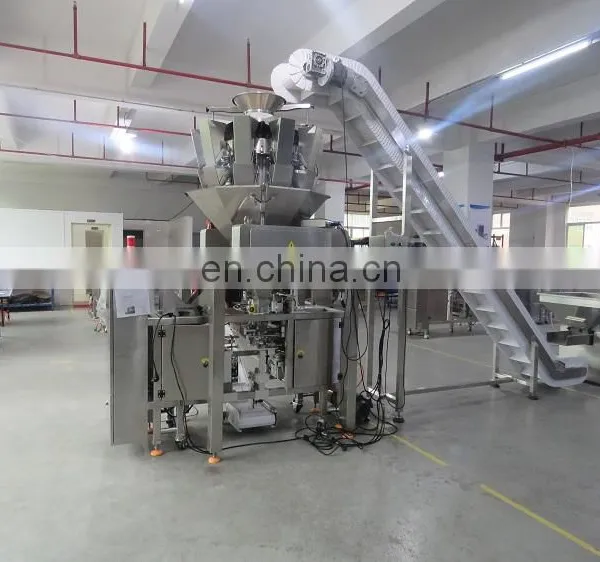

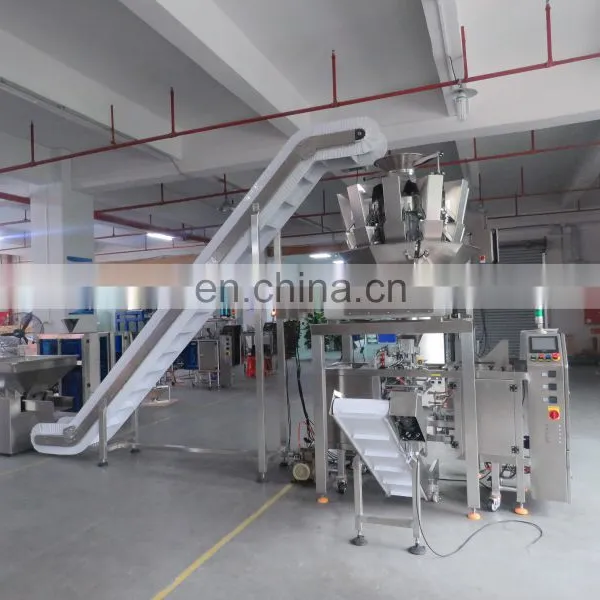

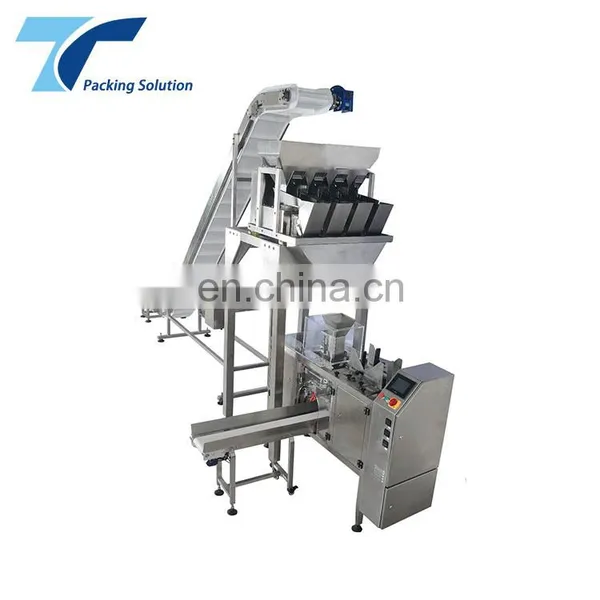

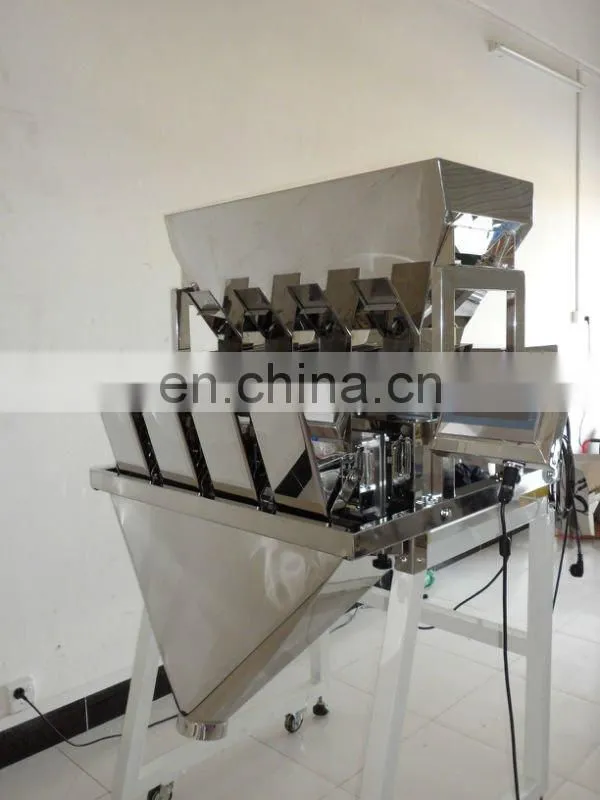

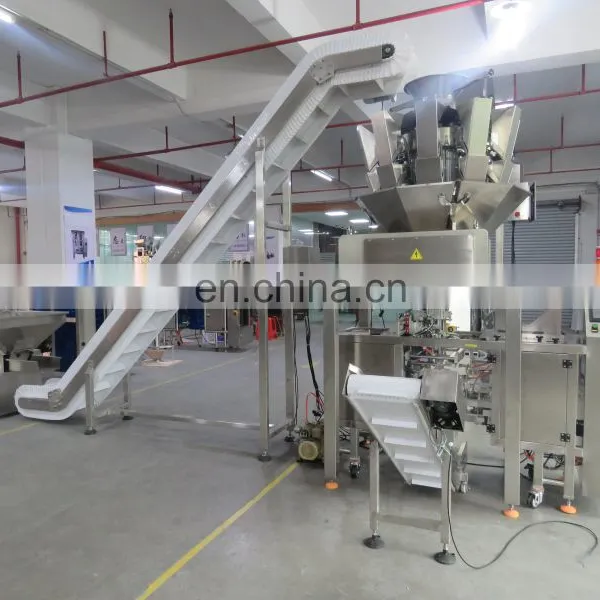

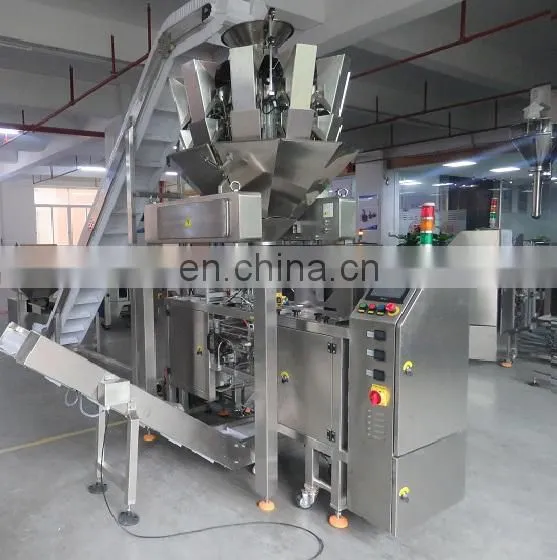

Foshan manufacturer Digital Sensors Automatic Granule Weighing Packing Machine

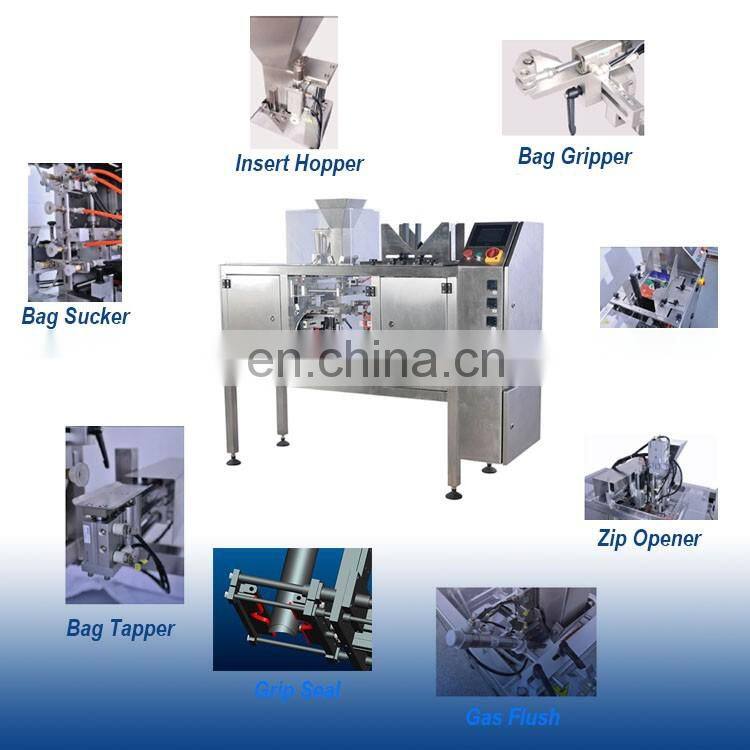

Pouches are individually removed from the cartridge with a unique combination of vacuum and pneumatic actuators. They are rotated to the fill area and opened.
TRANSITION CHUTE
doubling as a timing bucket. product enters the transition chute while the bag is being opened below. Upon pouch detection the chute enters the bag and opens its gate. Product is dispensed immediately, without spillage and protecting the seal from contamination. Difficult product that easily bridges is dispensed into the pouch directly from the filler, through the "open-gate''
FILLING
During filling, pouches are held in place with our “posi-hold” gripper system. This allows for heavy weights and shock loads
without disturbing bag Position
SEALING
Digitally controlled ribbed or flat constant heat seal bars give a integral attractive seal. Pouches are sealed ''in place" eliminating wrinkles, folded corners and non aligned seals
MECHINE CONTROLS
System controls are fully solid state. utilizing a commercial Programmable Logic Controller [PLC] and pneumatics. Indicator lights signal all cycle processes for easy monitoring.
SPECIFICATIONS
Model No. | TOPY-MDP1 | TOPY-MDP2 |
Bag Width | 85-280mm | 120-300mm |
Bag Length | 130-300mm | 130-400mm |
Bag Type | Stand-up bag, pillow bag | Stand-up bag, pillow bag |
Power Supply | 220V, 50HZ | 220V, 50HZ |
Air Consumption | 7.0 CFM@80 PSI | 7.0 CFM@80 PSI |
Pneumatic Parts | PIAB Vacuum Generator,Pneumatics component Airtac from Taiwan | PIAB Vacuum Generator,Pneumatics component Airtac from Taiwan |
Application:
It's suitable for weighing slice, roll or regular shape products such as sugar, salt, seed, rice, sesame, glutamate, milk powder, coffee powder and seasoning powder, etc.
Main Features:
*High precision digital load cell (HBM load cell is optional)
*Color touch screen (Mouse, SD card and memory card are compatible)
*Multilanguage choice (Translation is needed for some specific language)
*Different authority management
Special Features:
*Weighing mix different products at one discharge
*Parameters can be freely adjusted during running condition
*New generation design, each actuator,boards can exchange with each other.
*Self-diagnose function on the electronic boards
Specification:
Model | TOPY-VM4N25 |
Range of single bag weight | 10-2000g |
AV SNGL bag ERR / Weighing Accuracy | 0.2-2g |
Max weighing speed | 10-60 bags/min |
hopper Capacity | 3L |
Control system | PLC |
Preset Programs | 10 |
Max. Mix-Products | 4 |
Operation Panel | 7 inch touch screen |
Voltage/Power/Frequency/Rating Current | AC220V ±10% 50Hz(60Hz) |
Packing Dimension (mm) | 1010(L)*960(W)*1207(H) |
Packing Weight | 250KG |
Weighing Packing Machine Automatic

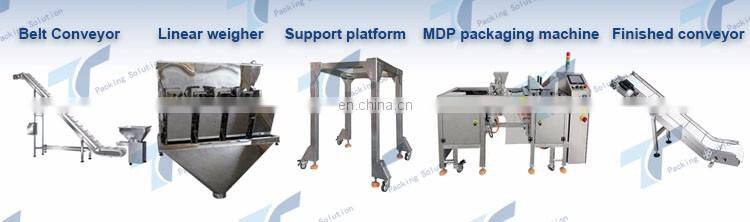

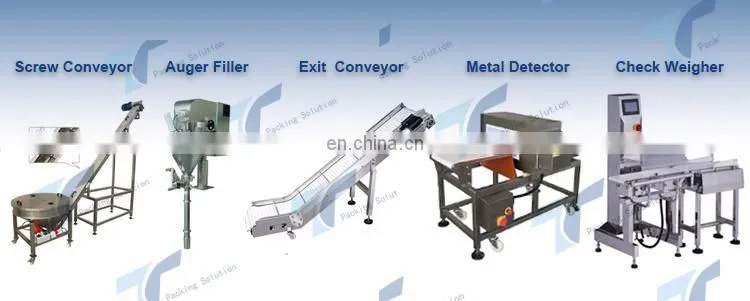

Related Auxiliary Machines
Weighing Packing Machine Automatic
Weighing Packing Machine Automatic
Weighing Packing Machine Automatic
Weighing Packing Machine Automatic
Weighing Packing Machine Automatic
Weighing Packing Machine Automatic
Q1, Do you need the packing machines for premade bags or bags from roll of film?
For roll film we advise VFFS packing machines VP420, VP500, VP620, VP800, VPL1000 and VPL1200. For premade bags we advise doypack machine working on bags with or without ziplock
Q2, What products do you pack, solid, granule, flake, powder or liquid?
For liquid we advise piston or motor pump, for powders we advise auger filler or volumetric cup filler, for solid, flake and granules we advise multihead weigher, linear weigher or volumetric cup filler.
Q3, What are the bag sizes and target weight in each pack?
For VFFS packing machine the minimum film width we work on is 120mm, the maximum film width we work on is 1200mm.
For doypack machine the bag width working on is minimum 70mm and maximum bag width 4550mm.
Q4, Does your company work on OEM?
Yes, we have a professional design and technical team to do the customization
Q5, What’s the delivery time after the order is placed?
We arrange the shipment in 30-35days for standard machine. It takes us more days for customized machines
Q6, How about the warranty?
The warranty is 24 months and we provide lifelong maintenance.
Q7, What can you provide after service?
We provide machine running video, instruction manual in English, spare parts and tools for installation. Also our engineers are available to clients’ factory and technical training.
