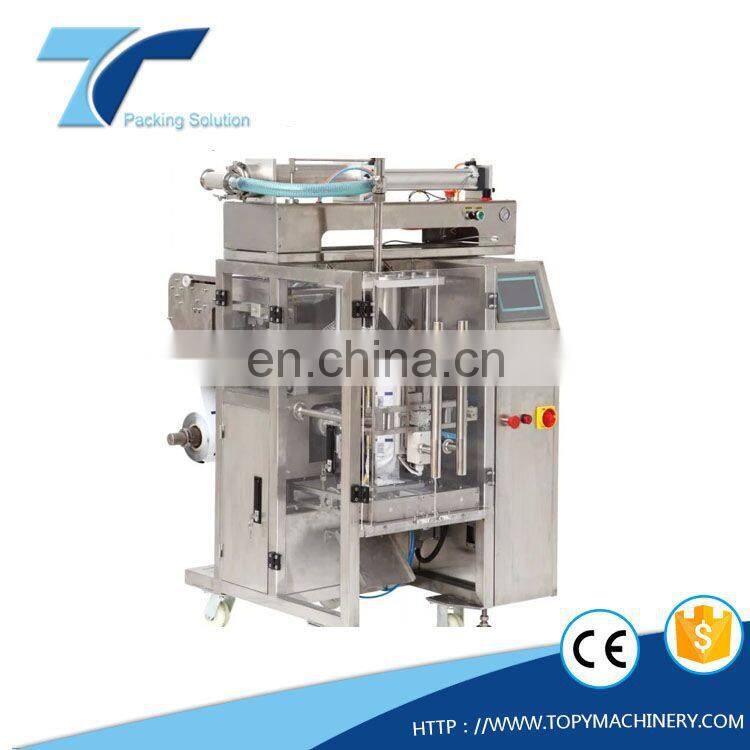

PLC Control and Screen Operation Plastic Bag Milk Pack Packing Machine
plastic bag milk packing machine

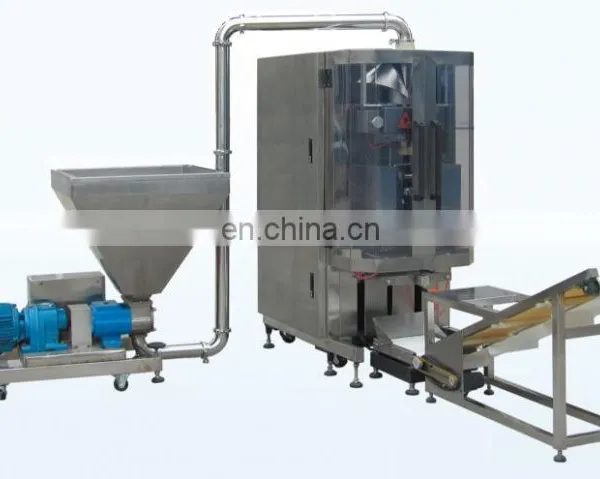

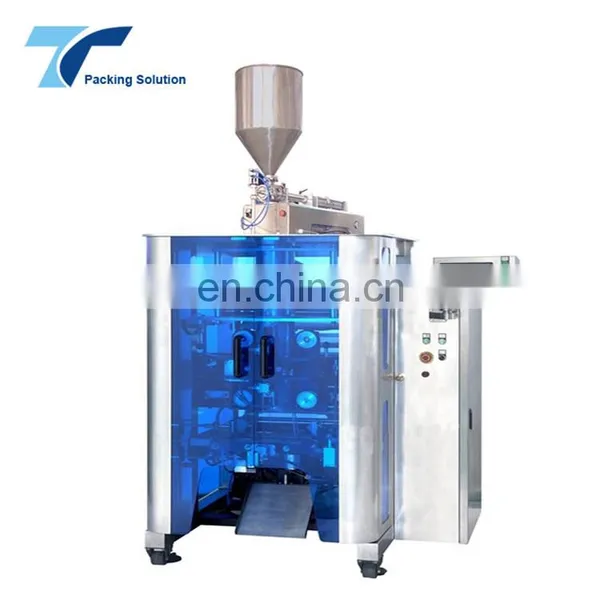

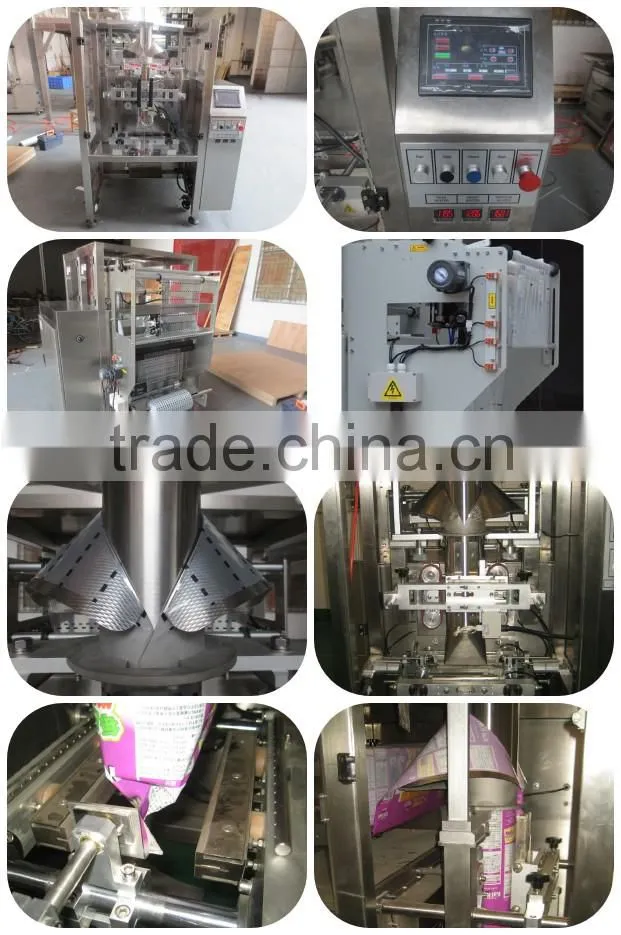

Vertical packaging Machine
Specifications
Model |
TOPY-VP500 |
TOPY-VP620 |
TOPY-VP800 |
Bag Size |
(L)100-300mm (W)80-240mm* |
(L)100-380mm* (W)100-300mm |
(L) 50-380mm* (W)110-400mm |
Bag Speed |
15- 60bags/min |
15- 60bags/min |
10-30bags/min |
Film width |
180-500mm |
220-620mm |
340-800mm |
Air consumption |
0.6Mps 0.36m3/min |
0.6Mps 0.4m3/min |
0.6Mps 0.7m3/min |
Power supply |
3.0kw, 220V 50/60HZ |
4.0kw, 220V 50/60HZ |
4.5kw, 220V 50/60HZ |
Packed Dimensions |
(L)1550*(W)1160*(H)1480mm |
(L)1600*(W)1260*(H)1680mm |
(L)1600*(W)1500*(H)2050mm |
plastic bag milk packing machine
Item |
TOPY-60L |
TOPY -120L |
TOPY-250L |
TOPY-500L |
TOPY-1000L |
TOPY-2500L |
TOPY-5000L |
Filling Volume |
5-60ml |
10-120 ml |
25-250 ml |
50-500 ml |
100-1000 ml |
200-2500 ml |
500-5000 ml |
Ideal Filling Volume |
25-60ml |
50-120ml |
100-250ml |
200-500ml |
400-1000ml |
800-2500ml |
2000-5000ml |
Working Gas Pressure |
4-6kg/cm² |
4-6kg/cm² |
4-6kg/cm² |
5-8kg/cm² |
5-8kg/cm² |
5-8kg/cm² |
5-8kg/cm² |
Speed |
0-30 bottle/min |
0-30 bottle/min |
0-30 bottle/min |
0-30 bottle/min |
0-30 bottle/min |
0-25 bottle/min |
0-15 bottle/min |
Filling Precision |
1%-2% |
1%-2% |
1%-2% |
1%-2% |
1%-2% |
1%-2% |
1%-2% |
Net Weight |
16kg |
18kg |
23kg |
32kg |
39kg |
47kg |
72kg |

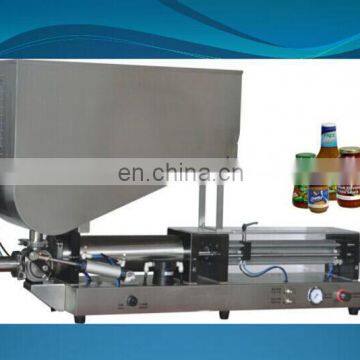

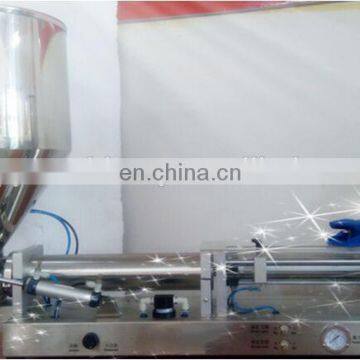

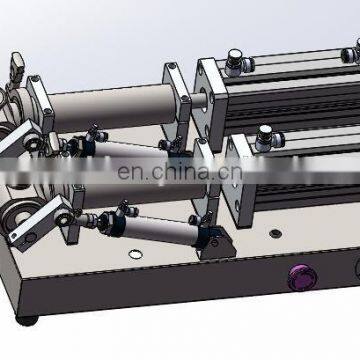

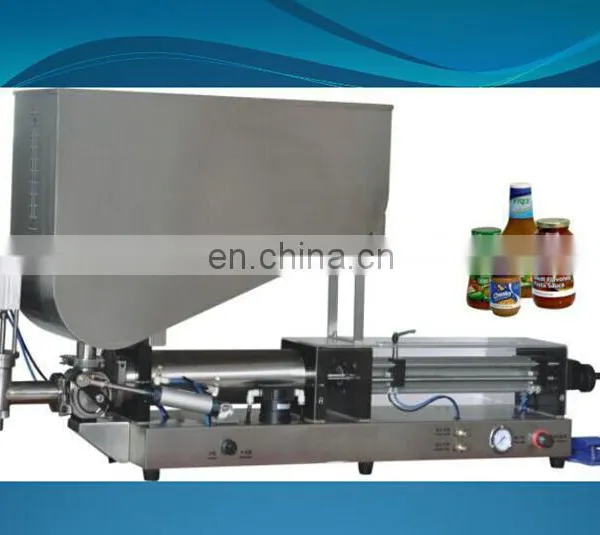

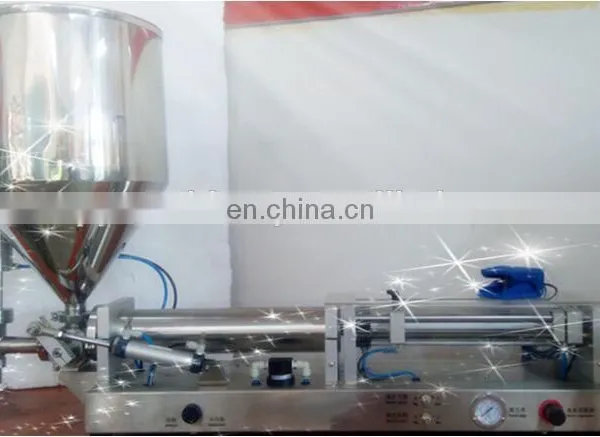

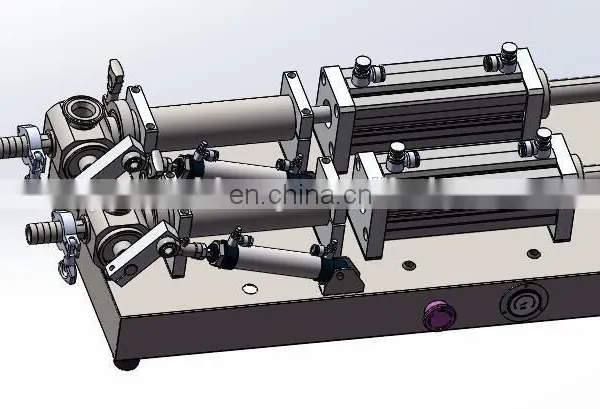

For liquid we advise piston pump with closure at the end of the discharge funnel, which is to avoid the
liquid leakage after filling

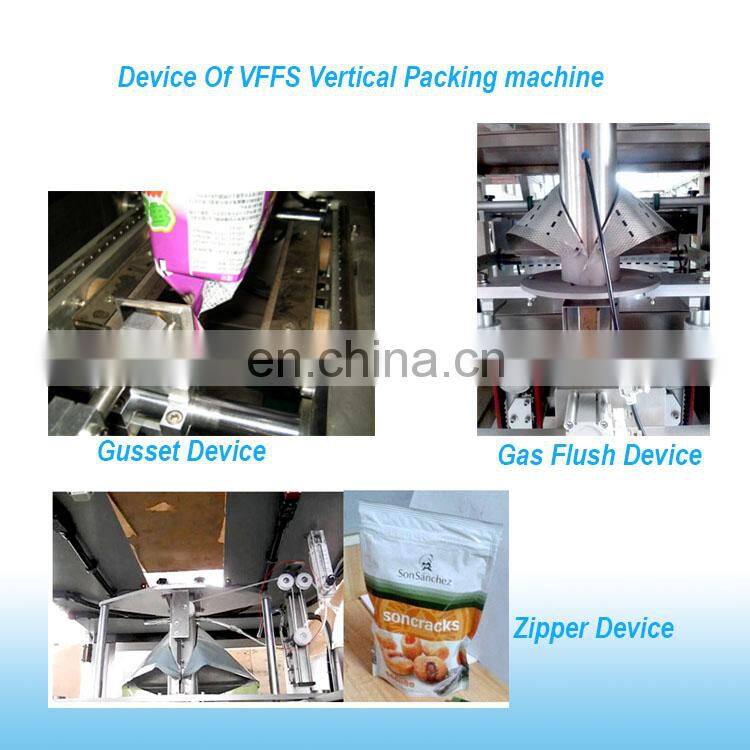

For liquid with bubbles we advise gas flush to remove the bubbles/foam after filling, this way to make sure
the sealing is good enough.
plastic bag milk packing machine
Related Products
plastic bag milk packing machine
plastic bag milk packing machine
plastic bag milk packing machine
plastic bag milk packing machine
plastic bag milk packing machine
plastic bag milk packing machine
Q1, Do you need the packing machines for premade bags or bags from roll of film?

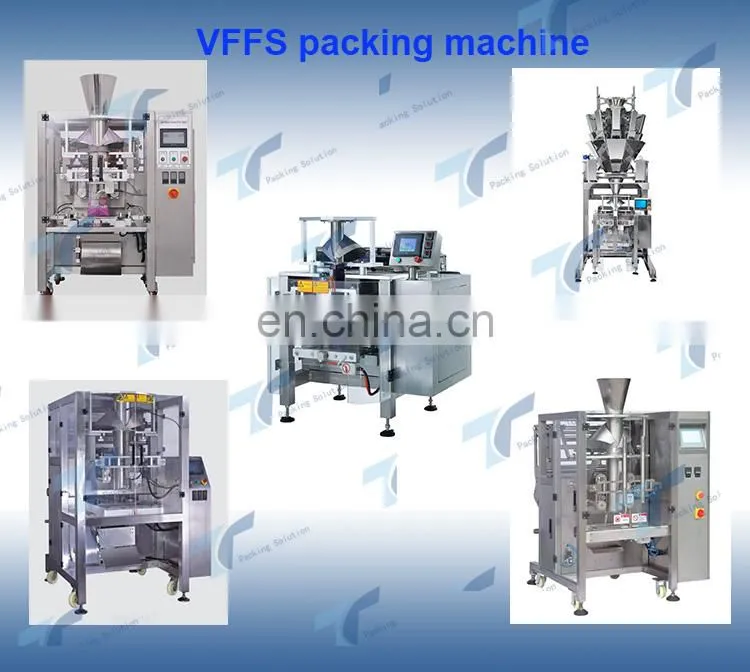

For roll film we advise VFFS packing machines VP420, VP500, VP620, VP800, VPL1000 and VPL1200.
For premade bags we advise doypack machine working on bags with or without ziplock
Q2, What products do you pack, solid, granule, flake, powder or liquid?
For liquid we advise piston or motor pump, for powders we advise auger filler or volumetric cup filler,
for solid, flake and granules we advise multihead weigher, linear weigher or volumetric cup filler.
Q3, What are the bag sizes and target weight in each pack?
For VFFS packing machine the minimum film width we work on is 120mm, the maximum film width we
work on is 1200mm.
For doypack machine the bag width working on is minimum 70mm and maximum bag width 4550mm.
Q4, Does your company work on OEM?
Yes, we have a professional design and technical team to do the customization
Q5, What’s the delivery time after the order is placed?
We arrange the shipment in 30-35days for standard machine. It takes us more days for customized machines
Q6, How about the warranty?
The warranty is 24 months and we provide lifelong maintenance.
Q7, What can you provide after service?
We provide machine running video, instruction manual in English, spare parts and tools for installation.
Also our engineers are available to clients’ factory and technical training.
