Z-Type Bucket Elevator/ConveyorCombined with Vibratory Feeder
- 30 Piece / Pieces per Month
- Shunde Port
- T/T Credit Card
-
SUS304 Food Grade Plastic Small Food Bucket Elevator/Bucket Conveyor
-
Food Industry Slat Conveyor with Vibratory Feeder, Slat Belt Conveyor for Desiccant Sachets, Modular Acclivitous Belt Conveyor
-
small rice mill z-type mini th bucket elevator specifications machine parts
-
PLC Control and Screen Operation Plastic Bag Milk Pack Packing Machine
-
Foshan manufacturer Digital Sensors Automatic Granule Weighing Packing Machine
-
Automatic Potato Corn Wheat Powder Pouch Packing Machine for sale
Product Details
| Brand Name: | TOP Y MACHINERY | Place of Origin: | Guangdong, China | Material: | Stainless Steel |
| Certification: | CE Certificate | Dimension(L*W*H): | 2750X550X1200mm | ||
| Voltage: | 220/380V/415V/440V | Structure: | Chain Conveyor | Condition: | New |
| Power(W): | 0.75KW | Material Feature: | Oil Resistant |
Packaging Details
plywood cases
Product Description

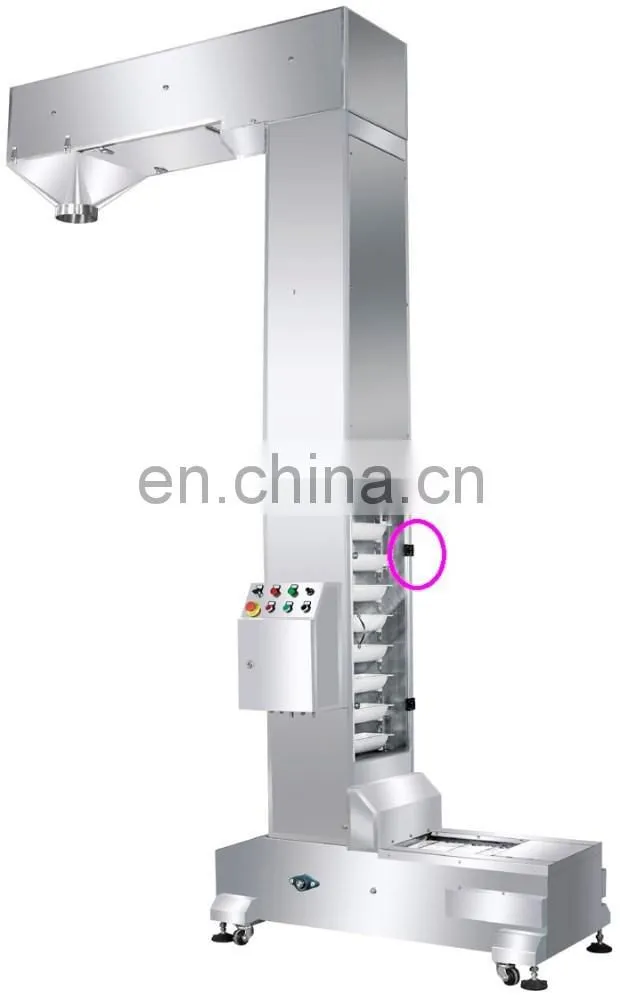

Z-Type Bucket Elevator/ConveyorCombined with Vibratory Feeder
Bucket conveyor
Bucket Elevators are very well suited for a broad range of free flowing products in the food, agriculture, pharmaceutical, cosmetic, chemical industry, .such as snack foods, frozen foods, vegetales, fruits, confectionary. Chemicals and other granules.

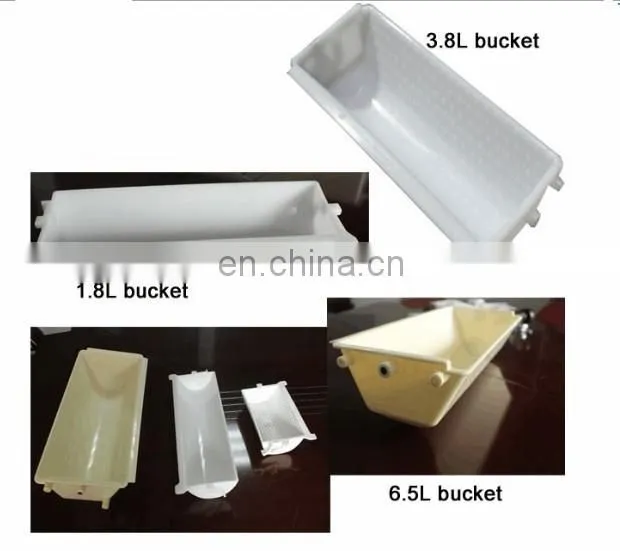

The food grade plastic buckets have two models: bucket with volume 1.8L size is 416mm*146mm*70mm and bucket with volume 3.8L--475mm*200mm*110mm

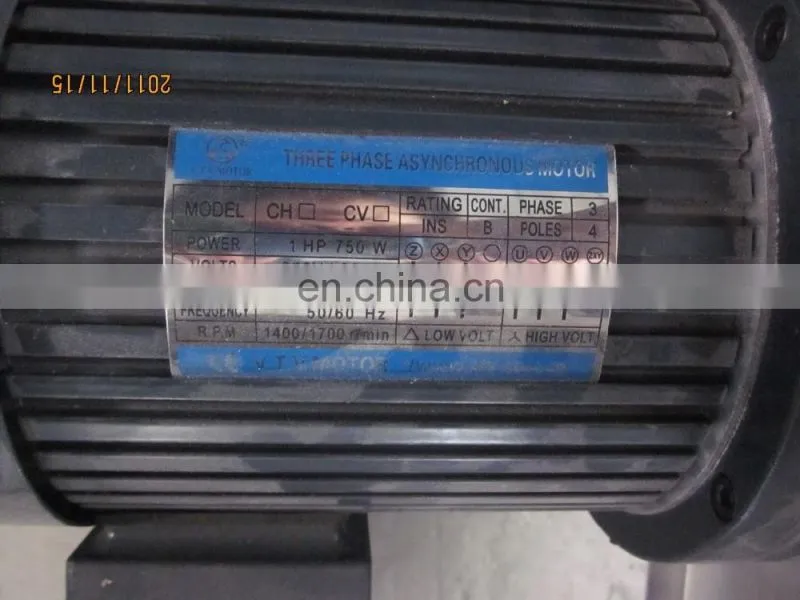

The power supply is single phase 220V or 3 phases 380V, 50HZ/60HZ, 0.75KW
The bucket elevator packed dimension is 2065*1406*1140mm and gross weight is 500kg.

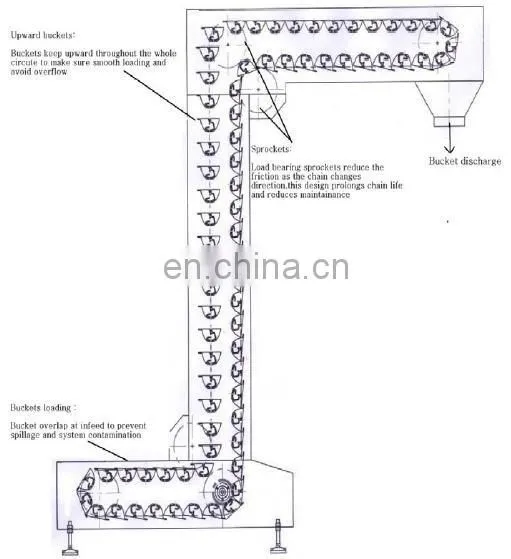

The standard bucket elevator discharge height is 3296mm, ground length is 863mm, the upper part length is 1930mm and the productivity is 3-6.5m3/h.
Video reference

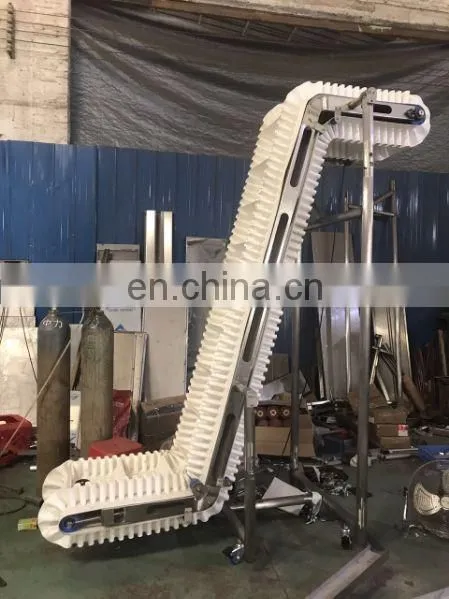

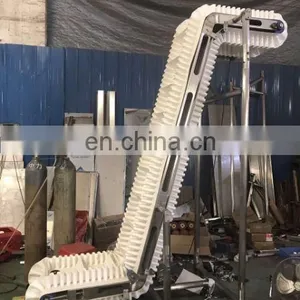

Acclivitous Belt Conveyor with Vibratory Feeder Running | |
Bucket Elevator with Vibratory Feeder Running | |
Single Bucket Elevator for Packing Machine+Volumetric Cup Filler Running | |
Auger Conveyor Installing |
|
Auger Conveyor Dismantle |
Bucket conveyor
Bucket conveyor
Bucket conveyor
Bucket conveyor
Q1, Do you need the packing machines for premade bags or bags from roll of film?
For roll film we advise VFFS packing machines VP420, VP500, VP620, VP800, VPL1000 and VPL1200. For premade bags we advise doypack machine working on bags with or without ziplock
Q2, What products do you pack, solid, granule, flake, powder or liquid?
For liquid we advise piston or motor pump, for powders we advise auger filler or volumetric cup filler, for solid, flake and granules we advise multihead weigher, linear weigher or volumetric cup filler.
Q3, What are the bag sizes and target weight in each pack?
For VFFS packing machine the minimum film width we work on is 120mm, the maximum film width we work on is 1200mm.
For doypack machine the bag width working on is minimum 70mm and maximum bag width 4550mm.
Q4, Does your company work on OEM?
Yes, we have a professional design and technical team to do the customization
Q5, What’s the delivery time after the order is placed?
We arrange the shipment in 30-35days for standard machine. It takes us more days for customized machines
Q6, How about the warranty?
The warranty is two years and we provide lifelong maintenance.
Q7, What can you provide after service?
We provide machine running video, instruction manual in English, spare parts and tools for installation. Also our engineers are available to clients’ factory and technical training.
Bucket conveyor
