Grain Used Bucket Elevator for Sale

Grain Used Bucket Elevator for Sale photo-1
Grain Used Bucket Elevator for Sale photo-2
Grain Used Bucket Elevator for Sale photo-3
Grain Used Bucket Elevator for Sale photo-4
Grain Used Bucket Elevator for Sale photo-5
Grain Used Bucket Elevator for Sale photo-6
US$ 2,500 - 2,700 MOQ: 1 set
Key Specifications
Get Latest Price
Brand Name:
TOP Y MACHINERY
Place of Origin:
Guangdong, China
Model Number:
TOPY-BE1
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name TOP Y MACHINERY
Place of Origin Guangdong, China
Model Number TOPY-BE1
Material Stainless Steel
Type Bucket Conveyor
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Dimension(L*W*H) 2065mm(L)*1406mm(W)*1140mm(H)
Voltage AC 220V Single phase
Structure Chain Conveyor
Condition New
Power(W) 0.75KW
Load Capacity 3-15CBM/Hour
Material Feature Heat Resistant

Grain Used Bucket Elevator for Sale

Grain Used Bucket Elevator for Sale



Product Description

                                    used grain bucket elevators for sale

Bucket Elevators are very well suited for a broad range of free flowing products in the food, agriculture, pharmaceutical, cosmetic, chemical industry,.such as snack foods,frozen foods,vegetables,fruits, confectionary. Chemicals and other granules.

Grain Used Bucket Elevator for SaleGrain Used Bucket Elevator for Sale

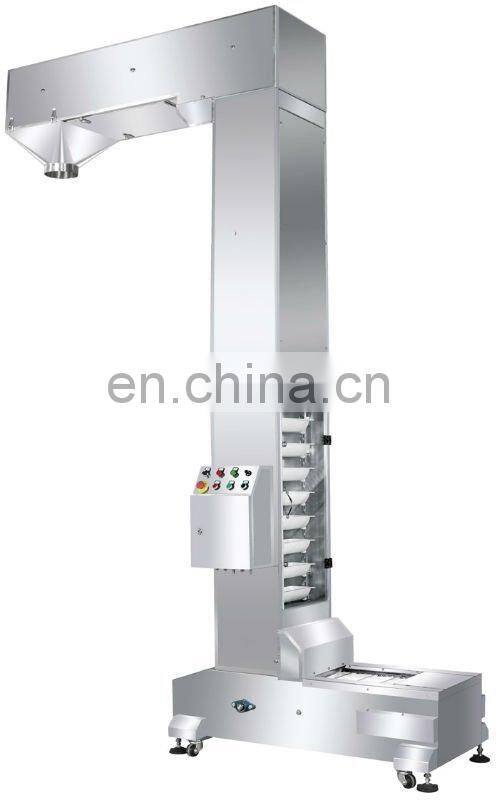

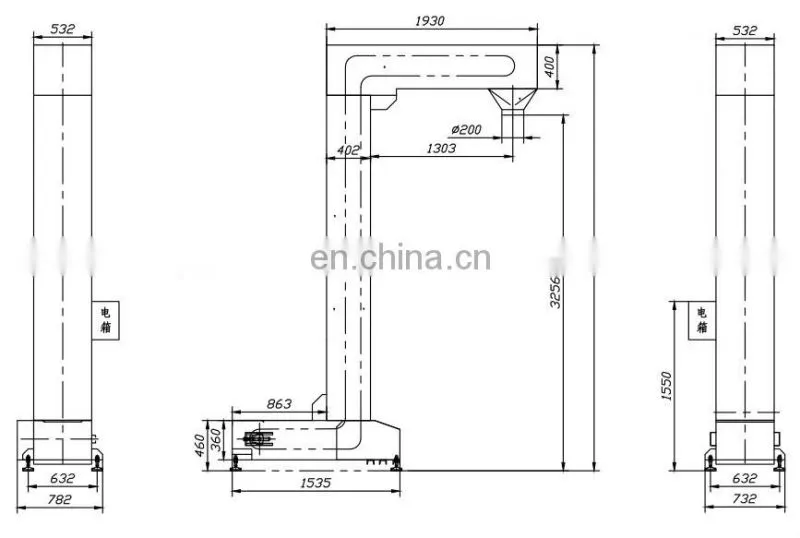

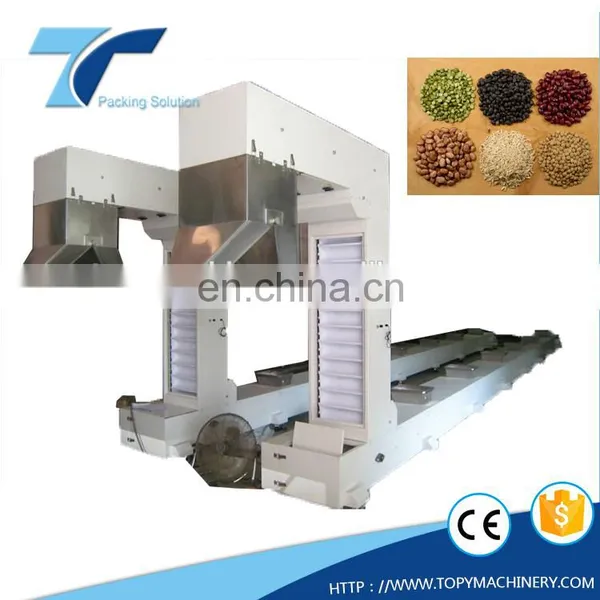

The standard discharge height is 3296mm, ground length is 863mm, the upper part length is 1930mm and the productivity is 3-6.5m3/h.



Grain Used Bucket Elevator for Sale

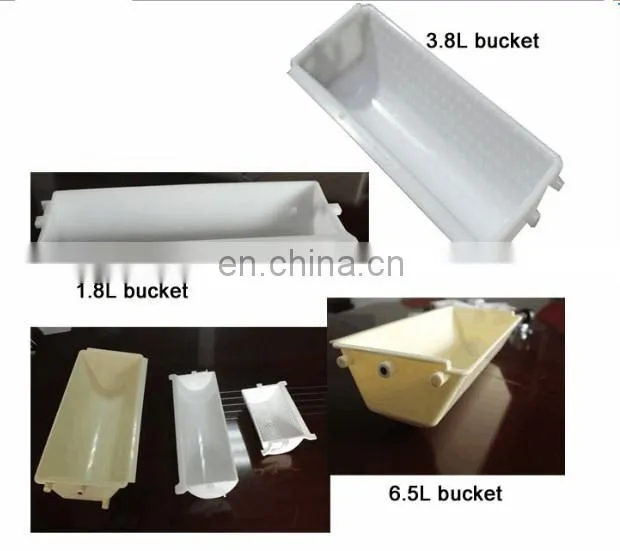

The food grade plastic buckets have two models: bucket with volume 1.8L size is 416mm*146mm*70mm, bucket with volume 3.8L--475mm*200mm*110mm and bucket with volume 6.5L-- 470mm*220mm*130mm

Grain Used Bucket Elevator for Sale

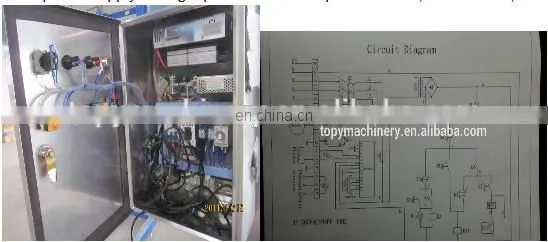

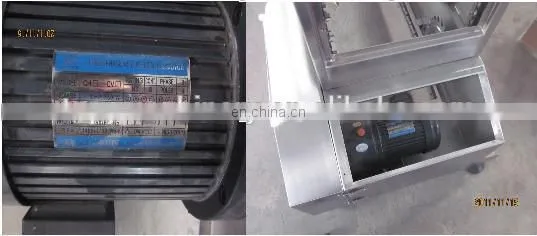

The power supply is single phase 220V or 3 phases 380V, 50HZ/60HZ, 0.75KW.

Grain Used Bucket Elevator for SaleGrain Used Bucket Elevator for Sale

Machine Model

TOPY-BE1

Bucket Volume

1.8L

Machine frame

Fully stainless steel #304

Production capacity

4-6.5m3/H

Outlet height

3296mm

Infeed length

863mm

Machine Packed Dimension

2065mm(L)*1406mm(W)*1140mm(H)

Voltage

AC 220V Single phase or AC 380V ,3 Phase.50Hz;

Power

0.75KW

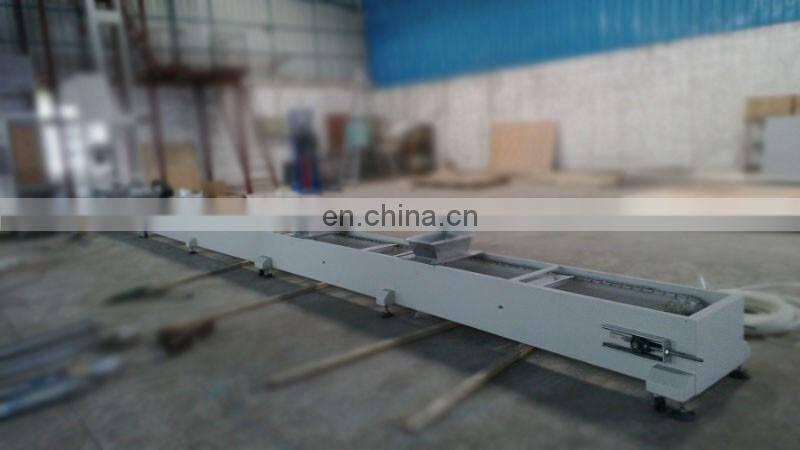

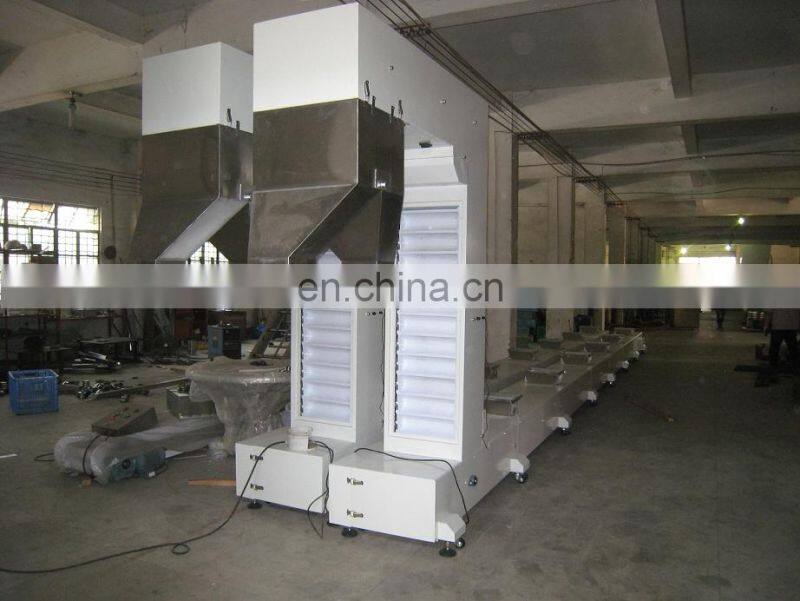

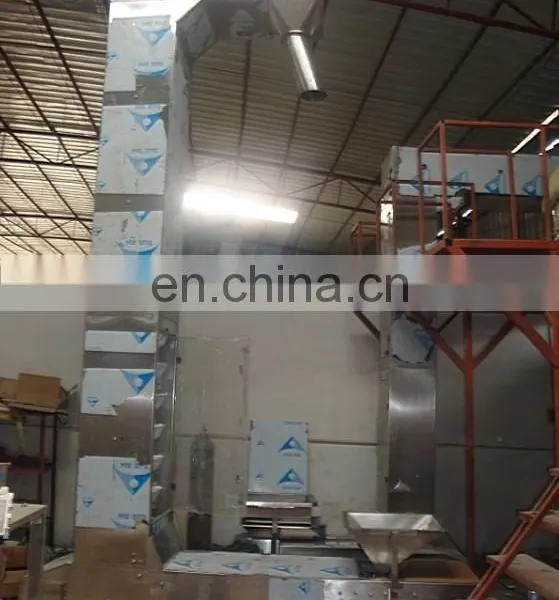

The ground and upper part length is customized according to the customers' requirements, see the photos we did pls!

Grain Used Bucket Elevator for Sale

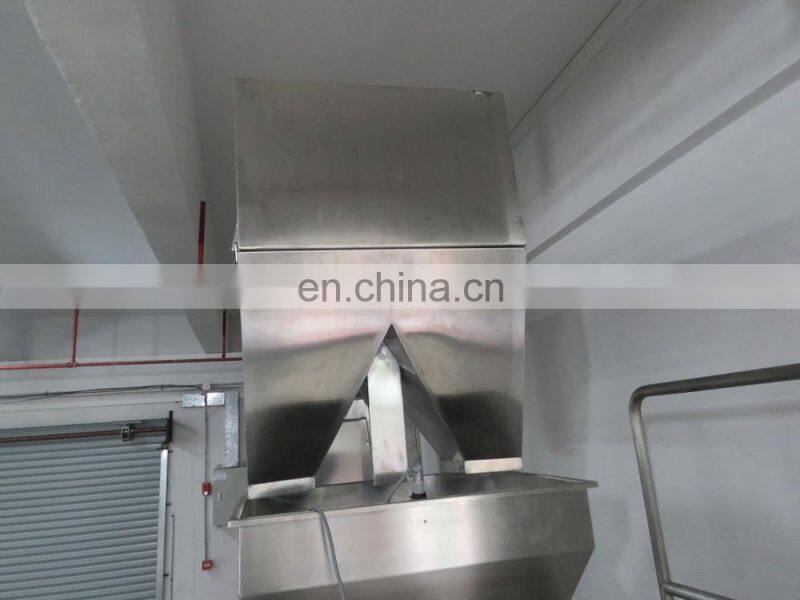

Grain Used Bucket Elevator for Sale Discharge Hopper Customized to the Machines Combined with the Production or Packing Line

Grain Used Bucket Elevator for Sale

Grain Used Bucket Elevator for Sale

Company Information

                                            used grain bucket elevators for sale

Grain Used Bucket Elevator for Sale

Grain Used Bucket Elevator for Sale

Acclivitous Belt Conveyor with Vibratory Feeder Running

https://youtu.be/qn4J5umyZ1o

Bucket Elevator with Vibratory Feeder Running

https://youtu.be/DU6AFbrFo_w

Single Bucket Elevator for Packing Machine+Volumetric Cup Filler Running

https://youtu.be/HXfgu3uNCvU

Auger Conveyor Installing

https://youtu.be/fJnGBj-uiDw

Auger Conveyor Dismantle

https://youtu.be/kh2yrNzSbiQ

production process

                                           used grain bucket elevators for sale

 Grain Used Bucket Elevator for Sale

Packaging & Shipping

                                            used grain bucket elevators for sale

Grain Used Bucket Elevator for Sale
